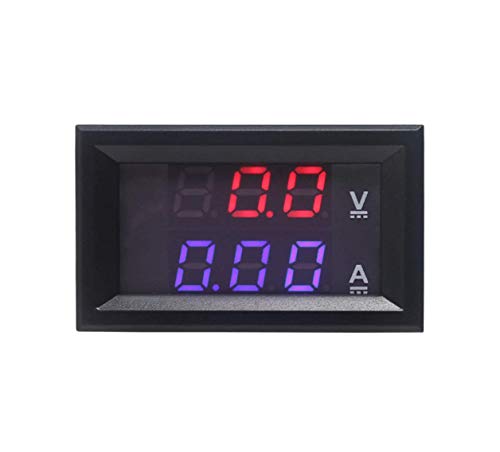

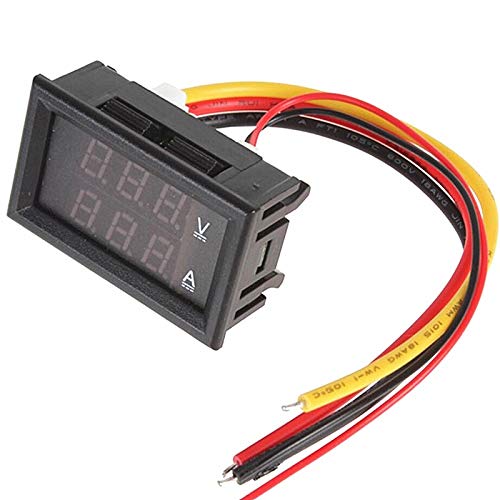

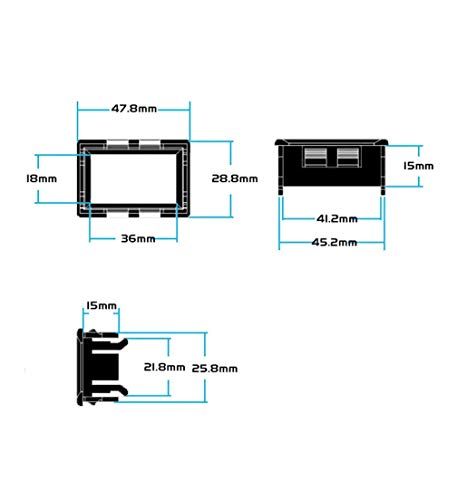

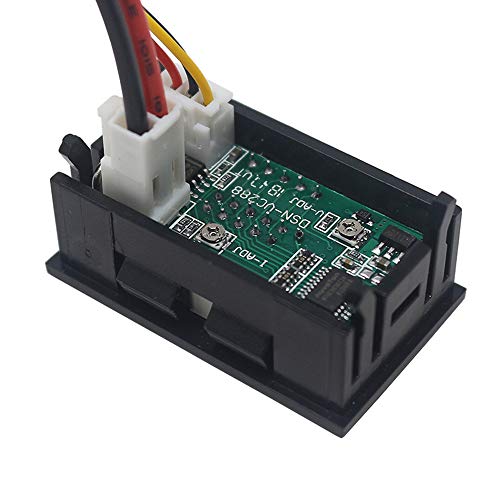

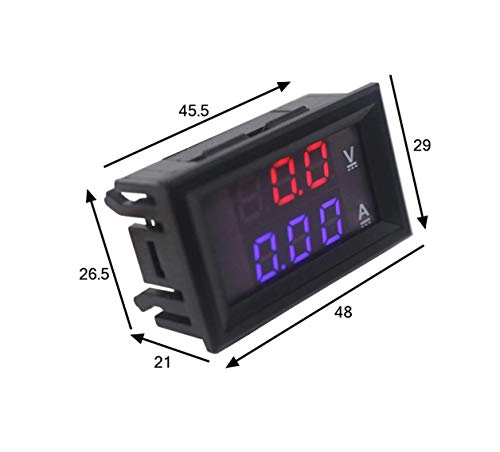

CentIoT - 0.28 inch 100A 0-100V Dual LED Voltmeter Ammeter Blue Red (100A Meter + Shunt)

Brand: CentIoT

Color: RED + BLUE

Features:

• Working voltage of Meter itself: DC 4-30V; Note: The maximum input voltage can not exceed 30V. Otherwise the meter will be burned.
• Voltage Measuring range: DC 0-100V; Voltage resolution (V): 0.1V;
• Current Measuring range: DC0-100A (shunt included); Current resolution (A): 0.01A
• Operating temperature: -10 to 65° c; Operating Humidity: 10 to 80% (non-condensing); Working pressure: 80 to 106 kPa
• Measure accuracy: 1% (±1 digit); Display:0.28" digital tube; Refresh rate: about 300mS/ times' Operation Temperature: -10°~+65°

PartNumber: 0.28-100V-VOLTMETER-AMMETER

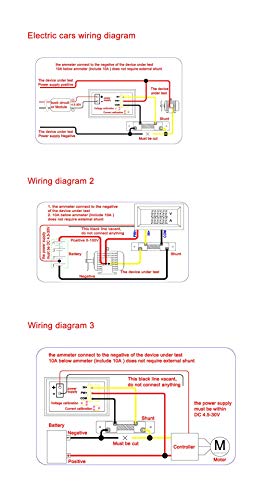

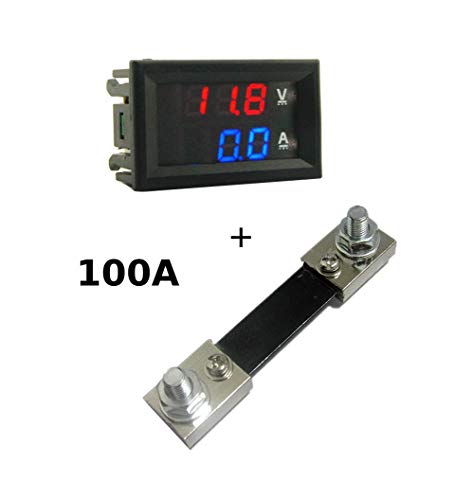

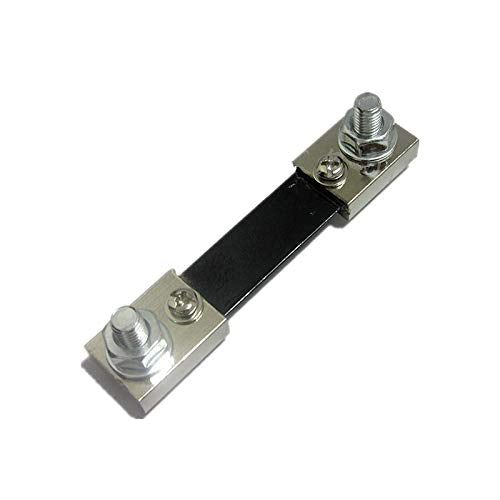

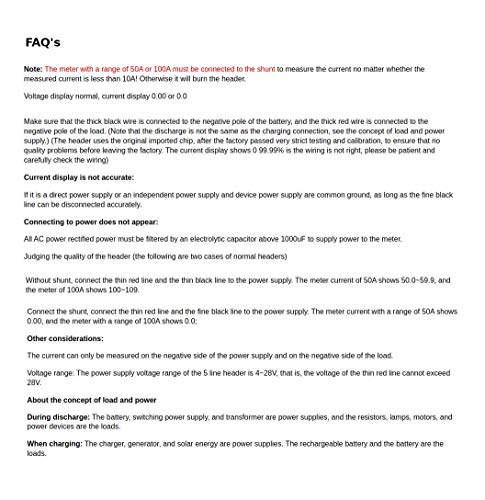

Details: Features: High precision, high reliability, suitable for high-end applications With reverse protection, then anti-burn The meter with a range of 100A must be connected to the shunt to measure the current no matter whether the measured current is less than 10A! Otherwise it will burn the header. Voltage measurement range: DC 0-100V Current measurement range: 0-10A, 0-50A, 0-100A Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail) Require external power supply; with reversed connection protection Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time With built-in shunt, has Voltage and current calibration potentiometers Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement Note: The voltage between the thin red and thin black lines must be within DC 4.5-30V The ammeter can only be connected to the negative of the device under test It is unsuitable to use this meter to test current less than 1A ,if you use it to test ampere below 1A,it will have big error Wiring: Black line (thin): vacant or buck circuit (module) negative Red line (thin): power supply+ Black line (thick): COM, common measuring Red line (thick): PW+, measuring terminal voltage input positive Yellow line (thick): IN+, current input+ (Please refer to the wiring diagrams for more details) Package Includes 1 x 50A Voltmeter + Ammeter Module 1 x 50A DC External Shunt Resistance
