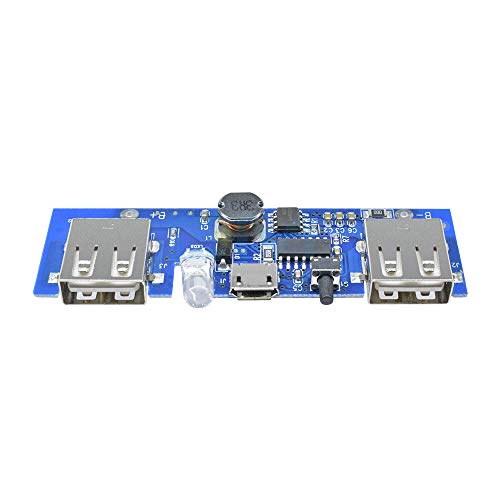

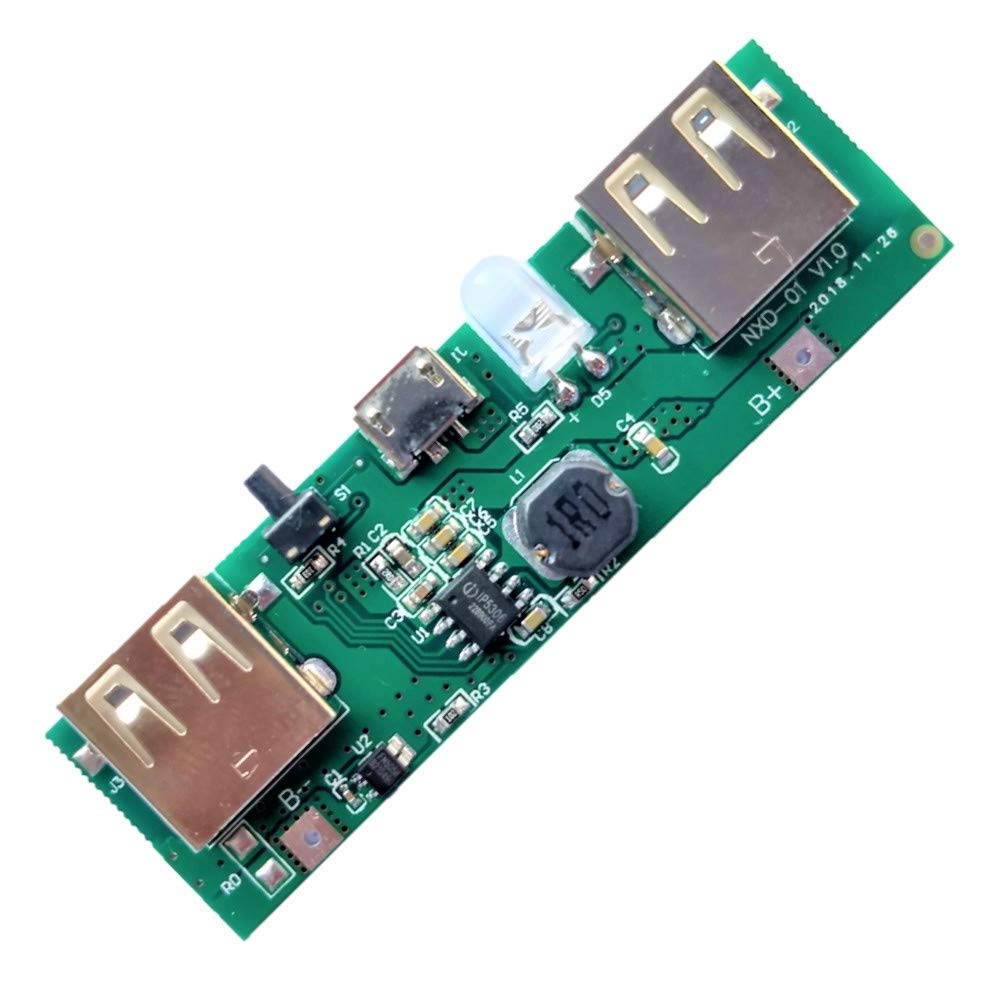

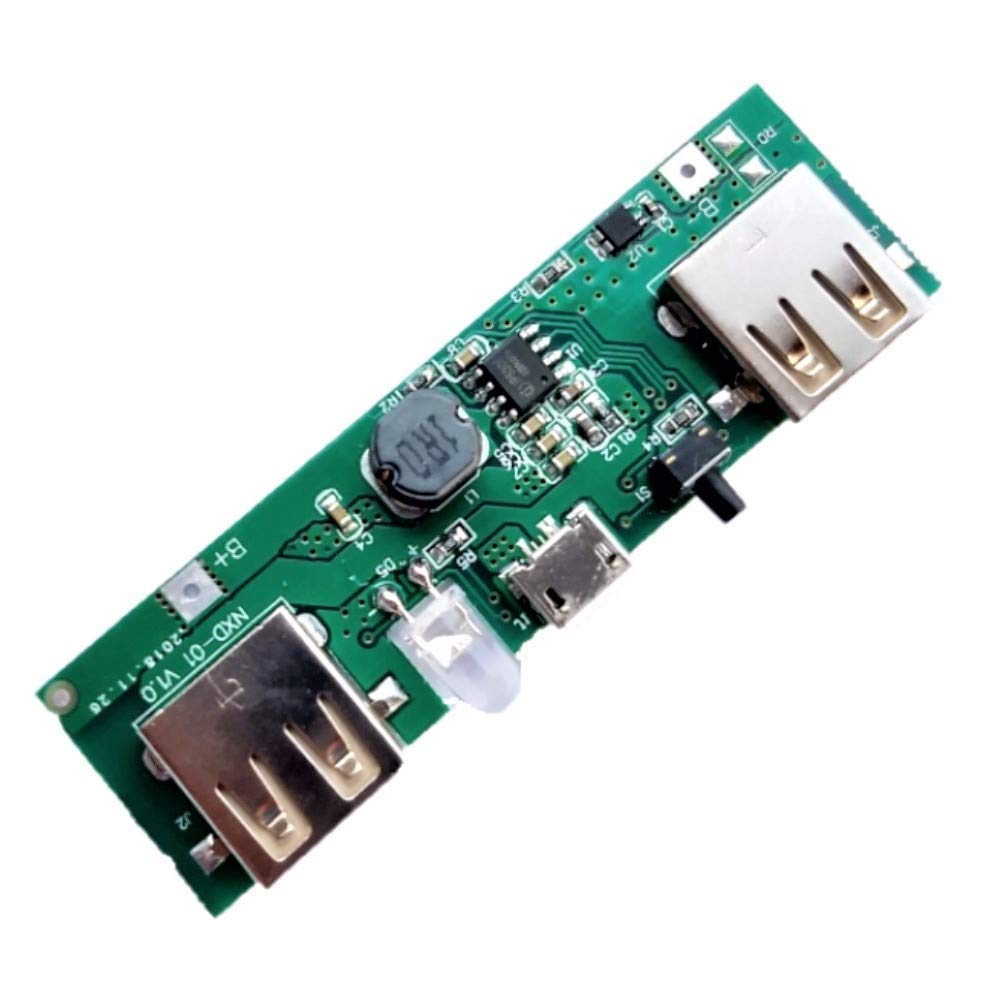

CentIoT® - Power Bank Charging Module Circuit Board | DC-DC Step Up Boost Power Supply Module | 5V 1A and 2A Dual USB

Author: DC 5V upto 3A Power Supply

Brand: CentIoT

Color: Multicolor

Features:

• Input Voltage: 5V | Input Current Rating: upto 2.5A | Input Interface:Micro USB | Can use any mobile power supply rated 5V
• Output: 5V 1A or 5V 2A | Output Interface: Dual USB output: 5V/2A

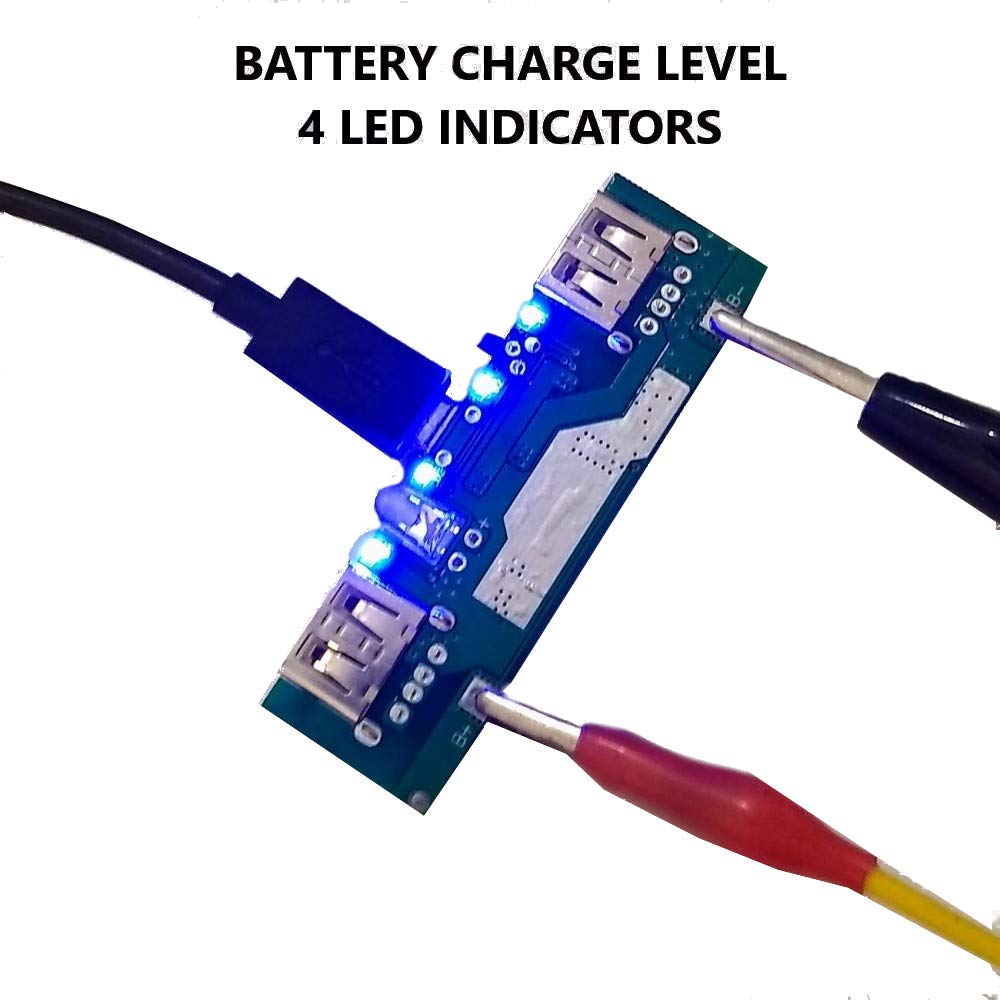

• Chipset: IP5306; 4 onboard SMD LED to display battery charge level
• Separate 5mm LED to use the power bank as a torch
• Overcharge protection | Overdischarge protection | Overcurrent protection

PartNumber: BM058-5V1A2A-POWER-BANK

Details: Specifications Input Parameter: 5V/1A Input Interface: micro USB Output Interface: dual USB output: 5V/2A Conversion Rate:90% average Charging Display: When charging, battery level 0-25% one light is on,other lights off; 25%--50%,the second light flashes,the first light is continuously on; 50%-- 75%,the third light flashes,front two lights are continuously on; 75%---100%;the fourth light flashes,front three lights are continuously on. And four lights are on charging to 100%. Main board Protection Function: Overcharge protection Overdischarge protection Overcurrent protection Module does not need battery protection board as it has inbuilt battery protection system. Installation Intstructions: 1.Circuit board B- connects power negative,B+ connects positive. Don't inversely connect,it will result in burning of board.Make sure there is insulation between power and circuit when install the battery 2. Press and hold the switch,flashlight LED light starts,then press and hold to turn it off 3. 2A output is not continuous current,it changes according to USB connecting load, automatic current output as per load 4. If battery is connected incorrectly, the reverse polarity will burn the circuit.So, make sure to check the battery polarity when connecting. Special Instruction: When connecting the board for the first time, connect the battery and then connect the micro USB charger and charge the battery to full capacity before using. It is required to prime the IC, so that it starts and shuts down accurately Note: Please allow 1-3mm error due to manual measurement. Due to the difference between different monitors,the picture may not reflect the actual color of the item. Package Includes: 1x Power Bank Charging Board

Model: BM058-5V1A2A-POWER-BANK
