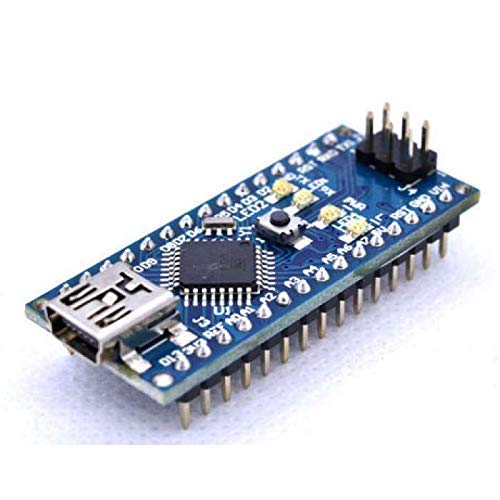

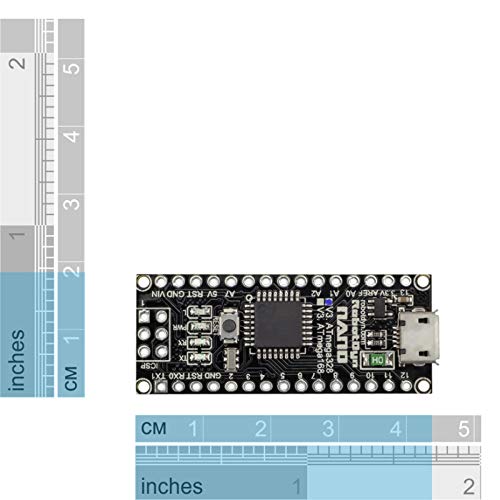

CentIoT® Nano V3 ATmega328P - Compatible with Arduino

Author: 5V USB Mini B

Brand: CentIoT

Color: Blue

Features:

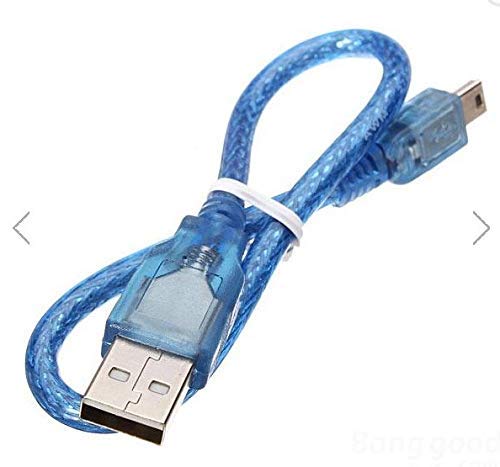

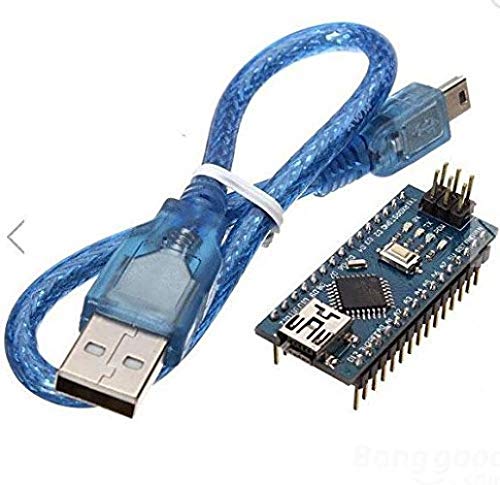

• Soldered Nano v3.0 atmega328 compatible, Nano Cable USB Mini B to USB A (cable colour might change from the one shown in picture)

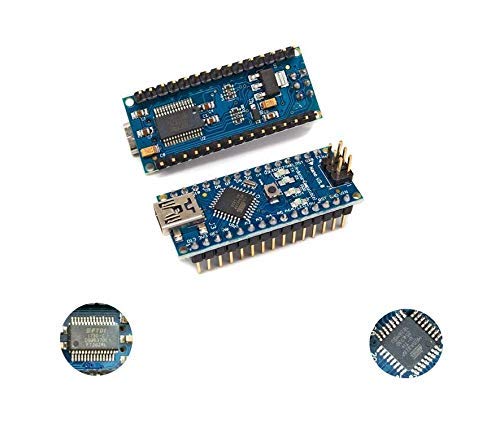

• Microcontroller: Atmel ATmega328P; FTDI FT232rl USB to serial chip
• Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V
• Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA

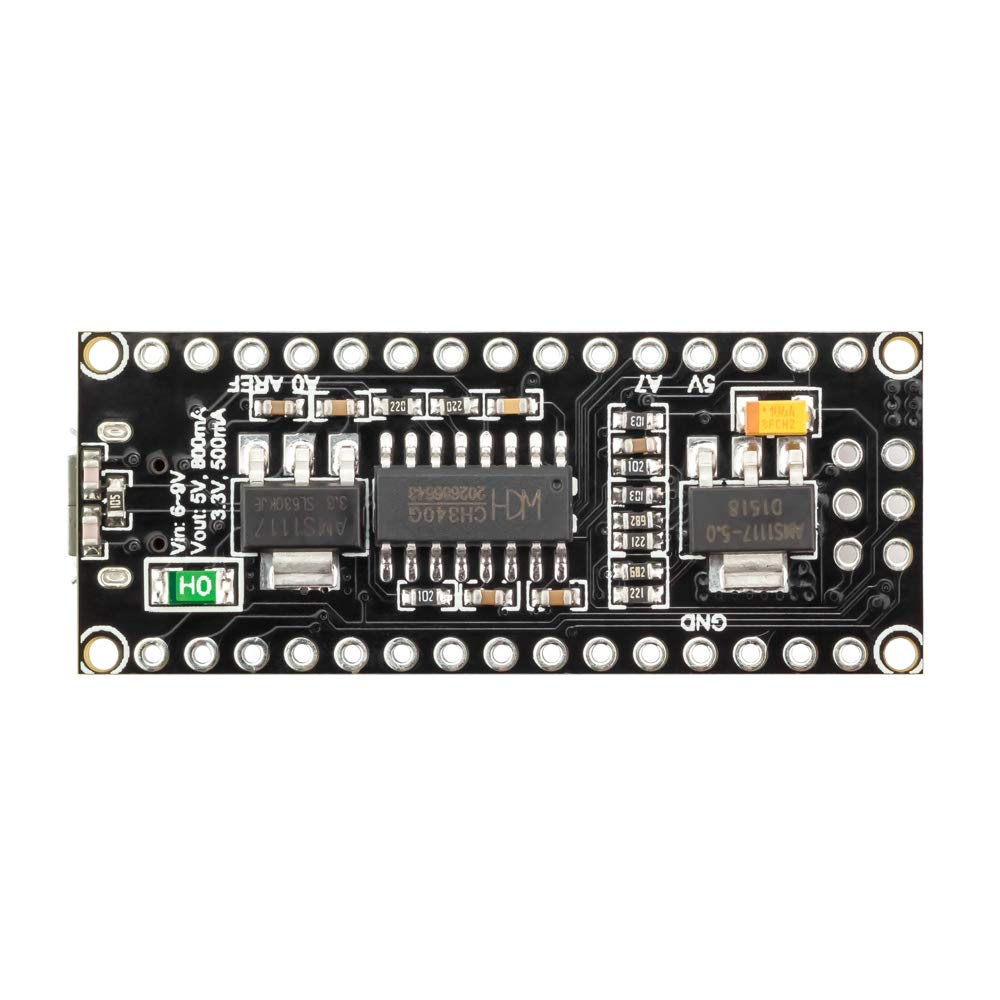

• Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz USB to Serial Converter: CH340

PartNumber: AR010

Details: ATmega328P Nano V3 Controller Board Compatible Arduin Improved Version, this developement uses USB to Serial Converter Chip CH340, Please install FTDI FT232rl driver if the board is not recognized in Arduin IDE

Model: CIOT-AR010-NANO-SOL-MINI
