Description
Brand: CentIoT
Features:

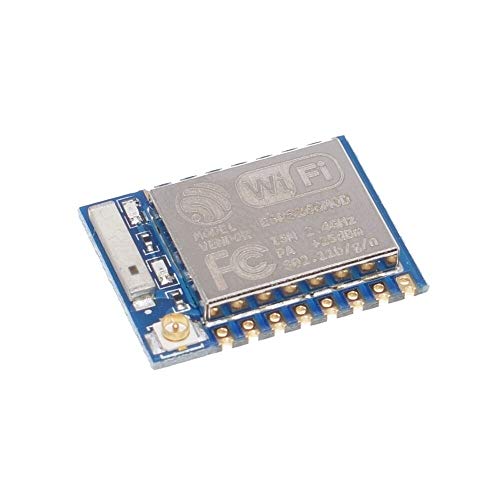

- Model: ESP-07 ESP8266; ISM: 2.4GHz PA +25dBm 802.11b/g/n
- Operating Voltage3.3V
- Device: ESP8266MOD Frequency: (ISM): 2.4GHz Power: +25dBm Supported Wifi: 802.11 b/g/n Operating voltage: 3.3V
- Min Current (Sleep): 10mA Max current (connected to 802.11b network): 215mA
- Compatible with Ardino, MicroPython; Default firmware: lastest MicroPython
PartNumber: ESP
Details: The development board is based on the basic and commonly adopted ESP07 module. Warnings: 1. This module requires a 3.3 volt supply for VCC, and 3.3V logic 2. It is not 5V tolant,Connect RX or TX on 5V FOR Arduino will destroy this module 3. You must use a logic level converter, or a 3.3V FOR Arduino 4. The 3.3V supply on the Arduino Uno has inadequate current capability to power this module 5. You must provide a separate, higher amp 3.3V supply(about 300mA or better)
Model: ESP
