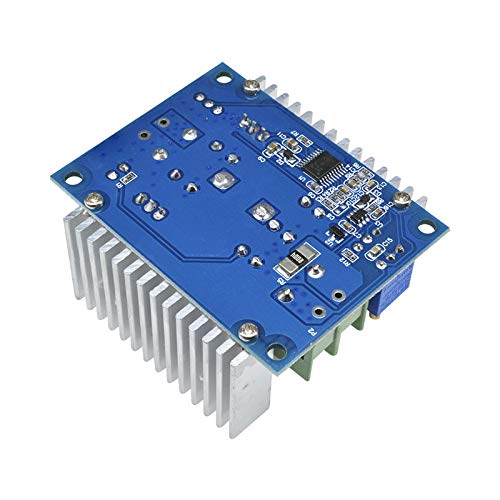

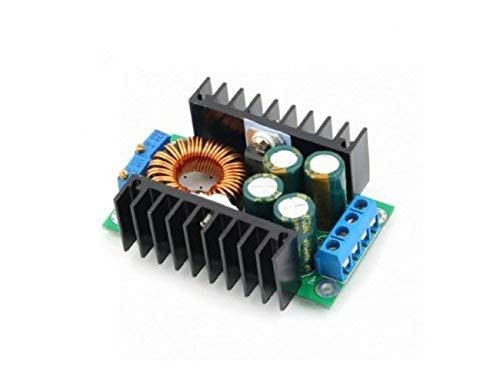

CentIoT® - DC-DC CC CV Buck Converter Step-down Module | Constant Current Constant Voltage Power Supply Module | 6-40V Input 1.2V-36V Output

Brand: CentIoT

Features:

• Input voltage: 6 V to 40 V DC (10 V to 40 V recommended)
• Output voltage: 1.2 V to 36 V DC
• Output current: 20 A (max.), 15 A (recommended)
• Efficiency: 95% (tested at 24 V to 12 V, 20 A)
• Output ripple: ≤ 50 mV; Wiring method: Terminal; Short circuit protection: Self-recovery

PartNumber: 300W-CC-CV-BUCK

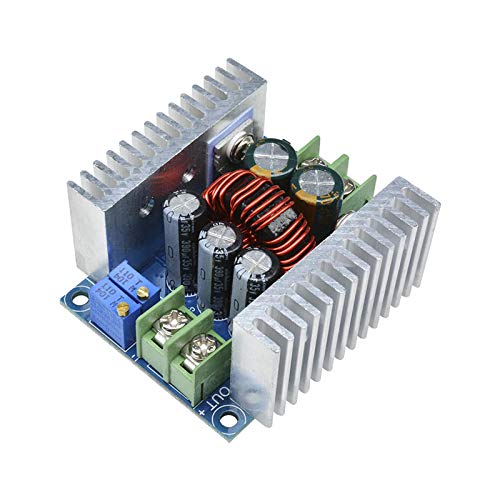

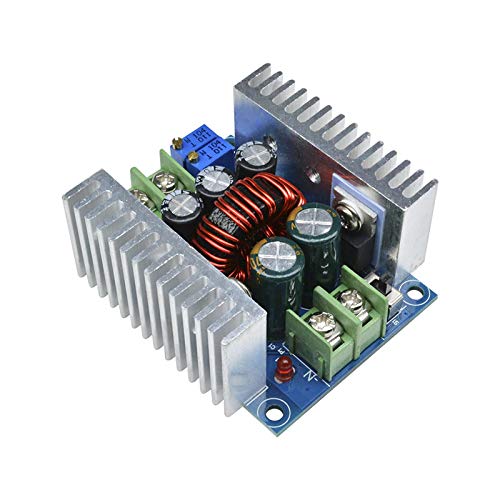

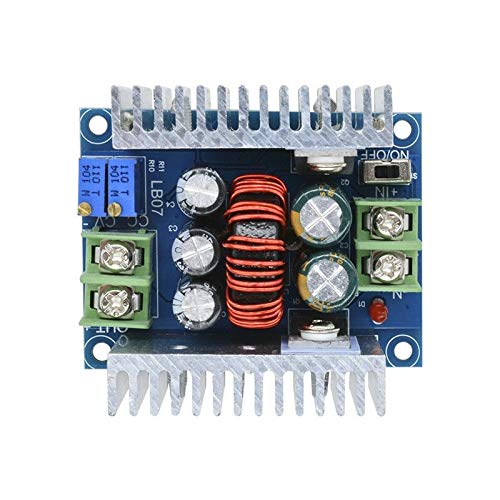

Details: DC-DC buck converter step-down module Features: Wide input voltage range from 6-40 V, the step-down converter can accurately adjust output voltage and current. Efficiency up to 96%, measured at 20 A, converting 24 V to 12 V It is designed with 75 V / 80 A current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor for stable output. Large current 30 A screw terminals The buck module has 2 heat sinks for enhanced heat dissipation. When large input and output voltage occurs, please decrease power and current. Wiring> VO+: Output positive VO-: Output negative +IN: Input positive -IN: Input negative CV: Output voltage adjustment CC: Output current adjustment EN: Enable, low voltage level shut off output; suspension, high voltage level is effective When input and output is common grounded, no-load CV output constant voltage,CC output constant current

Model: 300W-CC-CV-BUCK
