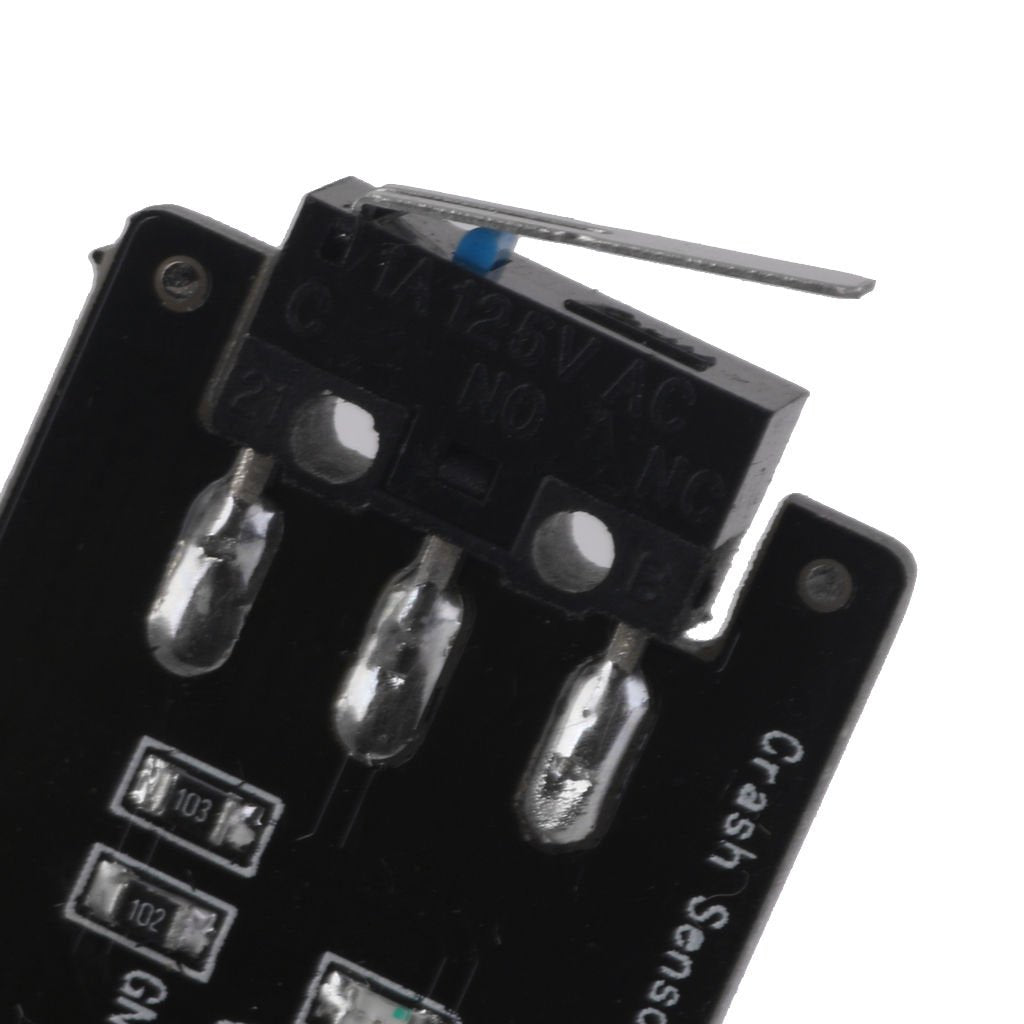

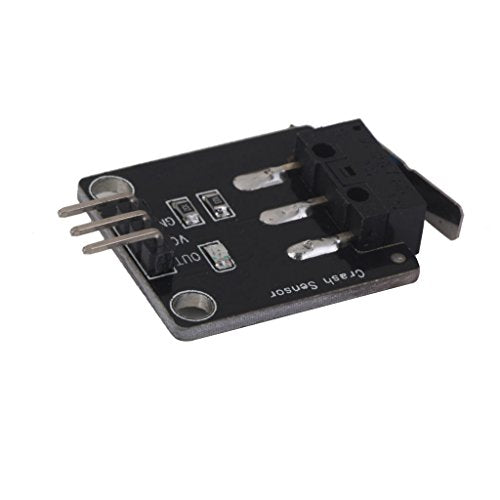

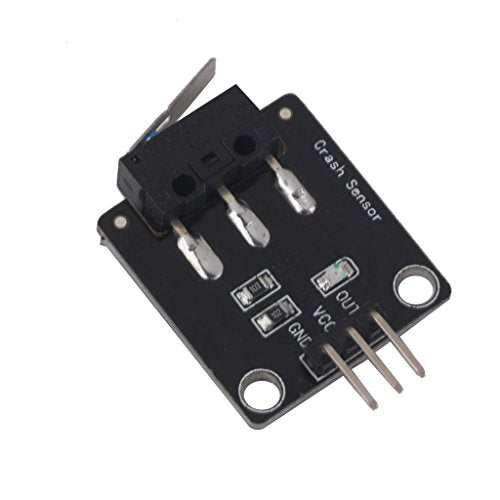

CentIoT® - Crash Collision Sensor Switch Module

Brand: CentIoT

Features:

• If collision happens upfront of where collision module is installed, module outputs low level signal; no collision, outputs high level signal.
• Module reserves M3 mounting hole, convenient for fixation on a car.
• With switch indicator light, if there is collision, light is on; no collision, light is out.

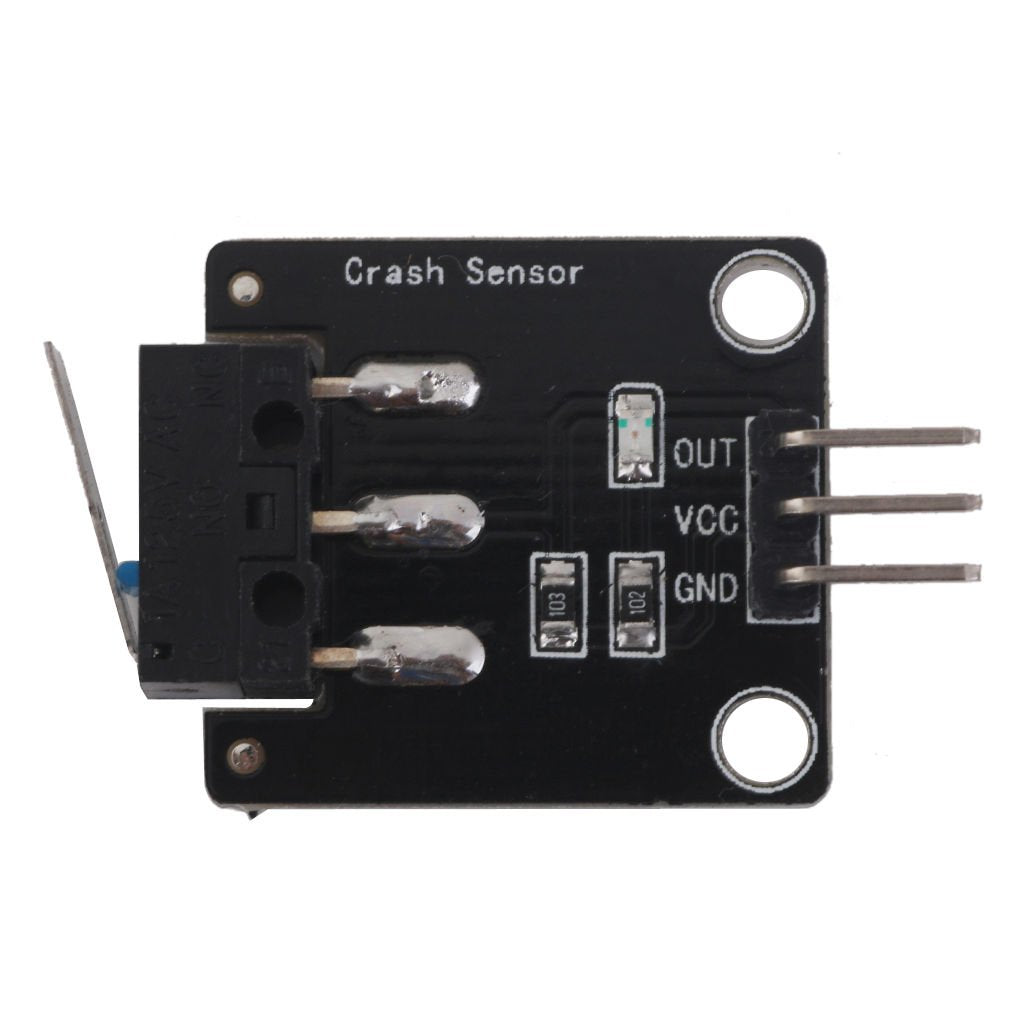

• Pin definition: 1 + 3v-12v power supply, 2 - GND, 3 S Gigh-low level output

PartNumber: CRASH

Details: Collision Sensor can detect whether any collision movement or vibration happens. It will output a low pulse signal when vibration is detected. To make the output signal more reliable and neat, we added a necessary exterior circuit to reduce the noise impact. So, normal shaking will not cause any output. The sensor has a high sensitivity, then you can use it to apply to your project, such as automatic wake-up and power-down for battery management.

Model: SE163-CRASH-BLUE
