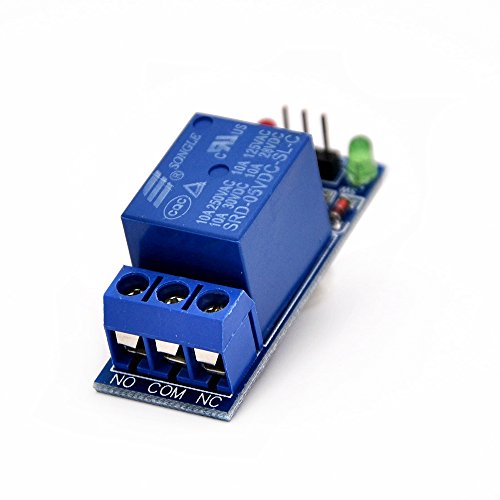

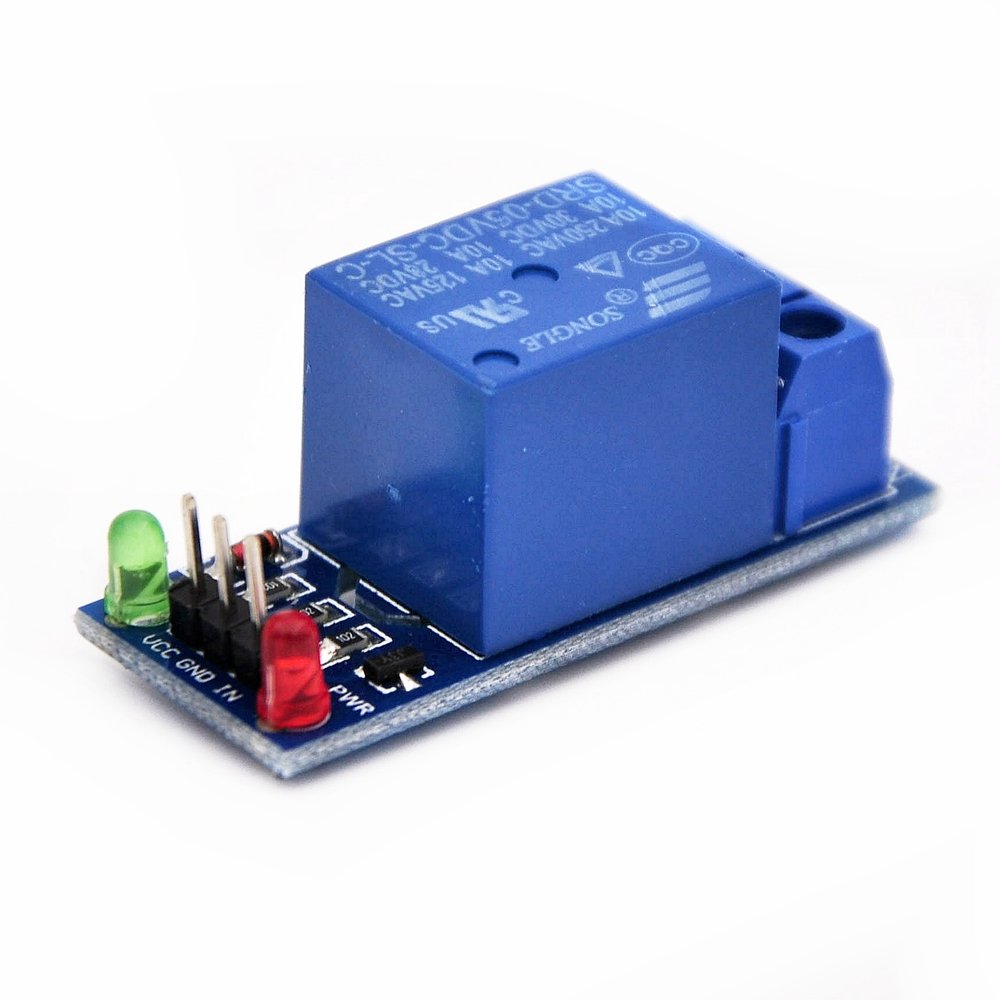

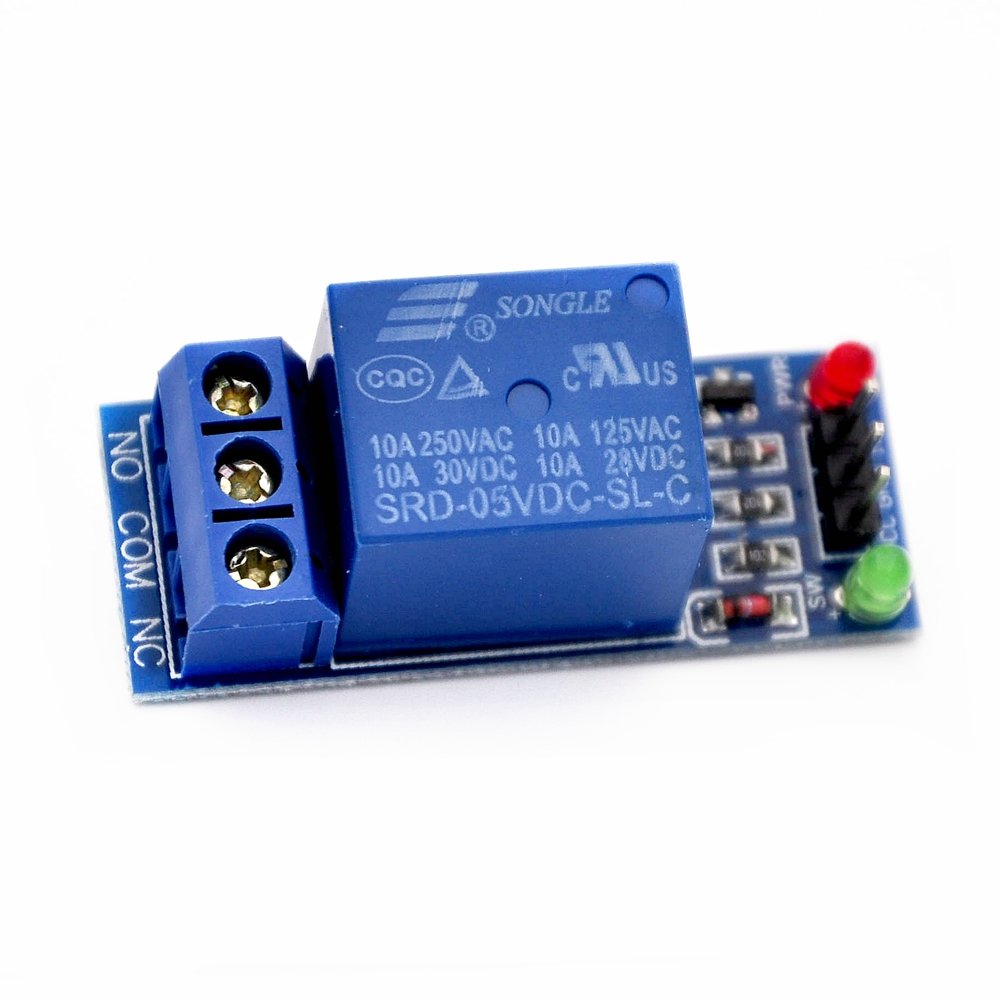

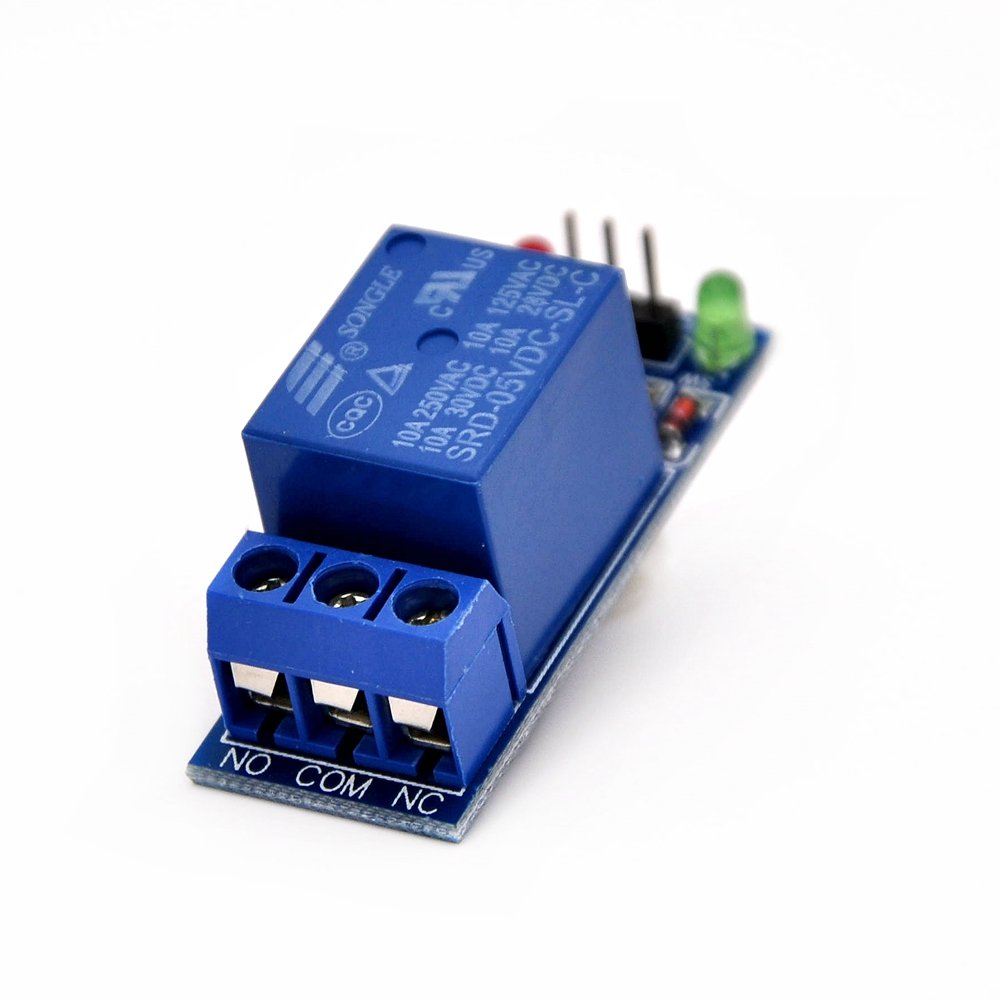

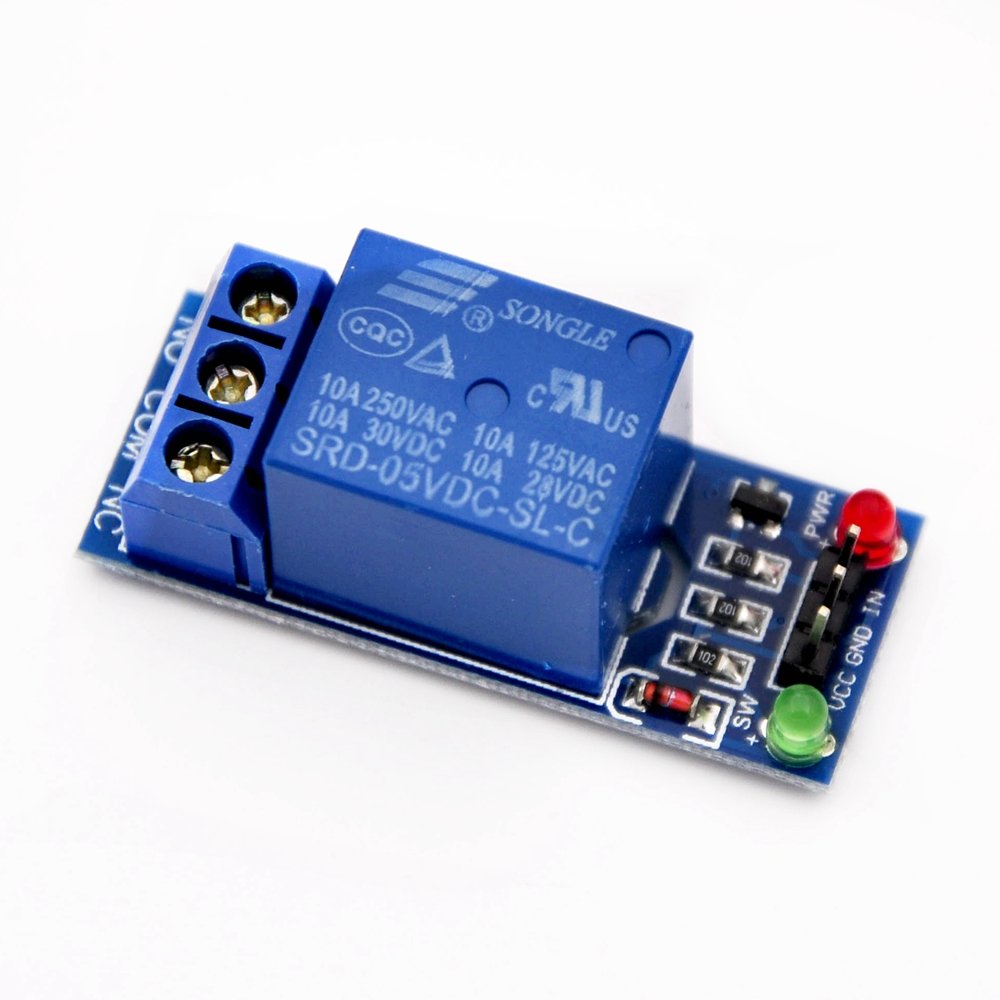

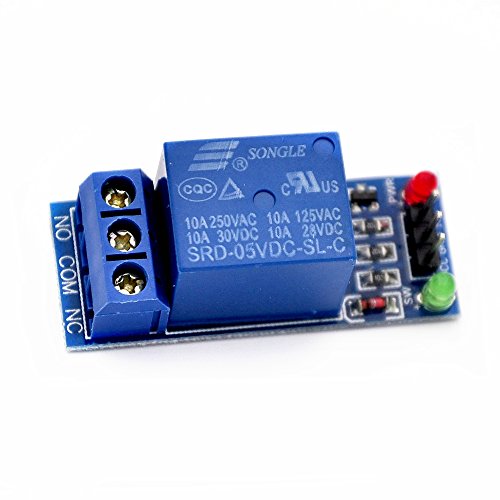

CentIoT® - 2 PCS Single Channel Relay / 1 Ch Relay Module - For SCM Household Appliance Control - 5V

Brand: CentIoT

Features:

• Operating voltage: DC 5V; Trigger current: 5mA; Normally open interface maximum load: AC 250V/10A, DC 30V/10A.
• Trigger Type: Low = ground level = logic 0 = logical false | High = supply voltage (usually Vcc or Vdd) = logic 1 = logical true.
• This Module Is In Line With International Safety Standard, Control Areas And Load Area Have The Isolation Groove; Blue Kf301 Terminal Line More Convenient.
• Uses The Quality Relay; Dc Or Ac Signal Control, Can Control 220 V Ac Load;
• Have Power And Relay Operation Instructions

Details: Description: Normally open interface maximum load: AC 250V/10A, DC 30V/10A. SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA. Fault-tolerant design, the re ...
