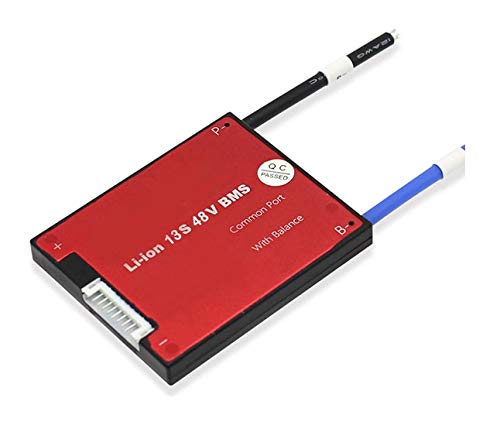

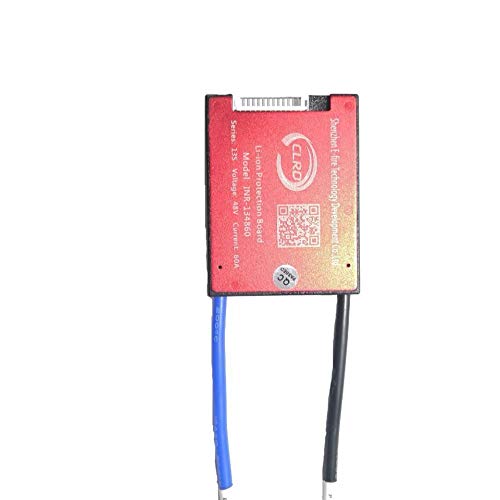

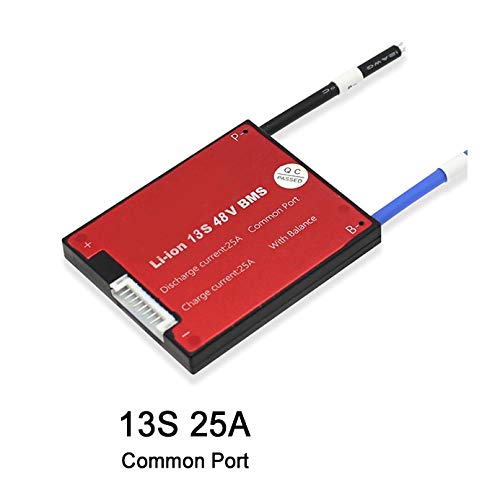

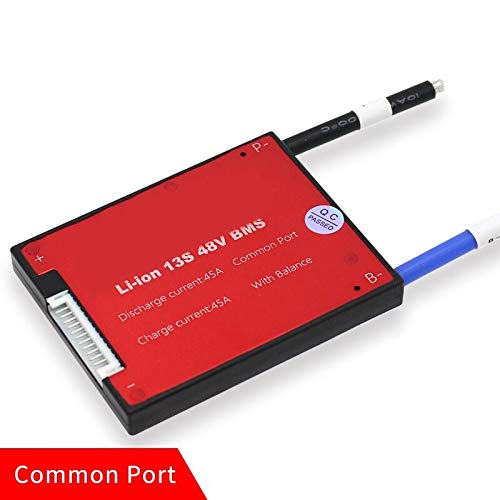

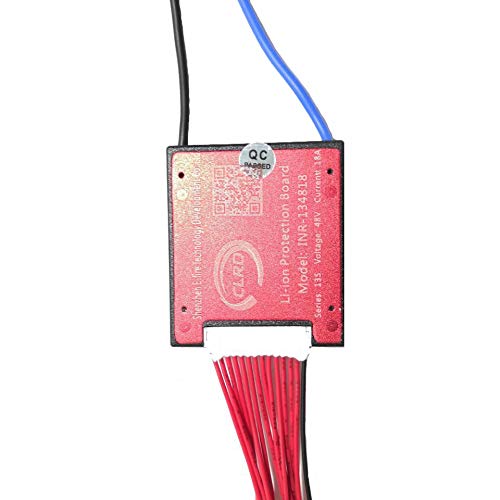

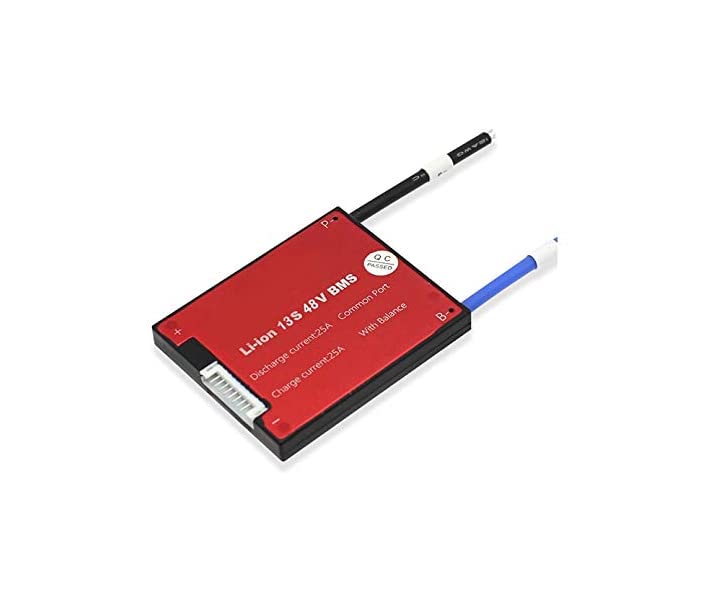

CentIoT® - 13S 48V 15A 25A 35A 45A 60A BMS Battery Management System PCM PCBA for 18650 Lithium Ion Battery Pack with Balance, heatsink, Waterproof

Brand: CentIoT

Features:

• Charging Voltage 54.6V; Output Voltage: 48V; Application: 3.7V lithium battery
• Constant Charging Current 18A; Maximal Continuous Discharging Current 18A;
• Peak Discharging/Over Current Protection Current 50A
• With Balance Function: yes; Waterproof and dustproof: yes
• Over charge protection: yes; Short circuit protection: yes; Over discharge voltage protection: yes;

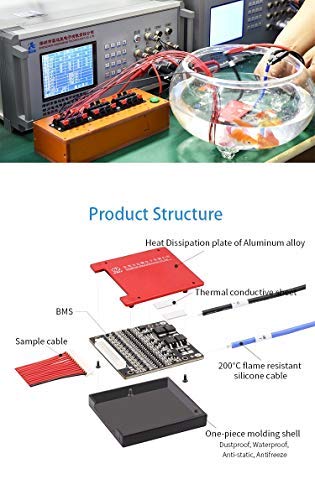

Details: Design Advantage Use top quality (A-level) protective integrated circuit IC, from the solution of Japan. Strong load ability, constant discharge current, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling. IC itself has power balancing function. The circuit is simple and reliable. Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable. Long time short circuit of the load won't affect the PCB and the battery. Temperature protection during charging and discharging. Extreme low power consumption. The consumption of the whole device is less than 50uA. PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating Over charge protection Over Charge Detection Voltage 4.25±0.025V Over Charge Detection Delay Time 0.5S Over Charger Release Voltage 4.19±0.05V Cell balancing Cell balancing Detection Voltage 4.18V Cell balancing Release Voltage 4.18V Cell balancing Current 35±5mA Over discharge protection Over Discharge Detection Voltage 2.8±0.05V Over Discharge Detection Delay Time 0.5S Over Discharger Release Voltage 3.0±0.05V Over current protection Over Current Detection Voltage 150mV Over Current Detection Delay Time 9MS Over Current Protection Condition Disconnect the load Short Protection Detection Condition Exterior Short Curcuit Detection Delay Time 250uS Release Condition Disconnect the load Temperature Protection: 75℃ Internal Resistance MOSFET ≤10mΩ

Binding: Electronics
