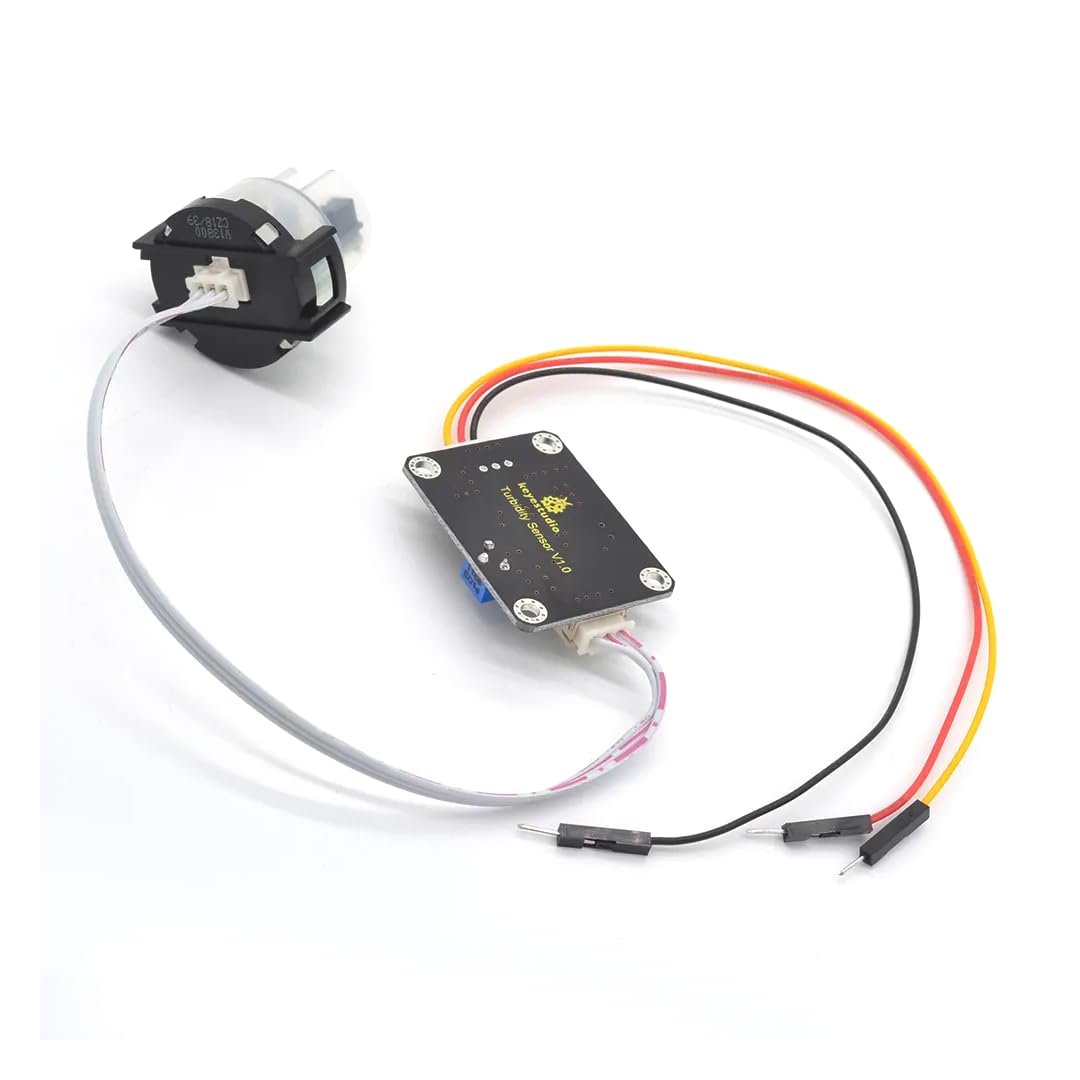

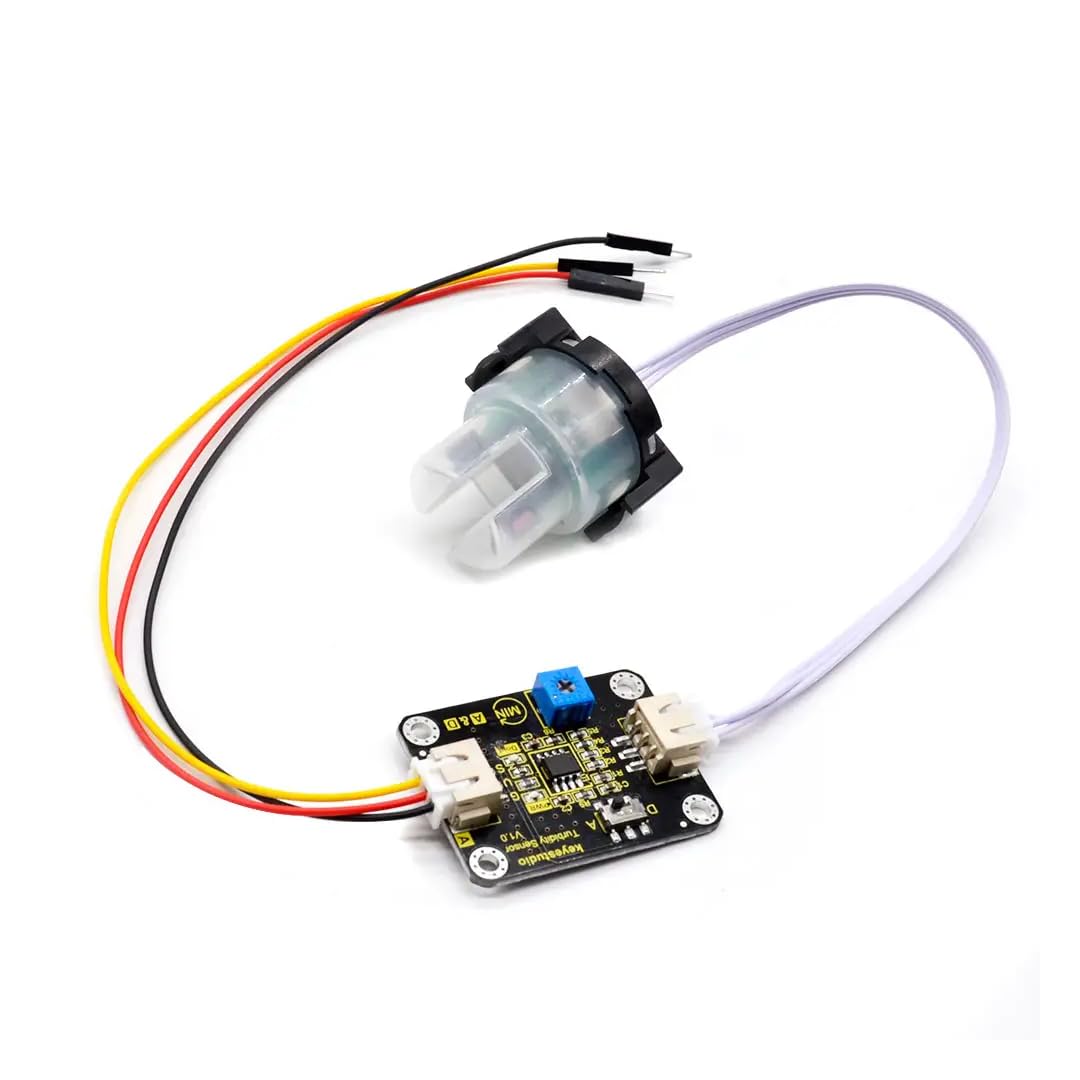

CentIoT - Turbidity Sensor Shield Expansion Board - with TS- 300B Sensor

Brand: CentIoT

Features:

• Operating Voltage: DC 5V; Operating Current: about 11mA
• Detection range is 0%-3.5% (0-4550NTU), with an error range of ±05%F*S.
• When using, measure the voltage value of sensor’s Signal end; then work out the water’s turbidity by simple calculation formula.
• Turn the blue potentiometer on the sensor to adjust the sensitivity of sensor.

PartNumber: TS-300B

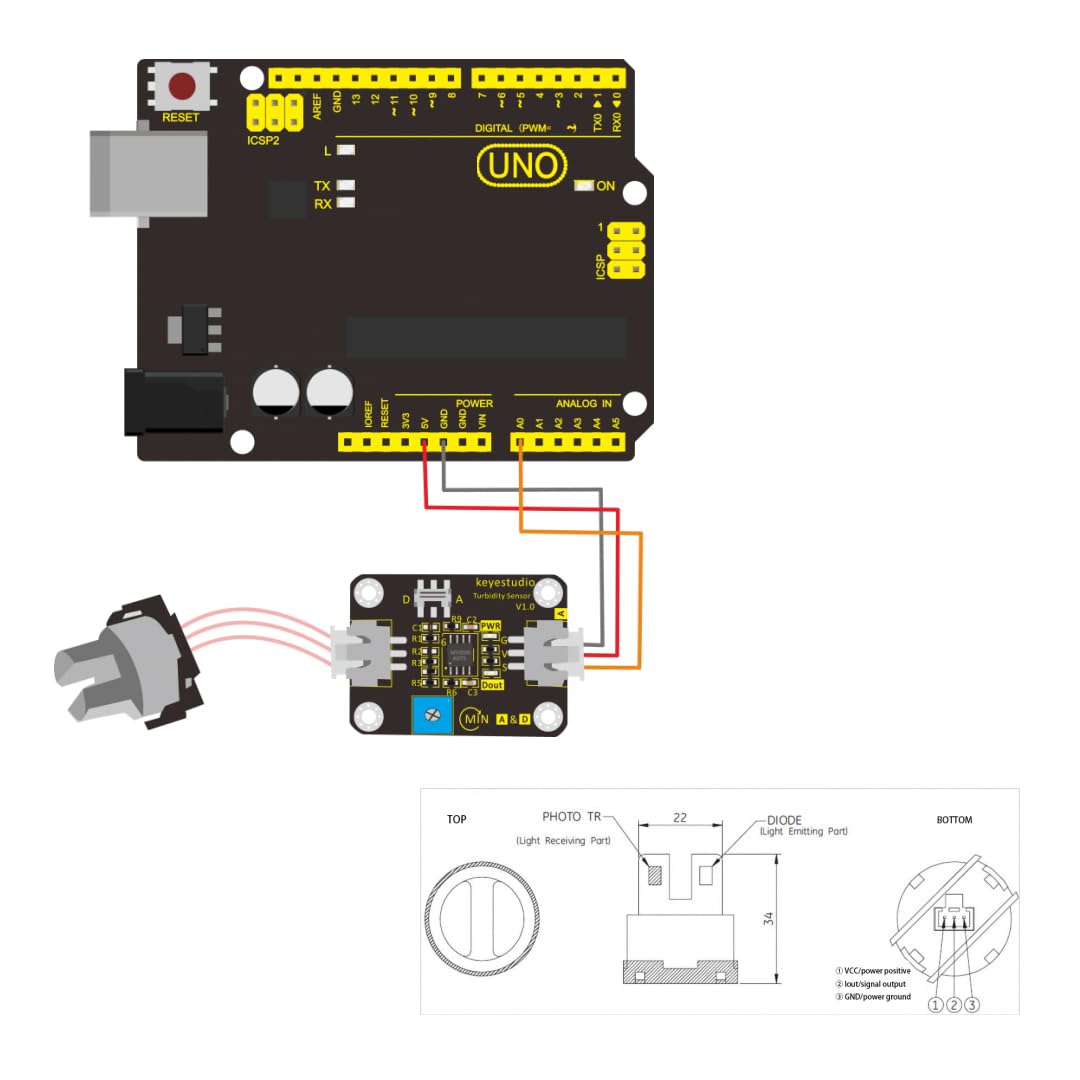

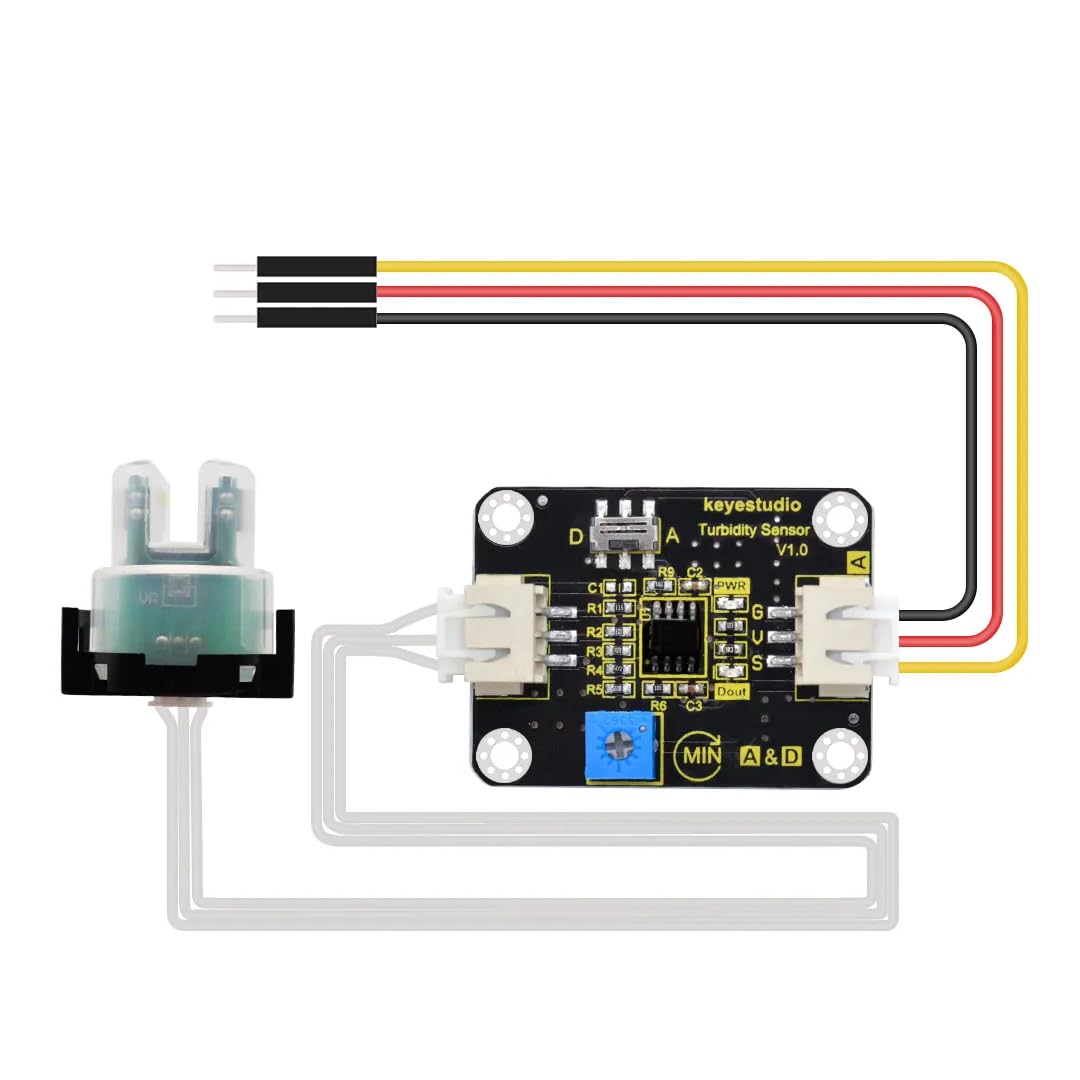

Details: Turbidity sensor detects water quality by measuring level of turbidity, principle is to convert the current signal itself into the voltage output through the circuit. Turbidity sensor detects water quality by measuring level of turbidity, principle is to convert the current signal itself into the voltage output through the circuit. This turbidity sensor have both analog and digital signal output modes. The module has a slide switch. When slide the switch to A end, connect the signal end to analog port, can read the analog value to calculate the output voltage so as to get the turbidity degree of water. If slide to D end, connect signal end to digital port, can detect the water whether is turbidity by outputting HIGH or LOW level.

Model: TS-300B

Item Condition: New
