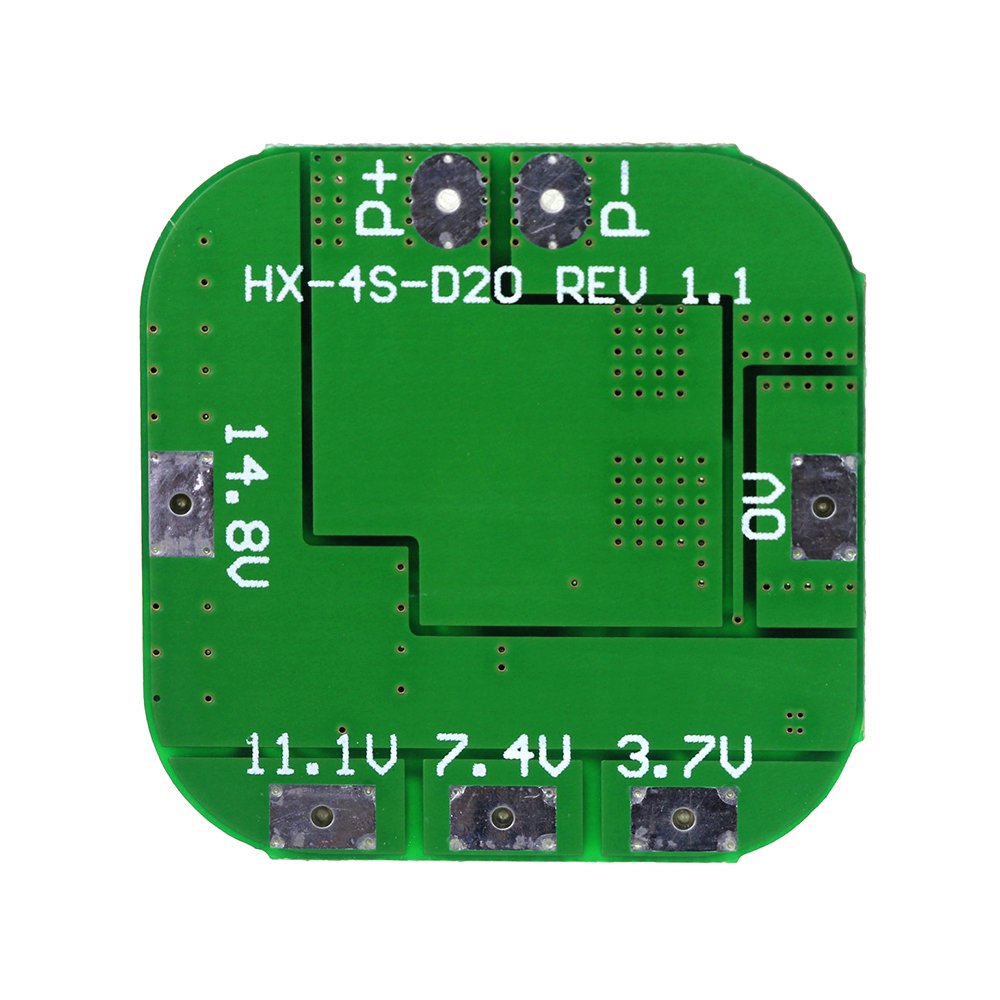

CentIoT® - 4S 14.8V 16.8V BMS Battery Management System PCM PCB for 4 Series 18650 li-ion Lithium Ion Battery Pack

Brand: CentIoT

Color: Multicolor

Features:

• Charging voltage range:: 16.8V
• Over-discharge recovery voltage: 2.5v ± 0.05v, over-discharge-delay-time: 144ms
• Maximum Peak current: 20A, Maximum Working current: 10A, Static current: less than 8uA
• Resistance: less than 4mΩ; 4 series 18650 battery 16.8V 16V 14.8V 14.8V (Li-ion 18650 or li-ion battery rated voltage) 16.8V (Li-ion battery full charge voltage) 14.4V ( Lipo battery pack rated voltage)
• Short circuit protection: protect and automatic recovery, Over discharge protection: yes, over-current-protection: yes

PartNumber: 4S-Li-ion

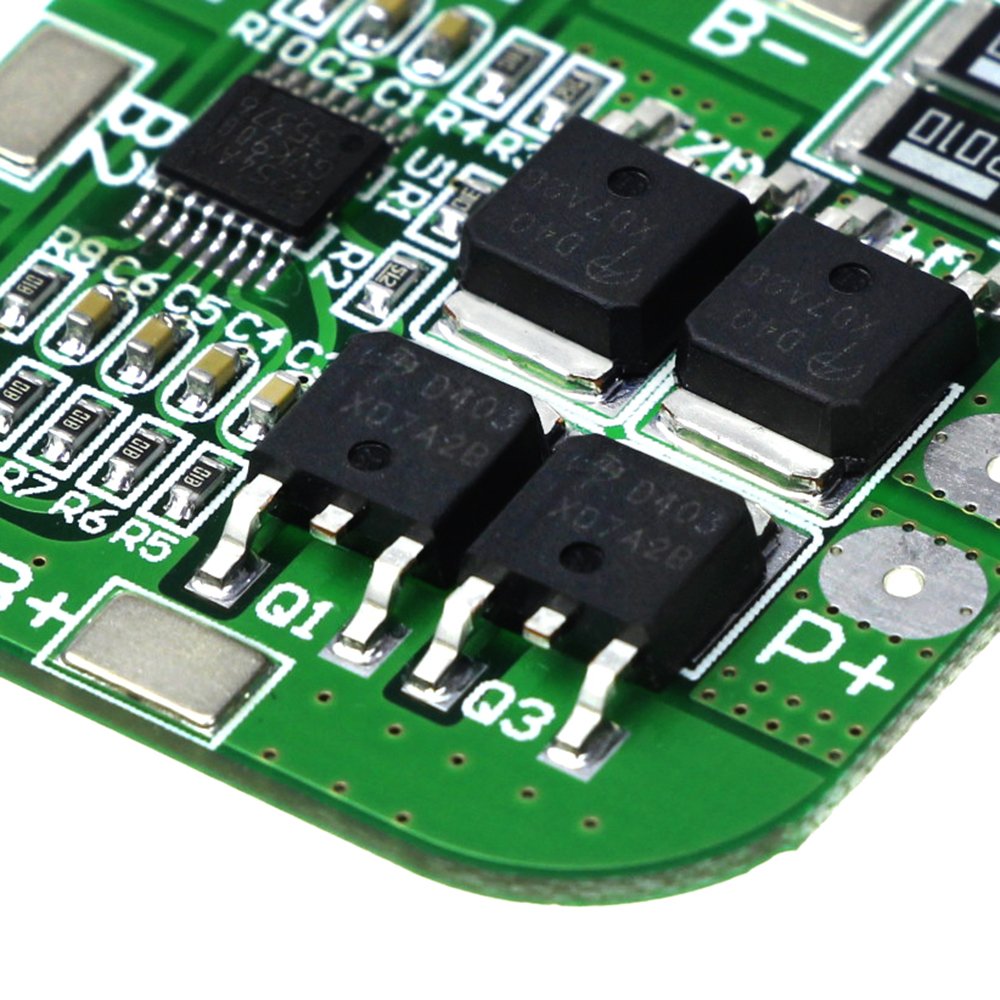

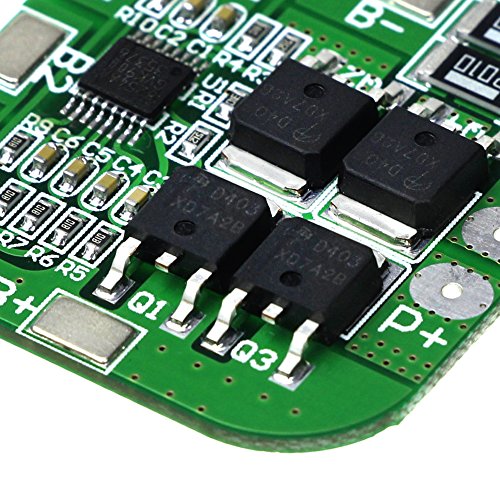

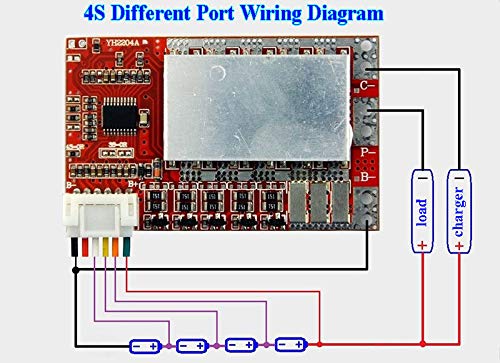

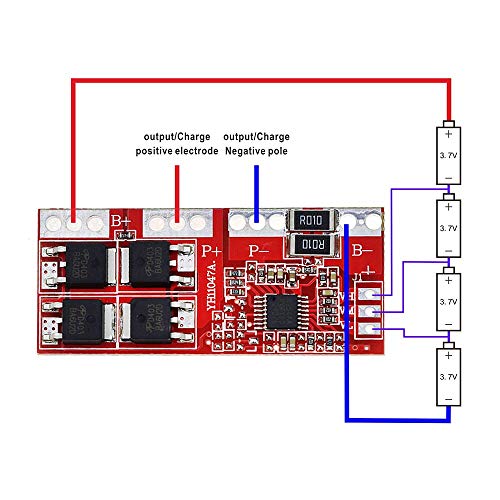

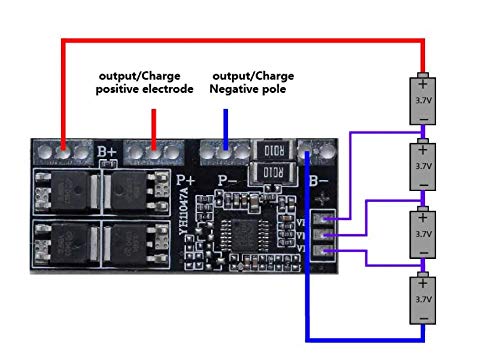

Details: NOTE: 1) This board is not suitable high power electronic tools, like screwdrier and drill. 2) Above 3A device,means the battery discharge rate is more than 3C. 1C rated battery, 2000mah equals 2ah*1=2A max working current. 3C rated battery means 2ahx3=6A Max working current. Features: 1) High-accuracy voltage detection circuit; 2) Terminal of the charger using high voltage device; 3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit); 4) MOS transistor can control the battery charge and discharge; 5) low standby current consumption. 4S LI-ION BMS Parameters: Over Charge Voltage:4.25-4.35v±0.05v Over Discharge Voltage: 2.3-3.0v±0.05v Max working current:10A Max Peak current:20A Working Temperature:-40---+50 Storage Temperature:-40-- +80 Small current:6uA Life cycle:50000hours Resistance:45mΩ Short cut Protection: yes ,change for repair Size:35*35*3.0mm BMS solder instruction: B+ connected battery positive; B1 the connect point between battery 1 and battery 2 B2 connect the point between battery2 and battery 3 B3 Connect the point between battery 3 and battery 4 B- connect to battery negative end P- + connection charge / discharge positive; P- connection charge / discharge negative 4S Li-ion18650,LiCoO2,LiMn2O4,Li(NiCoMn)O2 rechargeable batteries 4S Lipo rechargeable batteries

Model: 4S-Li-ion

Binding: Electronics
