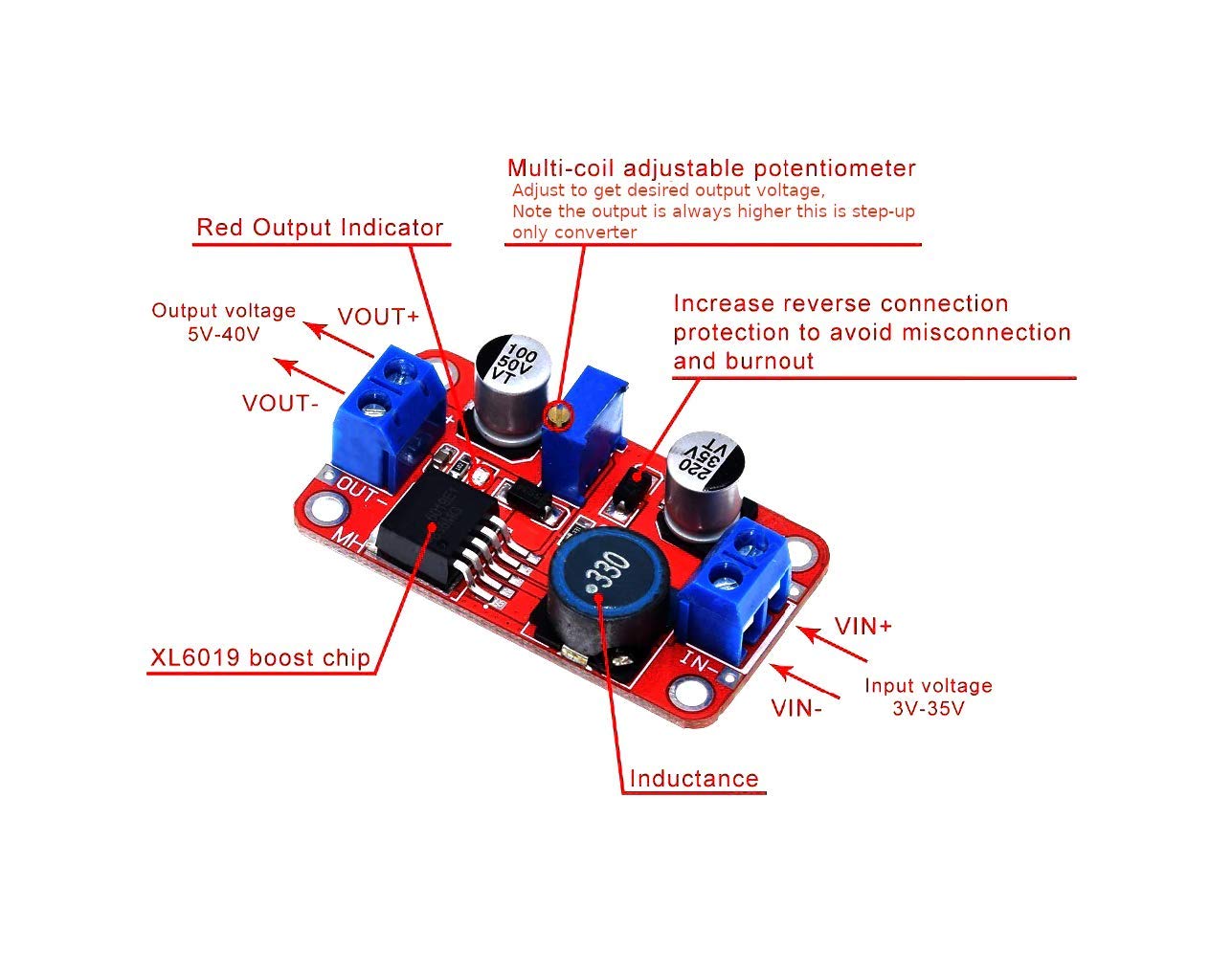

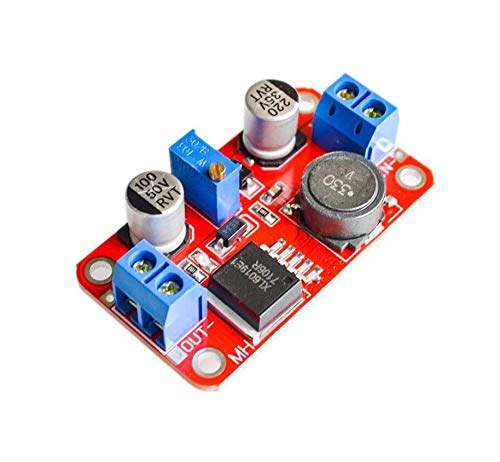

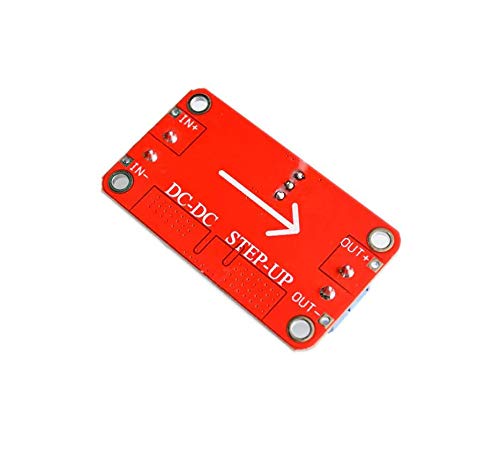

CentIoT - XL6019 DC-DC CV Constant Voltage - Step up Boost Voltage Converter 3A (xl6009 upgrade)

Brand: CentIoT

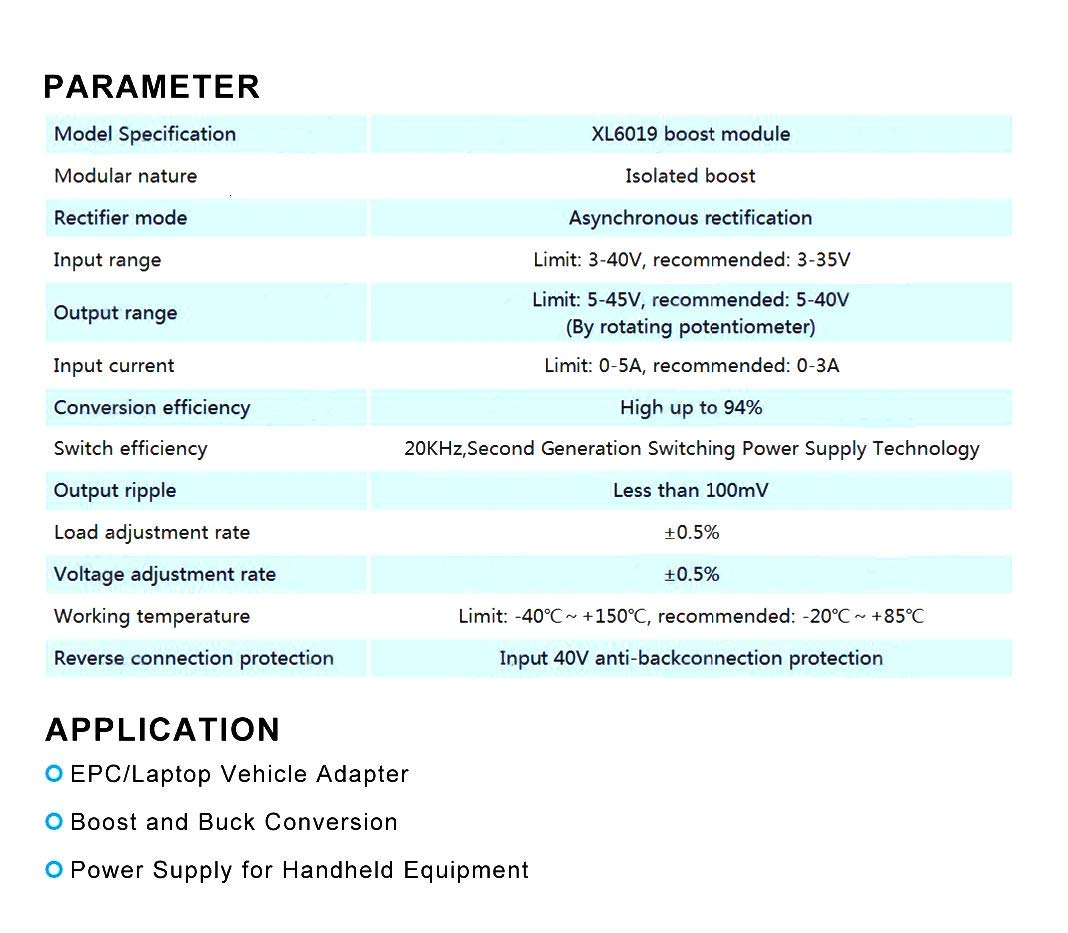

Features:

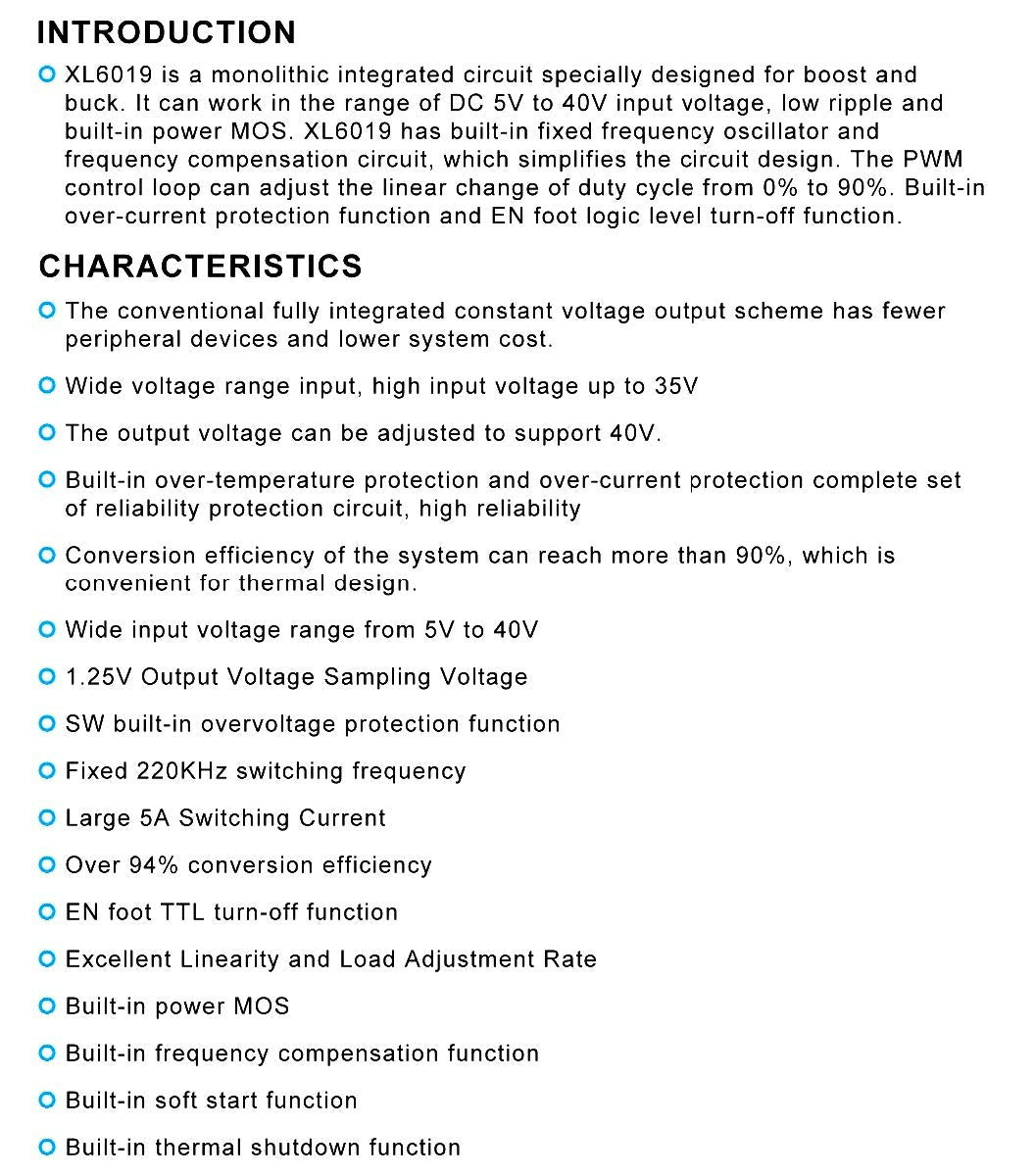

• Module feature: XL6019 step up module; Module type: Non-isolated boost; Rectification method: Non-synchonous rectfication;
• Input voltage:3V-35V; Output voltage:5V-40V(notes can not step down voltage); Input current: 3A(max);
• Transfer efficiency: 94%(The highest) Normal efficiency 85%; Switching frequency: 220KHz; Output ripple: <100mV;
• Output ripple: <100mV; Load regulation: +-0.5%; Voltage regulation: +-0.5%;
• Operating temperature: -20℃~+85℃; Size: 5cm x 2.8cm x 1.2cm(2.28"x1.10"x0.47"); USE WITH HEATSINK

PartNumber: DC055-XL6019-5A-CV-BOOST

Release Date: 15-07-2020

UPC: 679043312533

EAN: 0679043312533

Model: DC055-XL6019-5A-CV-BOOST

Binding: Electronics

Item Condition: New
