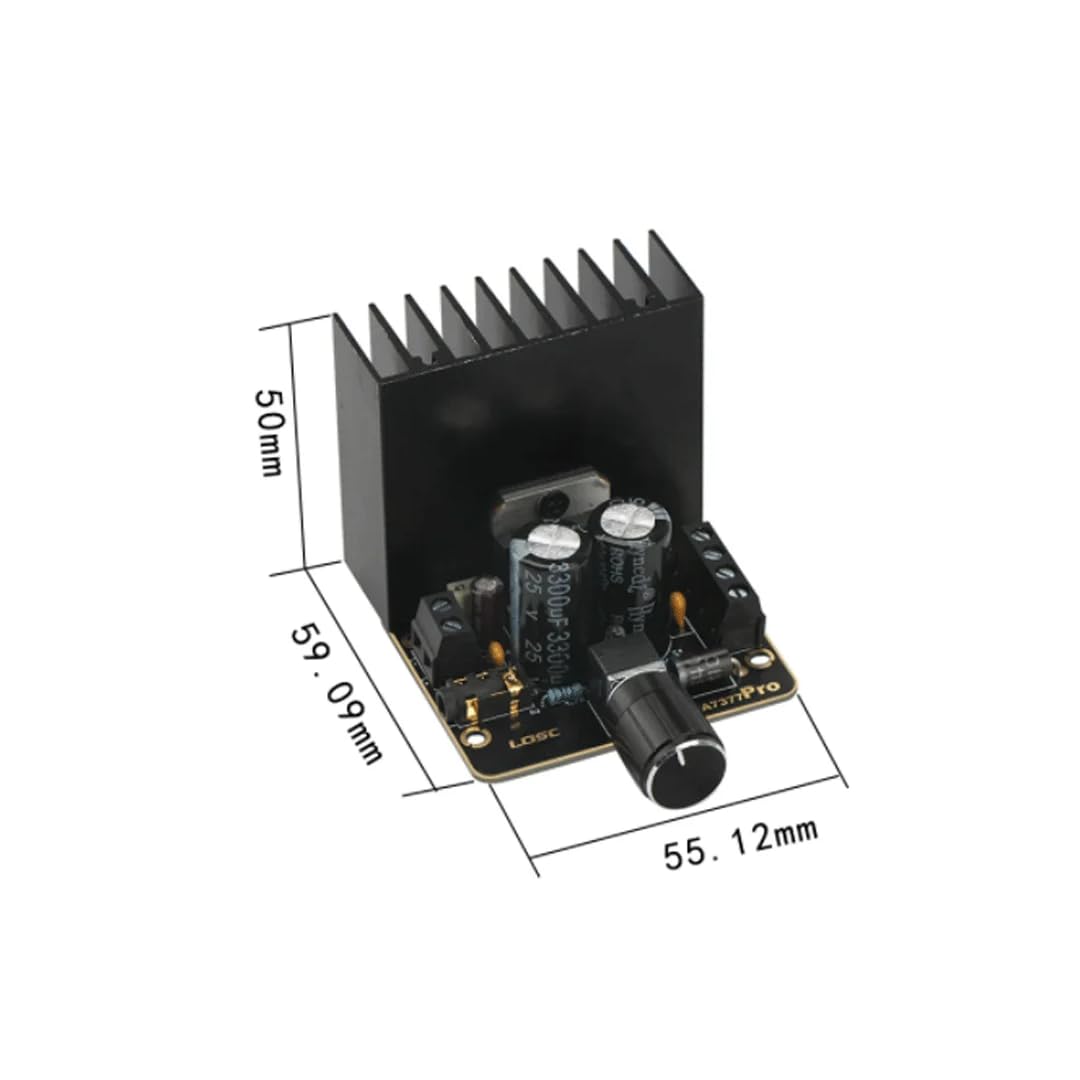

CentIoT - TDA7377 PRO 30Wx2-2.0 Channel Class AB Hifi Digital Stereo Audio Power Amplifier Board

Brand: CentIoT

Color: Black

Features:

• TDA7377 Class AB automotive power amplifier
• Supply voltage: DC9-15V, recommended DC12V.
• OUTPUT POWER CAPABILITY: 2 x 37W max./4Ω; 2 x 24W/4Ω @14.4V, 1KHz, 10%; 4 x 7W/4Ω @14.4V, 1KHz, 10%; 4 x 11.5W/2Ω @14.4V, 1KHz, 10%

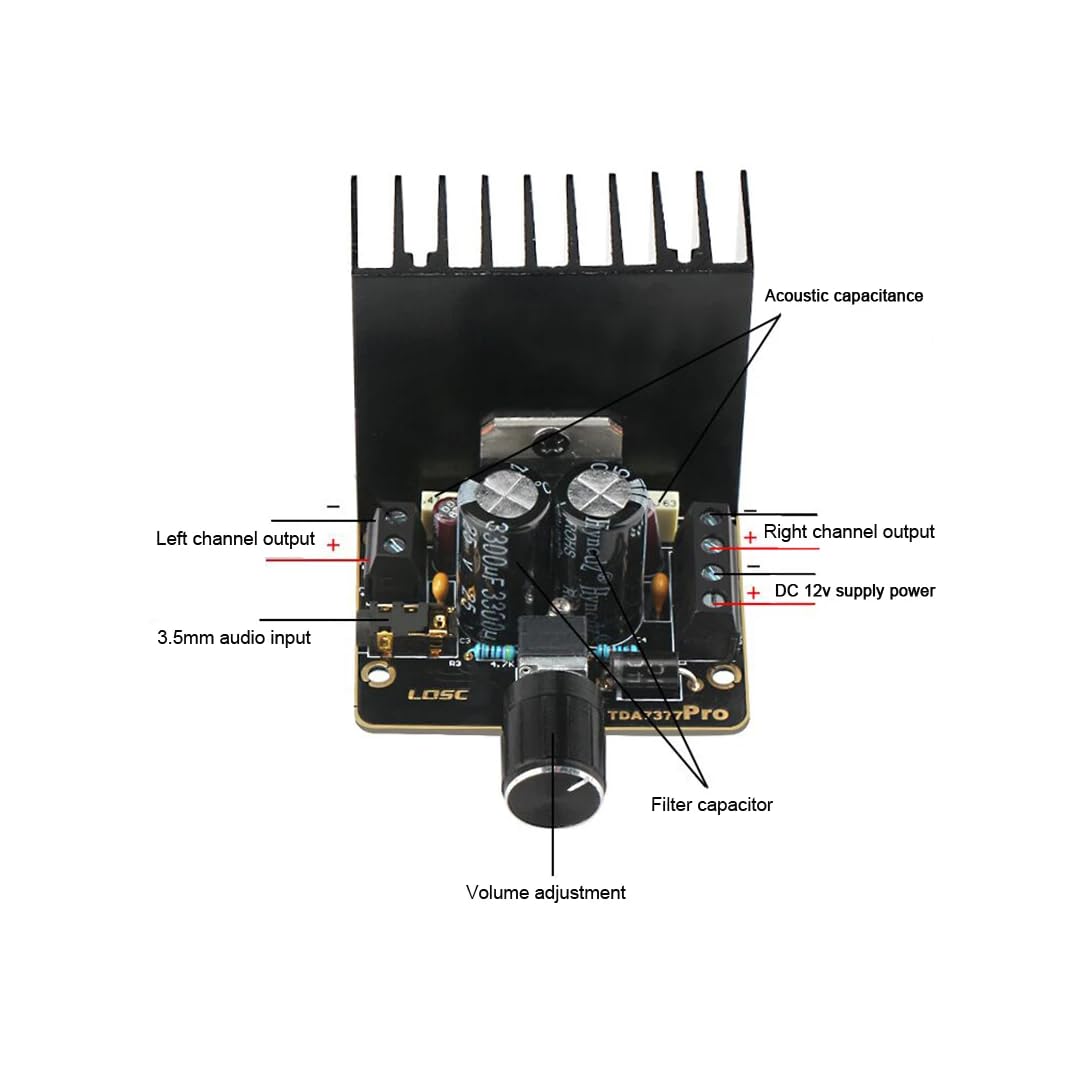

• Potentiometer handle opening: 7mm; Speaker impedance: 4-8ohm; Input method: 3.5mm audio input
• Protection: reverse power supply input protection, short circuit, over current, overheating

PartNumber: AU070-TDA7377-2X30W

Details: The TDA7377 is a new technology class AB car radio amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guarantees the highest possible power performances with extremely reduced component count. The on-board clip detector simplifies gain compression operation. The fault diagnostics makes it possible to detect mistakes during car radio set assembly and wiring in the car.

Model: TDA7377-PRO

Item Condition: New
