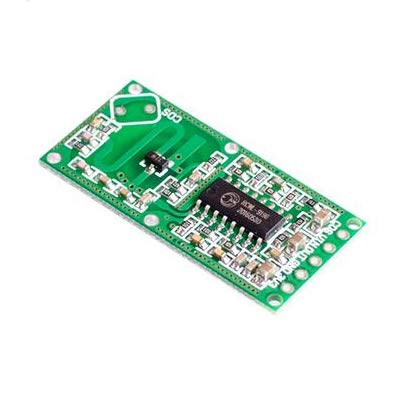

CentIoT - Proximity Motion Human body sensor switch module (RCWL-0516 MICROWAVE)

Brand: CentIoT

Features:

• This mini doppler radar sensor module is equipped with supporting DC 4-28V wide voltage It will automatically continuously output the high level TTL signal when there is motion. 360 degree no blind angle detection and maximum 7m sensoring distance. It is perfect for DIY microwave motion sensor light switch, human sensor toys, smart security devices, etc.
• Operating Voltage: 4-28V; Operating Current: 2.8mA (typical); 3mA (max); Detection Distance: 5-9m;
• Transmitting Power: 20mW (typical); 30mW (max); Output Voltage: 3.2-3.4V; Output Voltage Driving Capacity: 100mA;
• Trigger Way: repeat trigger; Output Control Low Level: 0V; Output Control High Level: 3.3V; Operating Temperature: -20~80 celsius;
• Storage Temperature: -40~100 celsius; Board Size: 35.9 X 17.3mm/1.41 X 0.68inch;

PartNumber: Motion

Release Date: 07-06-2019

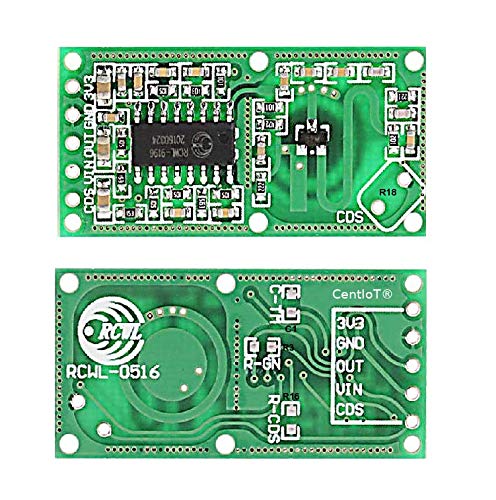

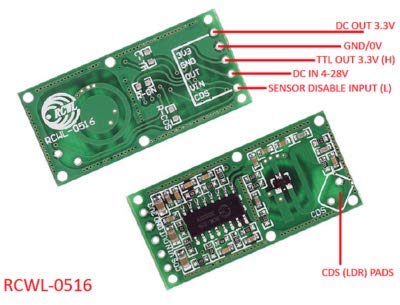

Details: Description RCWL-0516 is a doppler radar microwave motion sensor module which can act as an alternative to a PIR motion sensor PinFunction 3V 33.3V regulated output. Max 100mA (?) GND Ground OUT Trigger: high (3.3V) if motion detected. 0V normally. VIN4 - 28V supply voltage CDSLDR 10-20k RL, U_LDR > 0.7V = On

EAN: 4604046162904

Model: RCWL-0516

Binding: Electronics

Item Condition: New
