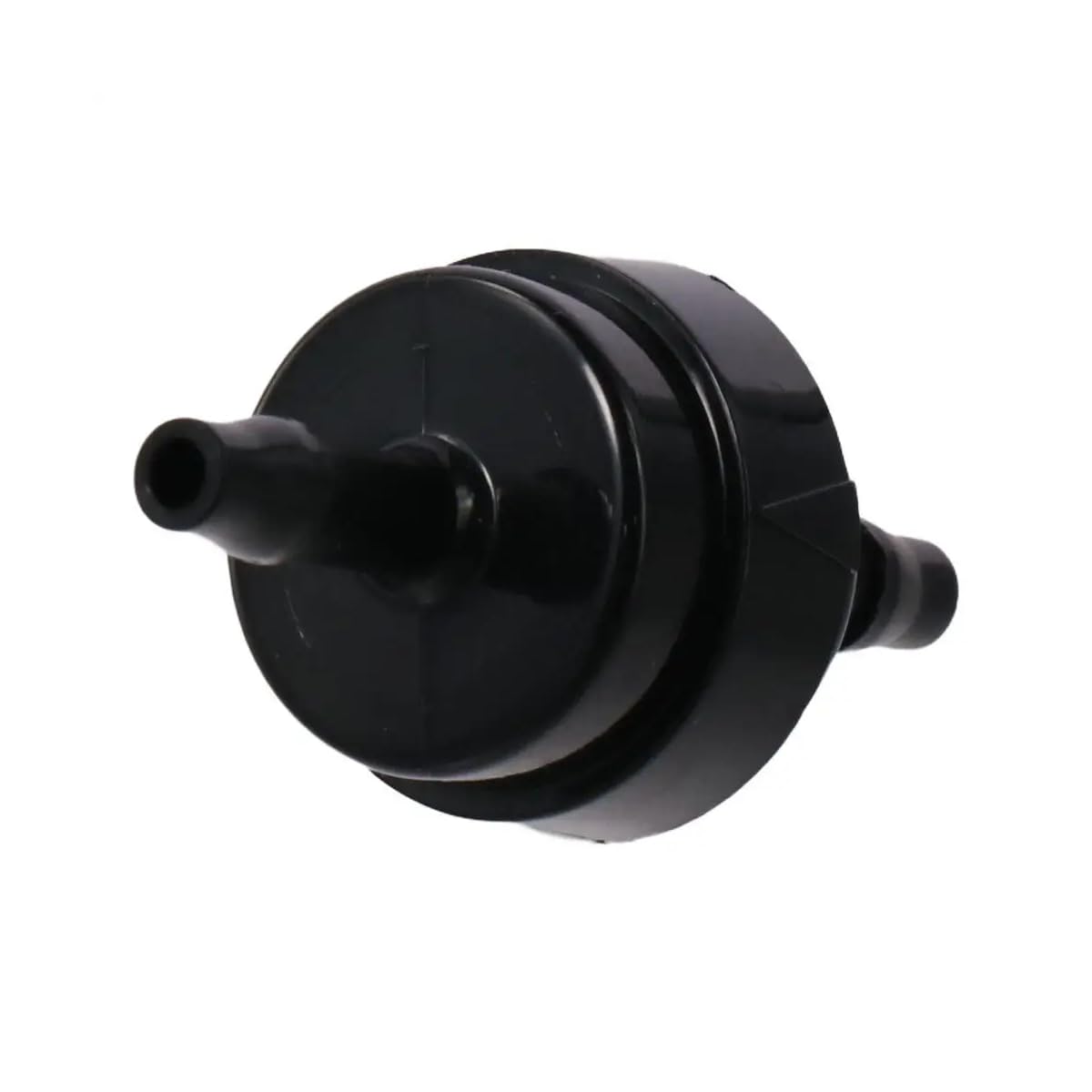

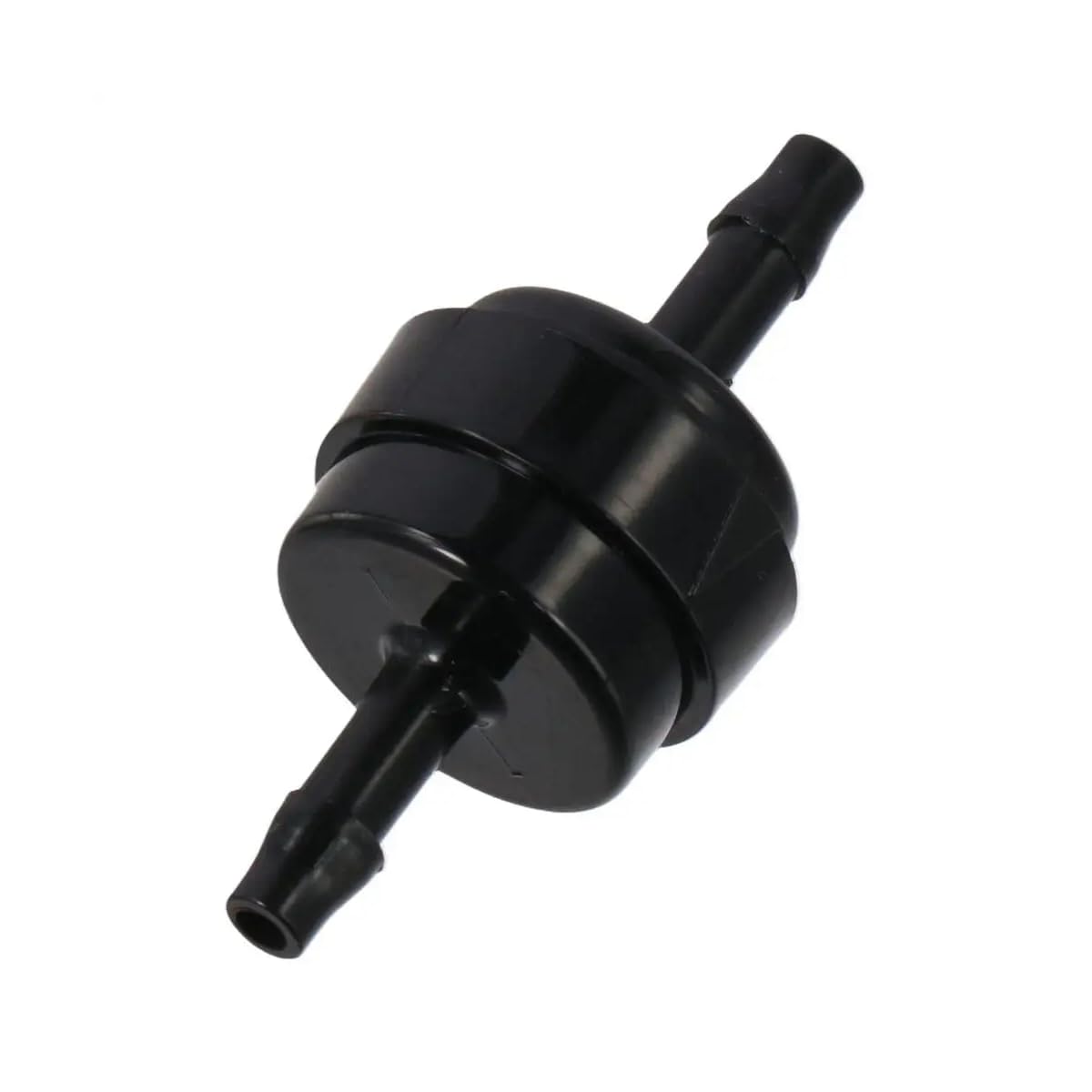

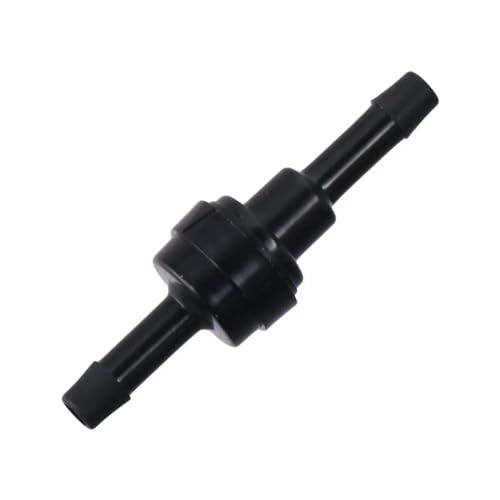

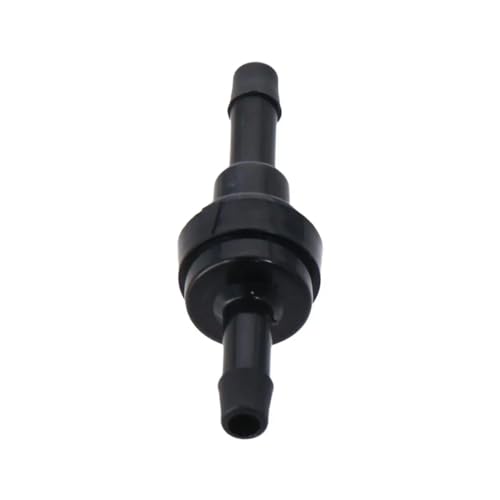

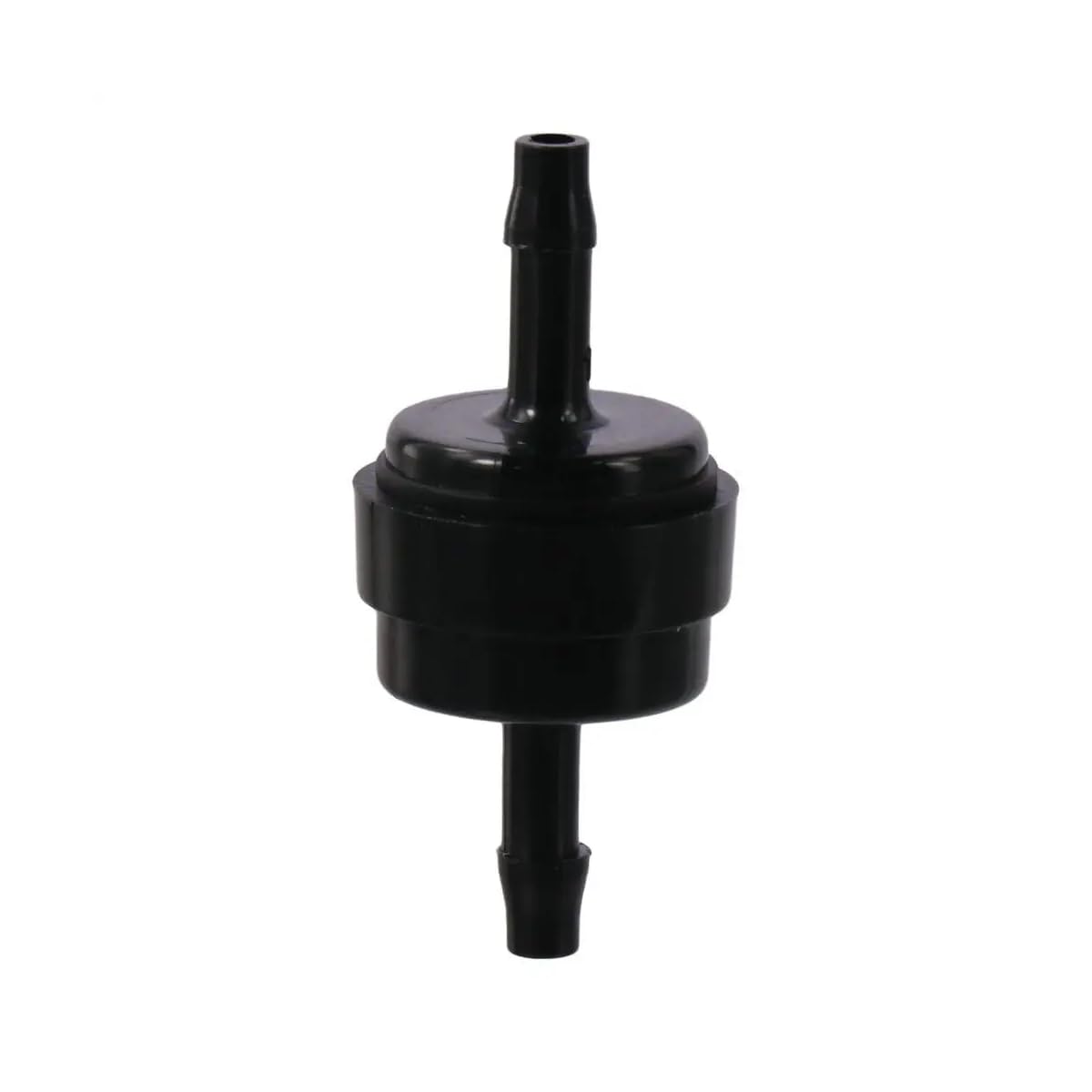

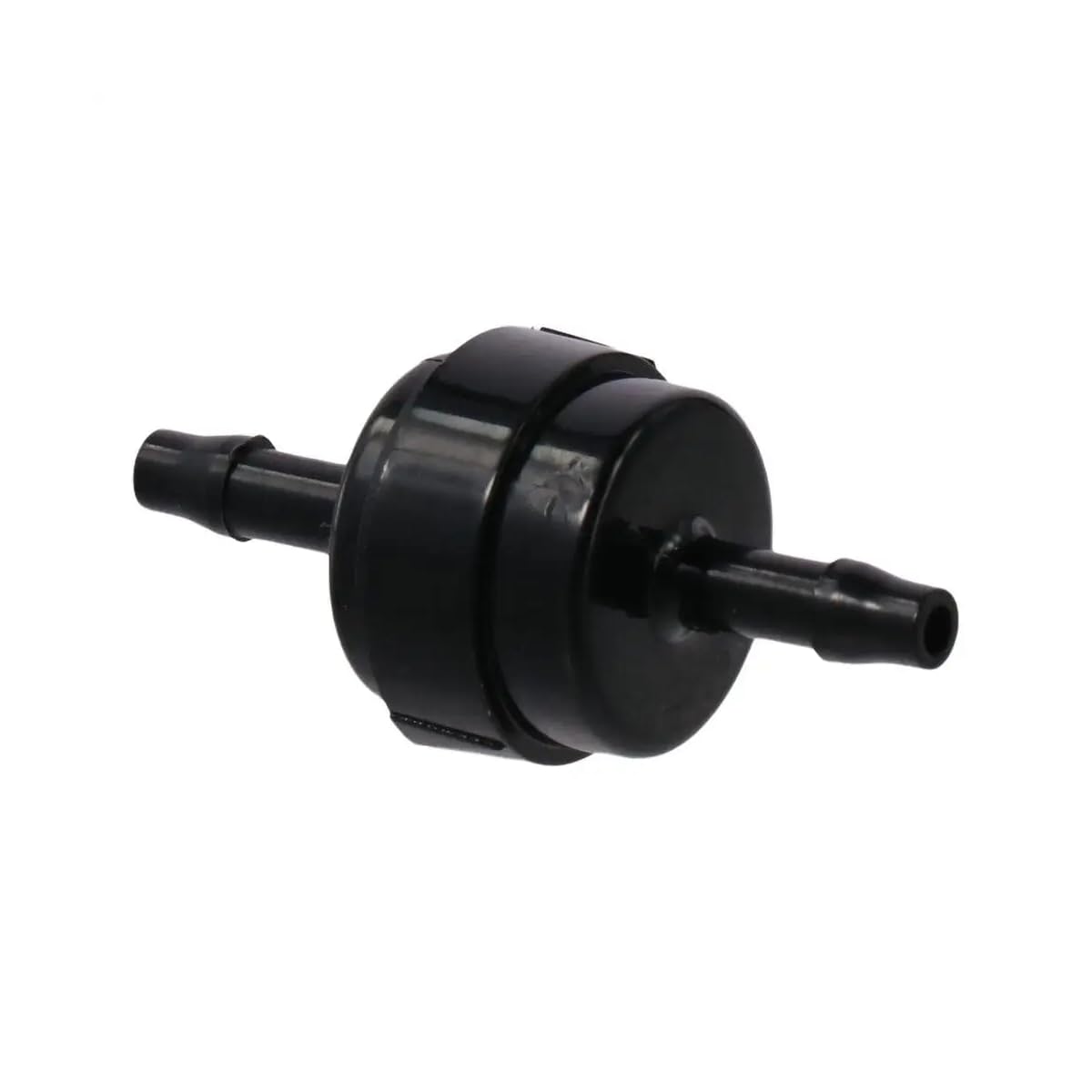

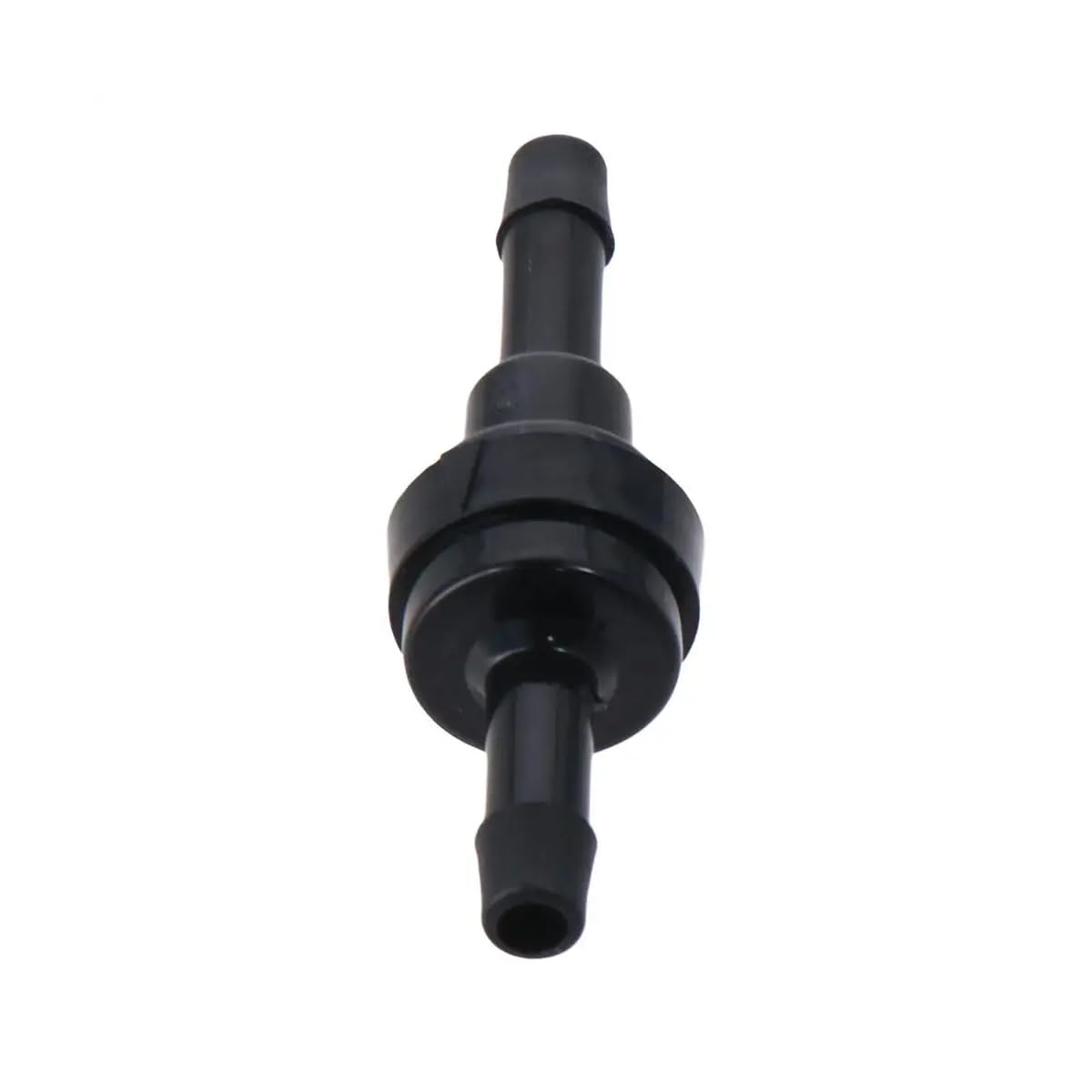

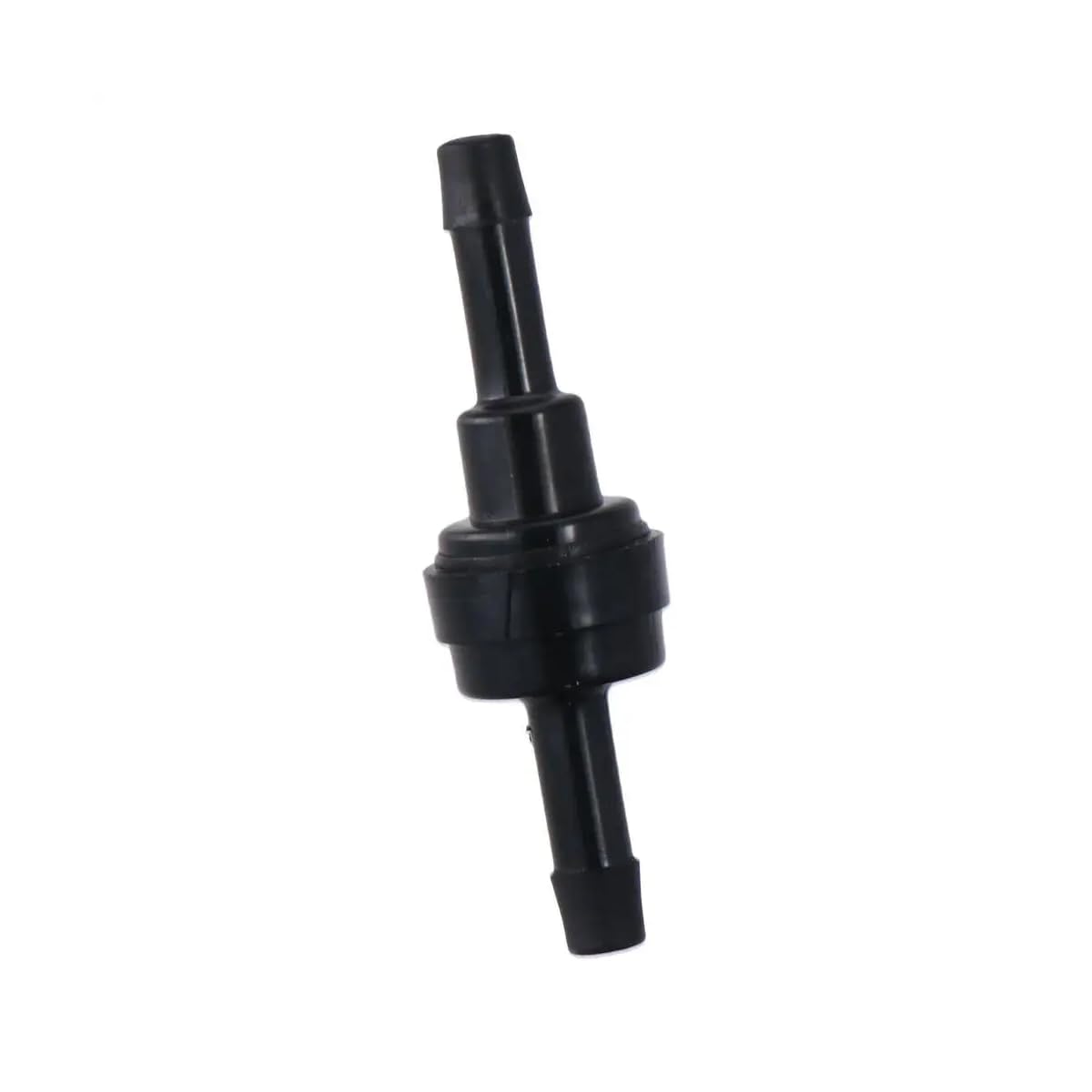

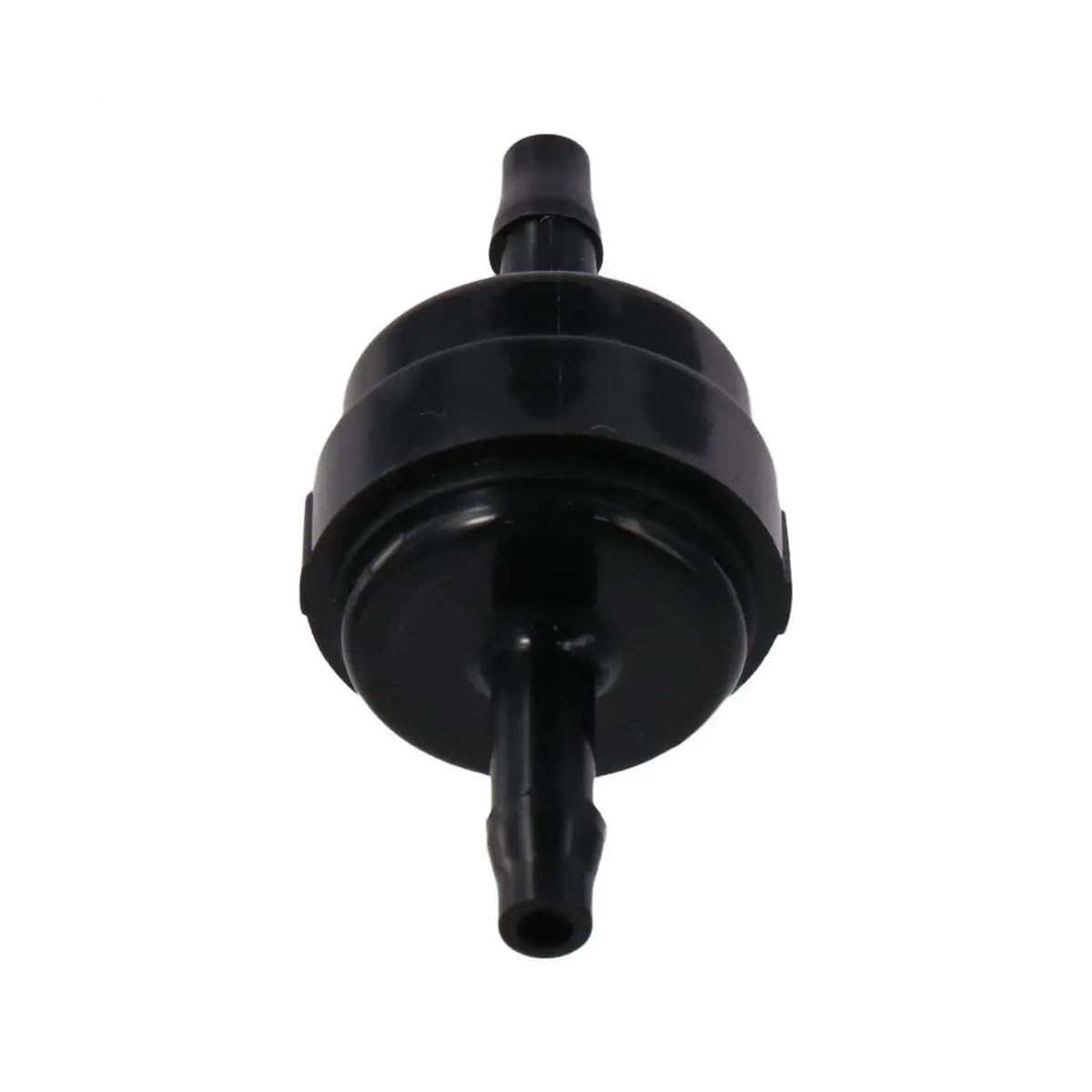

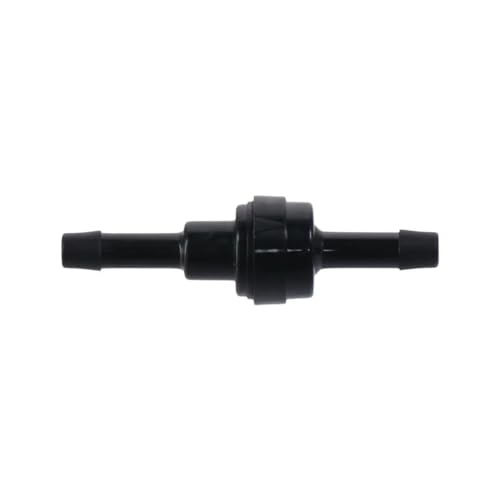

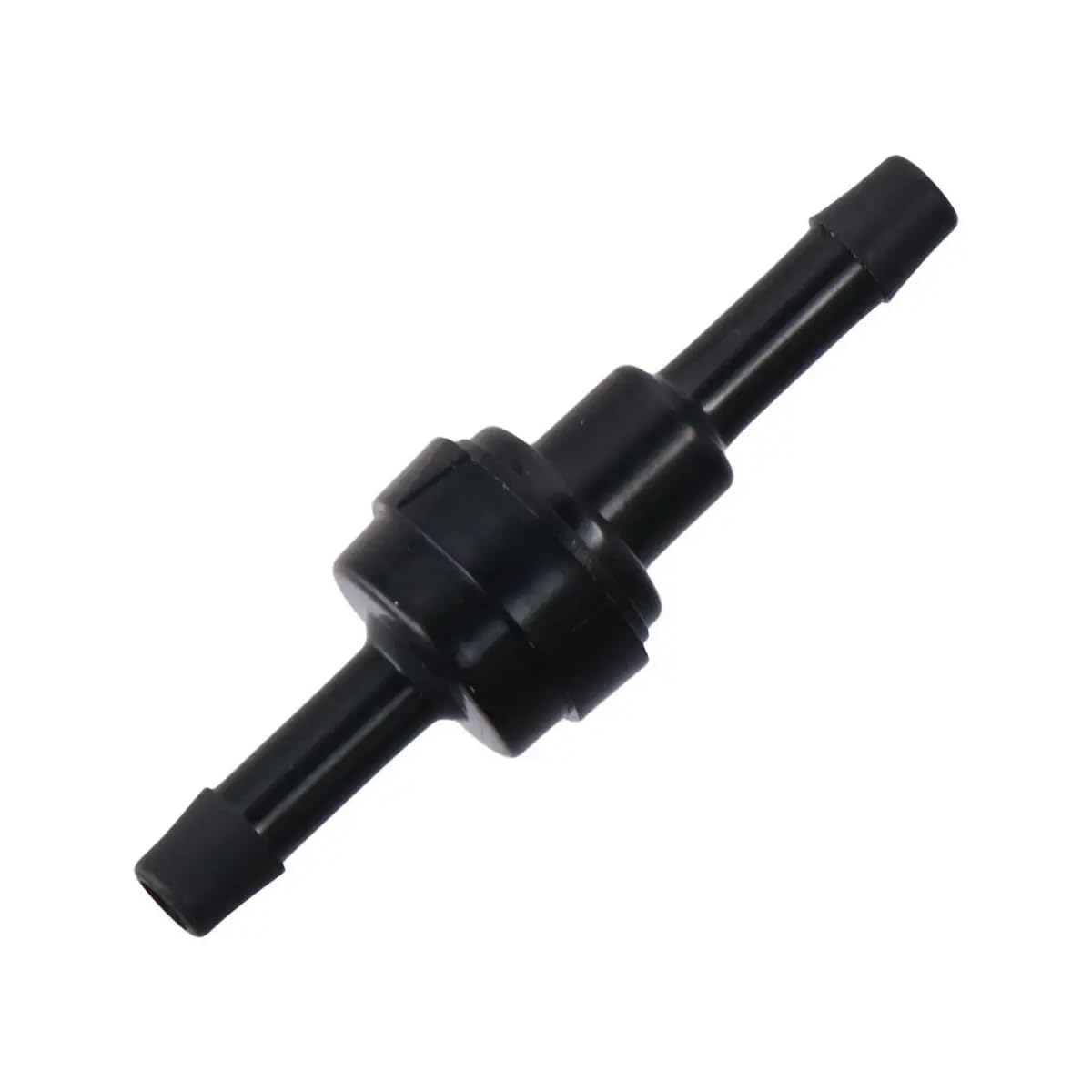

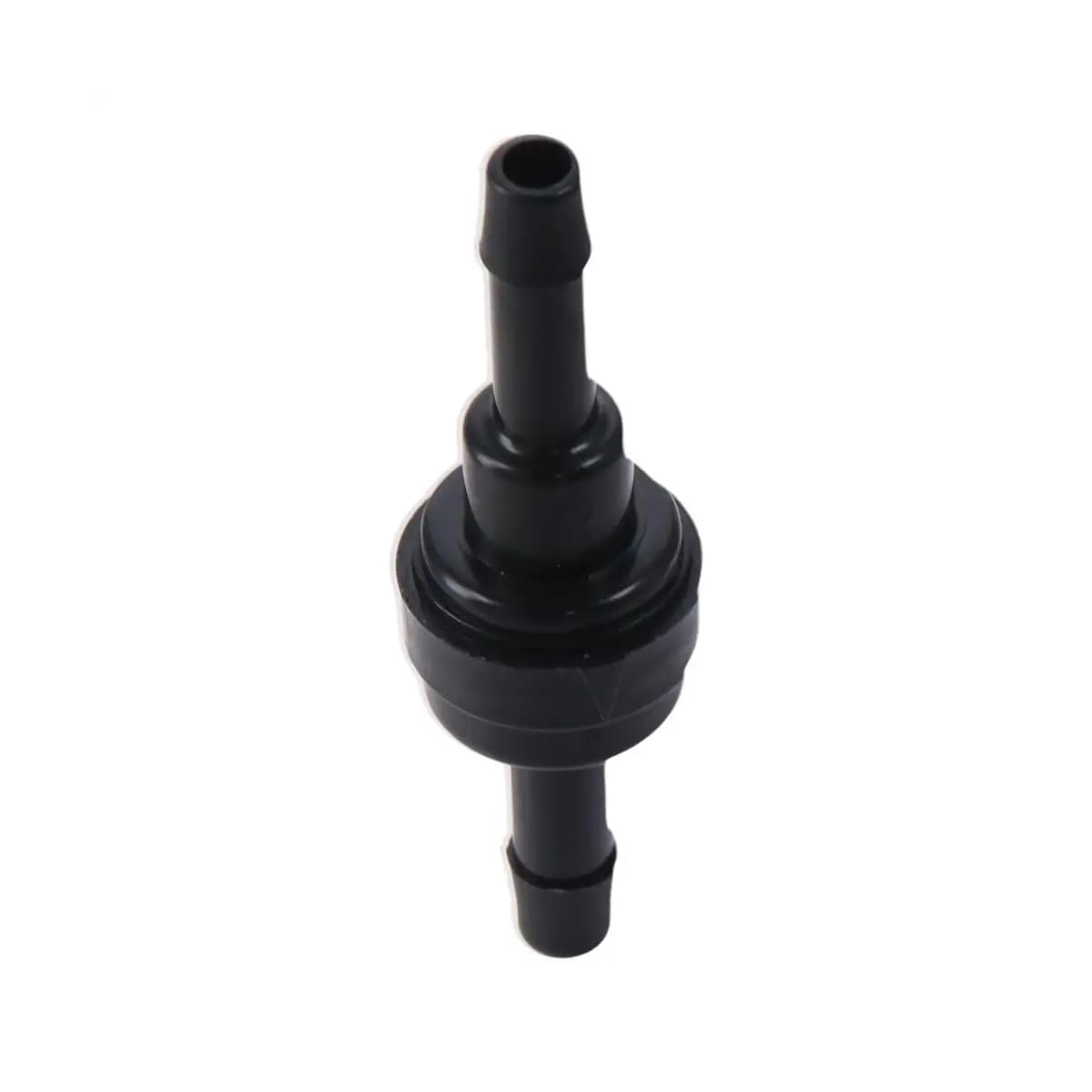

- CentIoT - One-Way Non-Return Inline Check Valve - Viton and Nylon PA66 - for Fuel
Product Categories
- Development Boards(0)
- Audio and Video(22)
- Accessories Tools Cases (0)
- Connectors and Cables(0)
- Thermal Management(57)
- Motors And Drivers(15)
-
Wireless Communications(38)
- Top Brands
- (G)FSK Front-End Modules
- 2.4G Front-End Modules
- ASK Modules
- LoRa & LoRaWAN Modules
- LoRaWAN Gateway & Node
- BLE & GPS & 125kHz Wakeup Modules
- RF antennas
- 3D Pedometer Modules & Chips
- Transparent Wireless UART Modules
- Walkie Talkie & Wireless audio
- Wireless IO & 4-20mA Modules
- SENSOR MONITORING GATEWAY AND NODE
- Power Supply and Converters(21)
- Test, Measure and Inspect(0)
- All Categories ()
Featured product
Description
Brand: CentIoT
Color: Black
Features:

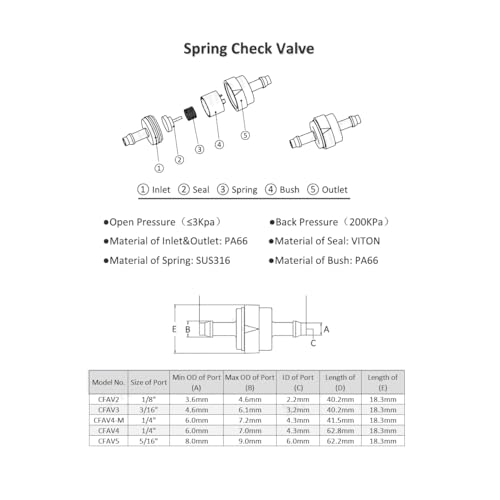

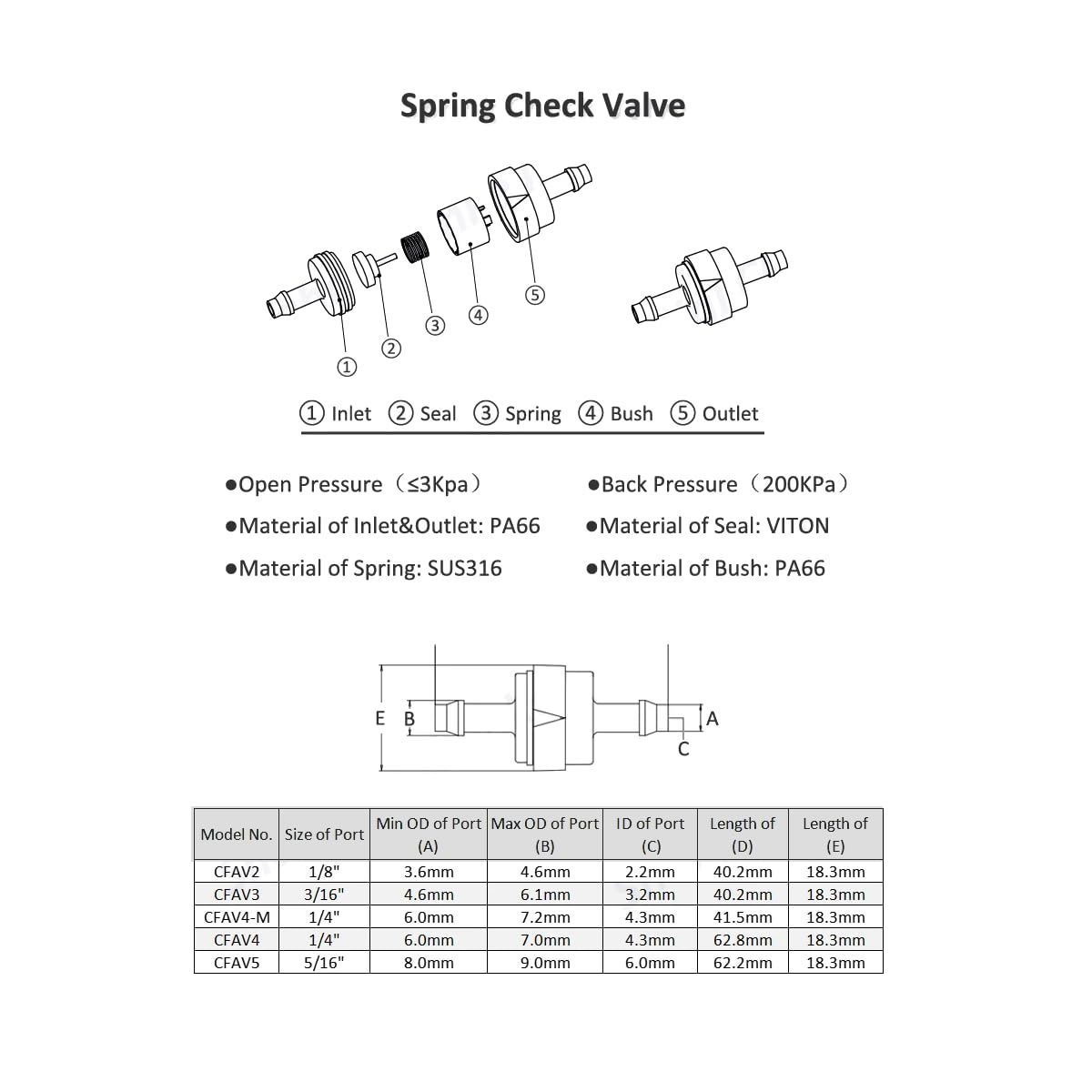

- Structure: Spring + Umbrella design for efficient non-return valve operation.
- Working Pressure Range: 200 Kpa non-return pressure; Forward Direction Open Pressure: <3 Kpa.
- Temperature Tolerance: Operates between -30°C to 130°C (-22°F to 266°F).
- Applications: Suitable for fuel systems in cars, helicopters, ships, motorcycles, etc.
- Materials: PA66 Nylon outer shell; Nylon PA66 gasket, Viton Rubber O-ring, SU316 stainless steel spring.

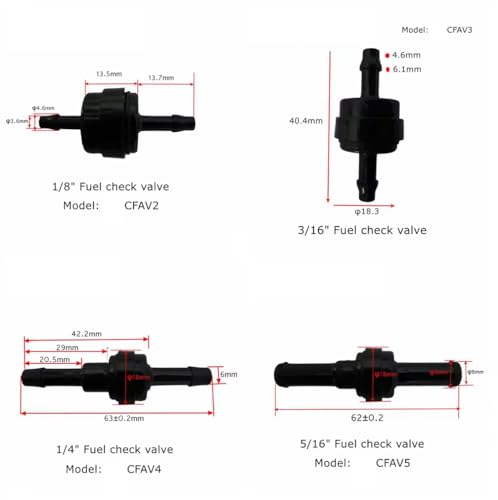

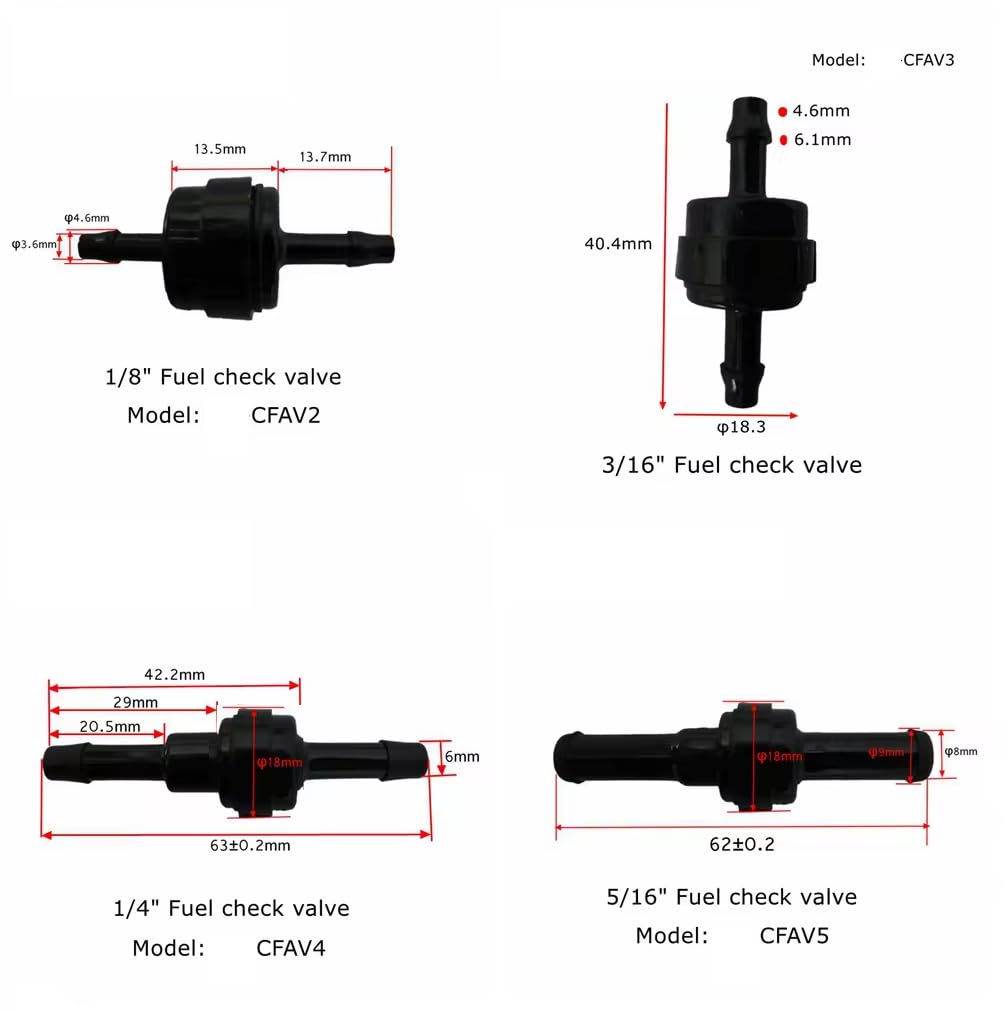

- Min OD of Port: 3.6mm; Max OD of Port: 4.6mm; ID of Port: 2.2mm
Details: This versatile valve is designed for a wide range of applications, including cars, helicopters, ships, motorcycles, and other fuel systems. With a spring and umbrella structure, it offers a non-return working pressure range of 200 kPa and a forward direction open pressure of less than 3 kPa. The operating temperature range spans from -30°C to 130°C, making it suitable for various climatic conditions. Compatible with diesel, gasoline, water, and other media (except alcohol-based materials), this valve features a durable outer shell made of PA66 nylon and inner components constructed from nylon PA66 (gasket), Viton rubber (O-ring), and SU316 stainless steel spring. Its robust construction ensures reliable performance and longevity in fuel systems and other applications.
Model: PA66
