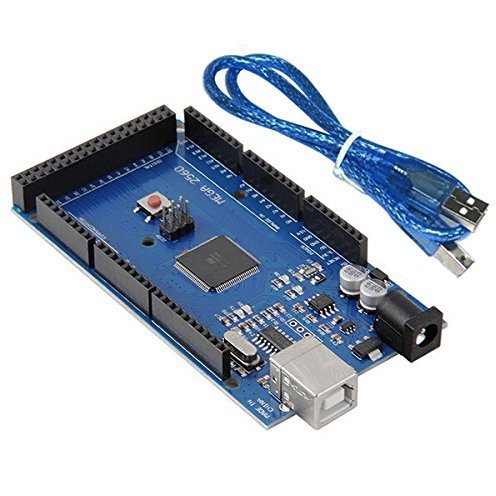

CentIoT - Mega 2560 R3 Mega2560 REV3 Compatible + USB Cable

Brand: CentIoT

Features:

• Microcontroller: ATmega2560 This is an Updated Mega 2560 Boards with few enhancements as listed below and in the Description
• The Mega ADK is a microcontroller board based on the ATmega2560

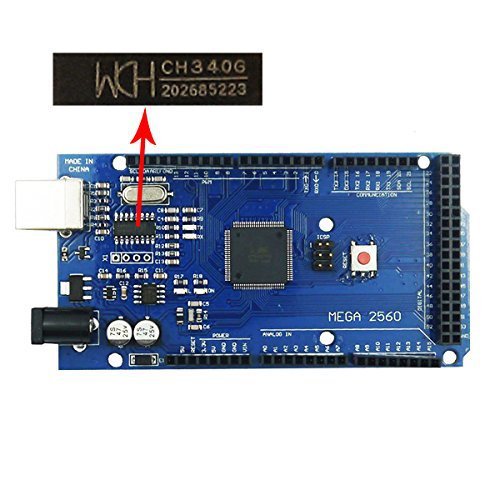

• It uses CH340G USB to UART Interface and hence is fully compatible with Windows(including 10) and Linux OS
• CH340G replace the Atmega 8U2/16U2
• Operating Voltage: 5V Input Voltage (recommended): 7-12V

PartNumber: AR003-MEGA-2560-R3-CH340

Release Date: 29-10-2016

Details: The Mega 2560 is an update for the Mega, which it replaces.The board is a microcontroller board based on the ATmega2560-16AU. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Duemilanove or Diecimila. Features: 100% Brand new and high quality. CH340G replace the Atmega 8U2/16U2 CH340G Driver Download link, please copy the link and paste in browser Specification: 1. Microcontroller: ATmega2560 2. Clock Speed: 16 MHz 3. EEPROM: 4 KB 4. SRAM: 8 KB 5. Flash Memory: 256 KB of which 8 KB used by bootloader 6. Operating Voltage: 5V 7. Input Voltage (recommended): 7-12V 8. Analog Input Pins: 16 9. Digital I/O Pins: 54 (of which 14 provide PWM output) 10. DC Current for 3.3V Pin: 50 mA 11. DC Current per I/O Pin: 40 mA 12. Size: 100*55mm 13. Package includes: 1 x Atmega2560-16AU CH340G ATMEGA 2560 R3 Board (A rduino-compatible) Please drop us an email for CH340G Driver Download link if you have any difficulty in getting the board recognized in your IDE

UPC: 618020768437

EAN: 0618020768437

Model: AR003-MEGA-2560-R3-CH340

Binding: Electronics

Item Condition: New
