CentIoT - LX20LYA 10s 20s 20secs Voice Recorder Chip Sound Recording Playback Module Talking Music Audio Recordable

Brand: CentIoT

Features:

• LX20 20 seconds COB megaphone IC
• The normal working voltage of the power supply is 3-4.5v,

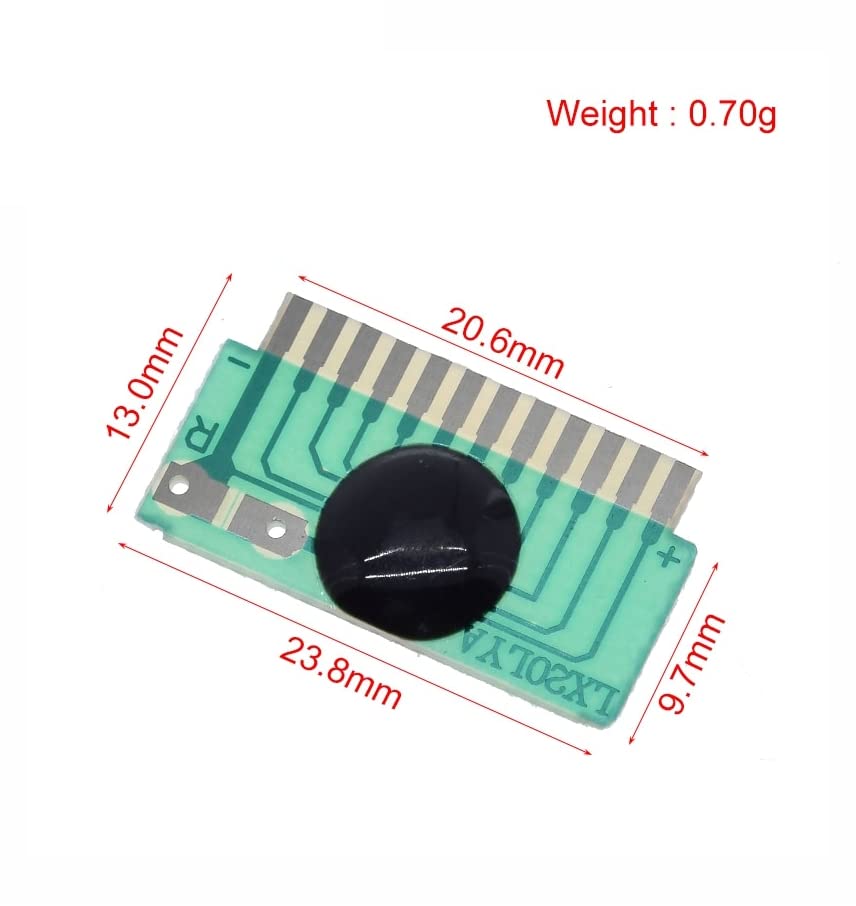

• Board size: 23 × 13mm
• The recordable time is programmable by setting ROSC resistor value

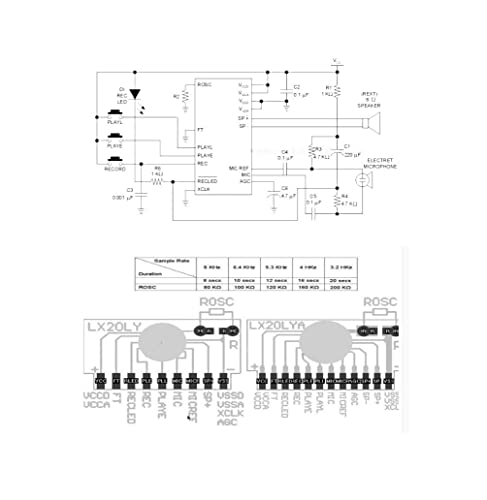

• Refer to image for ROSC values vs quality and recording time
• Factory default: 20Seconds recording function

PartNumber: LX20LYA

Model: LX20LYA

Binding: Electronics

Item Condition: New
