Featured product
Description
Brand: CentIoT
Features:
- IC: Semtech 1262; Frequency: Center 868 MHz customizable(factory) 150-960 MHz;
- Sensitivity:-148dBm @Lora; Maximum output power:22 dBm(160mW)
- Industrial grade high precision 0.5ppm TCXO Temperature compensated crystal oscillator
- Lora,(G)FSK: 256 bytes FiFo ; Data transfer rate: 0.6-300 Kbps @FSK 0.018-62.5 Kbps @Lora
- Working voltage: 1.8 to 3.7V; Recommended Voltage: 3.3V
PartNumber: LORA1262-868

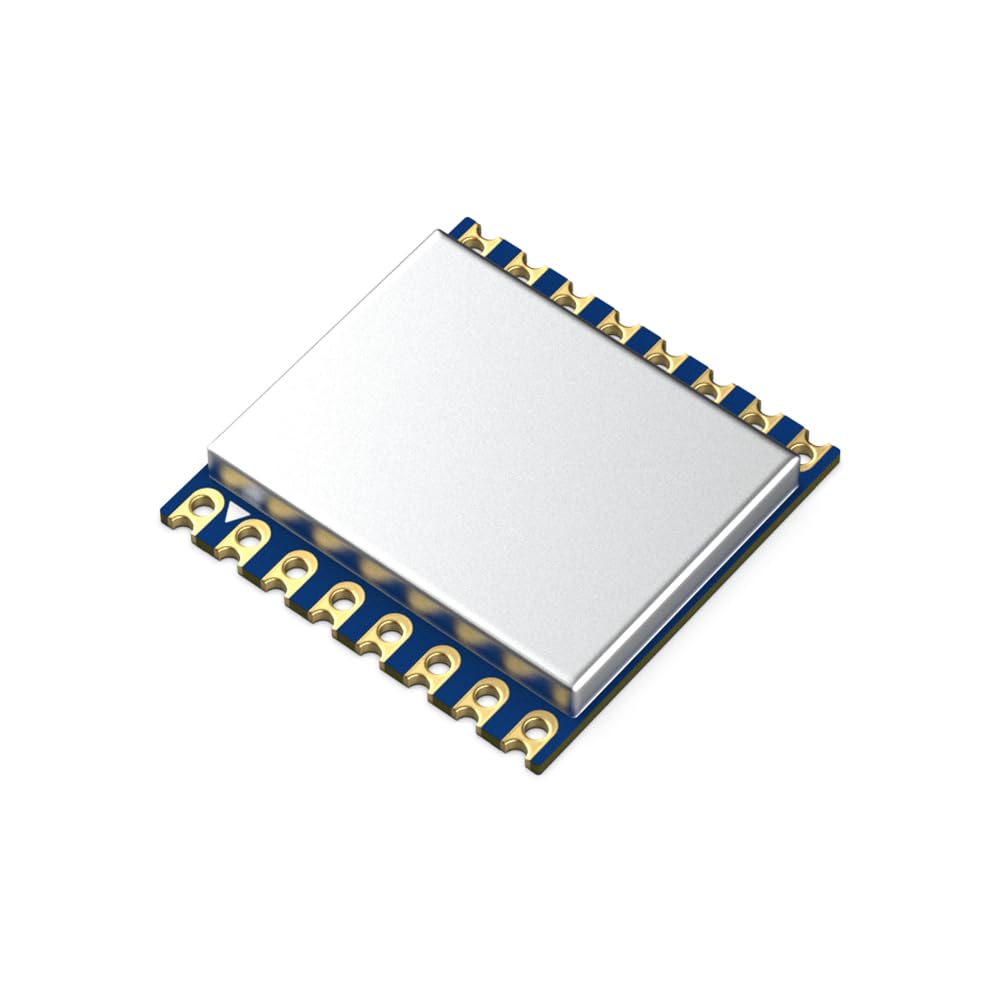

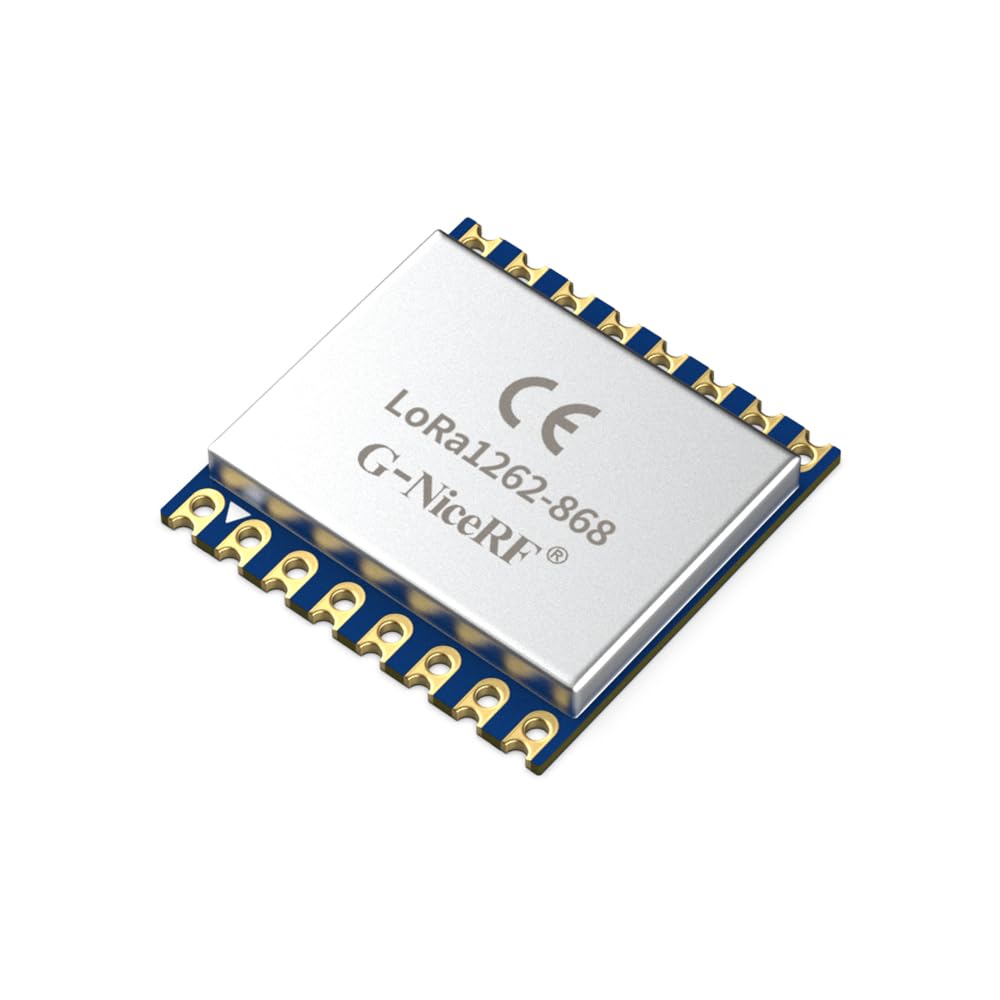

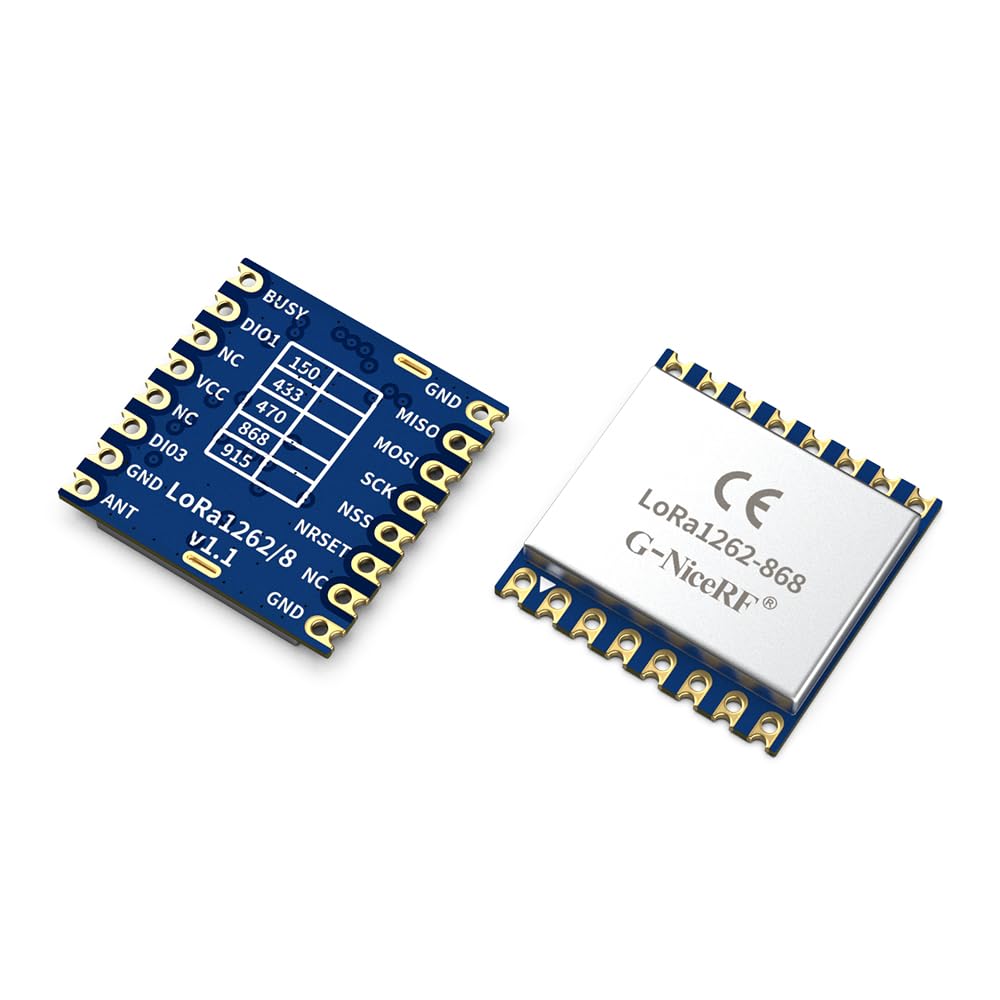

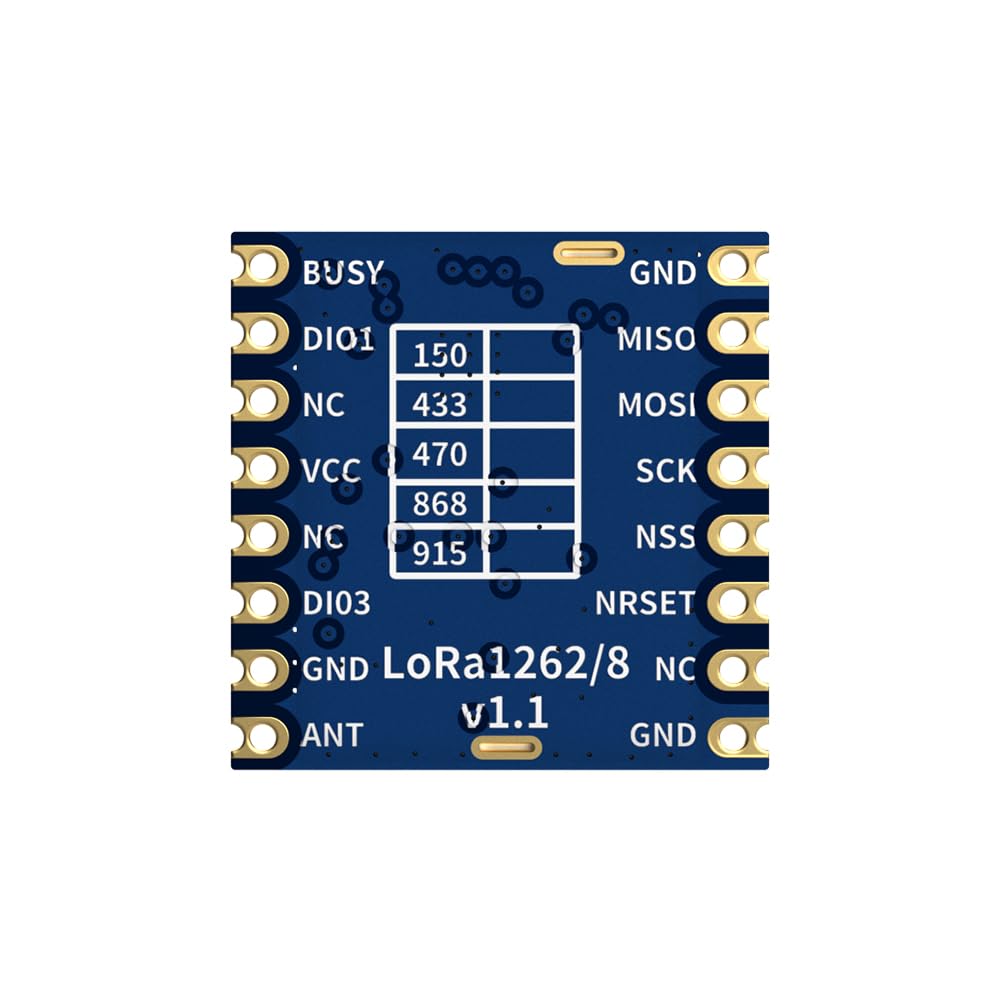

Details: The LoRa1262 LoRa module uses Semtech's SX1262 device, which uses a high-precision TCXO crystal oscillator, ultra-low receive current and sleep current, and sensitivity of -148dBm. Built-in 64KHz crystal oscillator can wake up the microcontroller periodically under low power consumption. The module antenna switch is integrated and controlled by the chip, which saves the resources of the external MCU. The compact size and 22dBm (160mW) output power have great advantages in IoT and battery-powered applications. LoRa1262-868 has obtained CE-RED certification.
Model: RF102-LORA1262-868
Binding: Electronics
Item Condition: New
