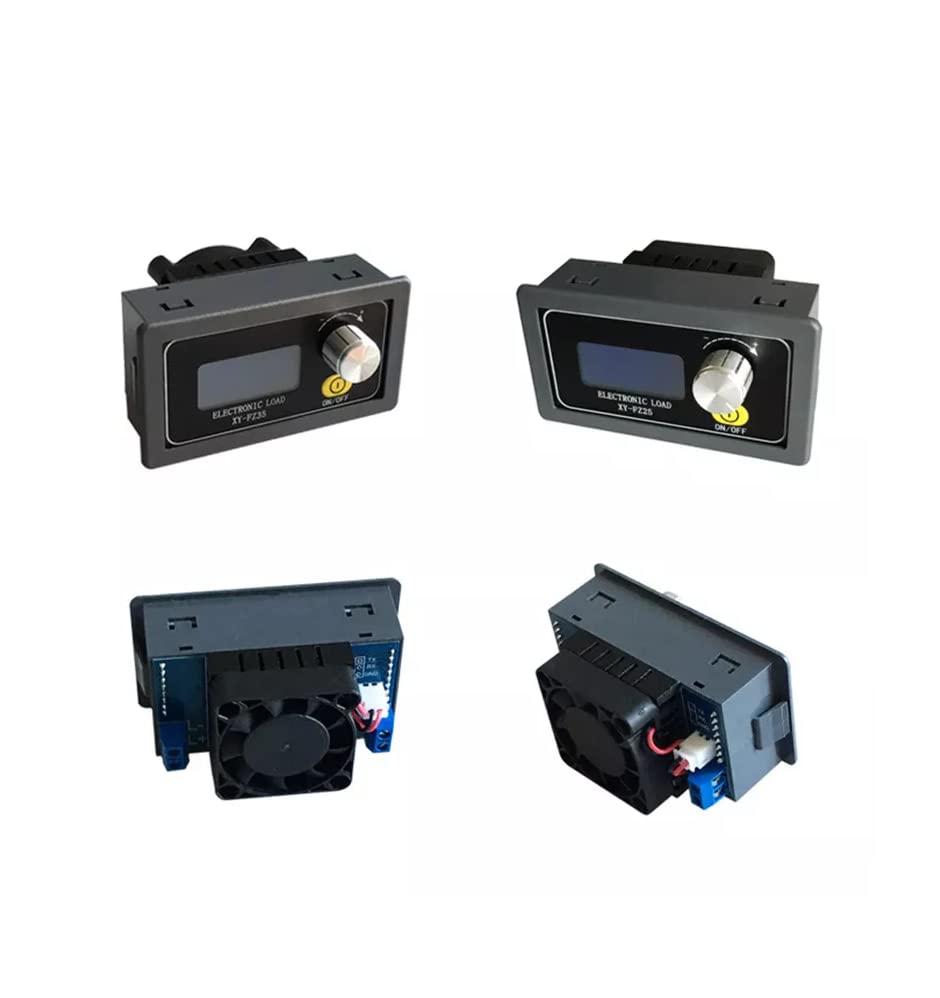

CentIoT - FZ35 5A 35W 25.2V Digital Battery Charger and Capacity Tester with Voltmeter - Adjustable Constant Current Electronic Load

Brand: CentIoT

Features:

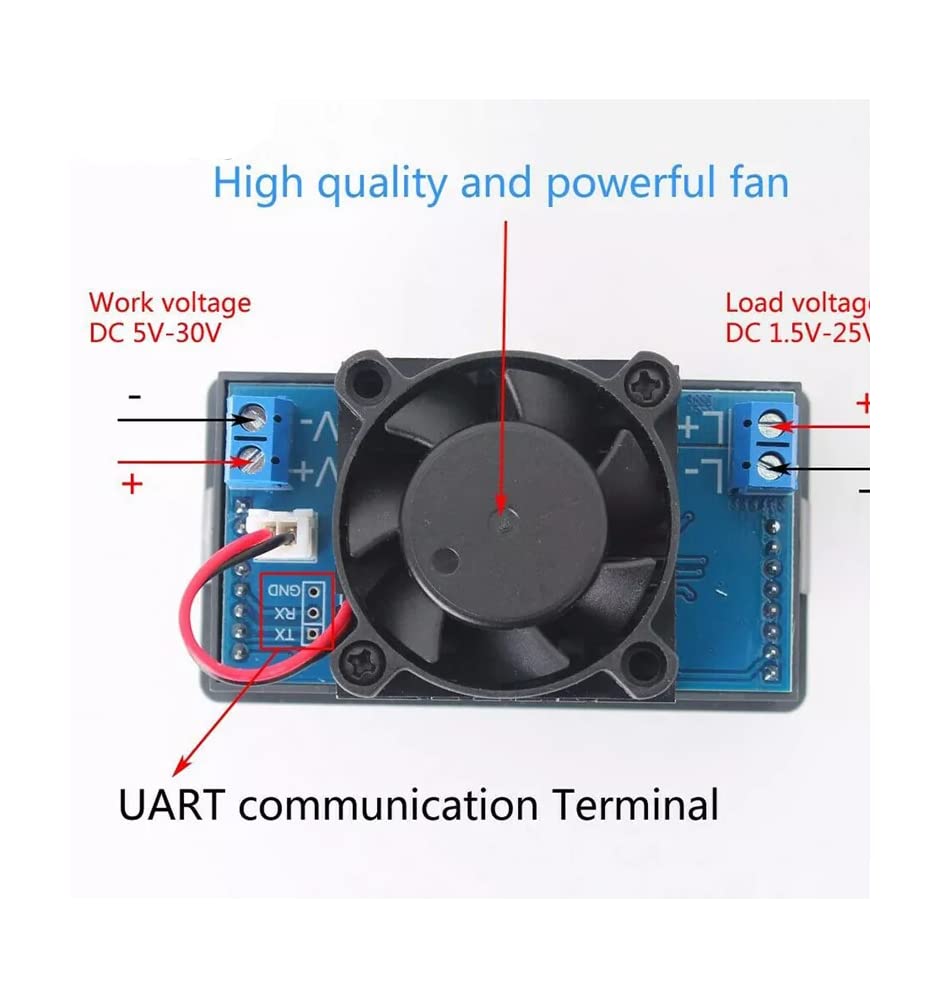

• Rated power supply: DC5-30V; Rated load voltage: DC1.5-25V
• Rated load current: 0-5A; Discharge power: 35W
• Overvoltage protection: 25.2V (can be set by yourself); Overcurrent protection: default 5.1A (can be set by yourself)
• Overpower protection: default 35.5W (can be set by yourself); Undervoltage protection: default 1.5V (can be set by yourself)

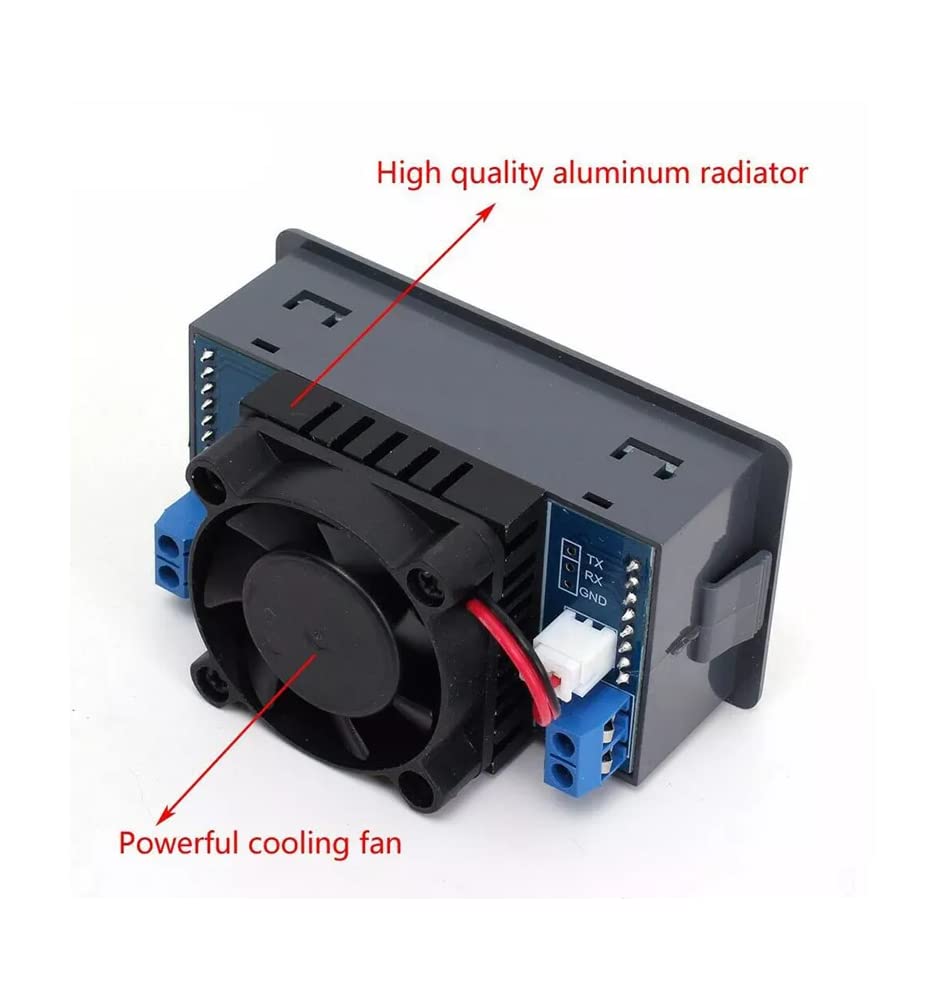

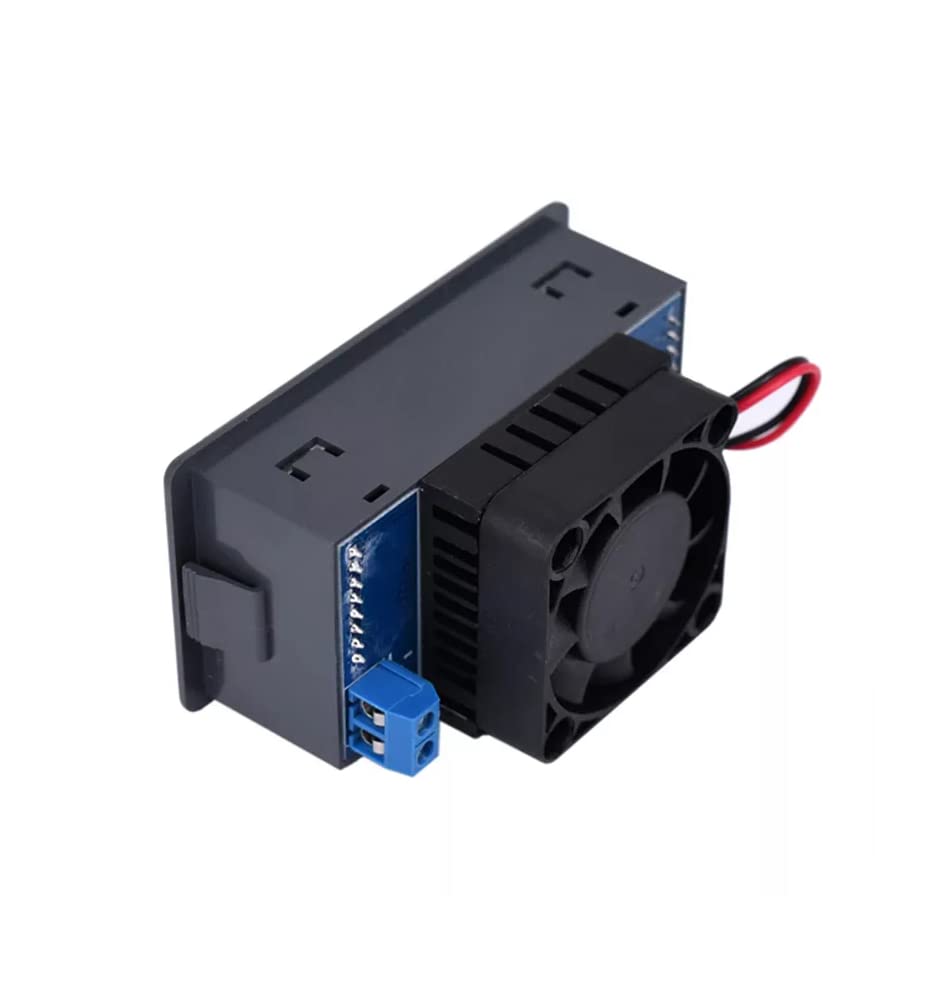

• Fan speed: Intelligent temperature-controlled fan with hydraulic bearings, speed 8000+-10%RPM

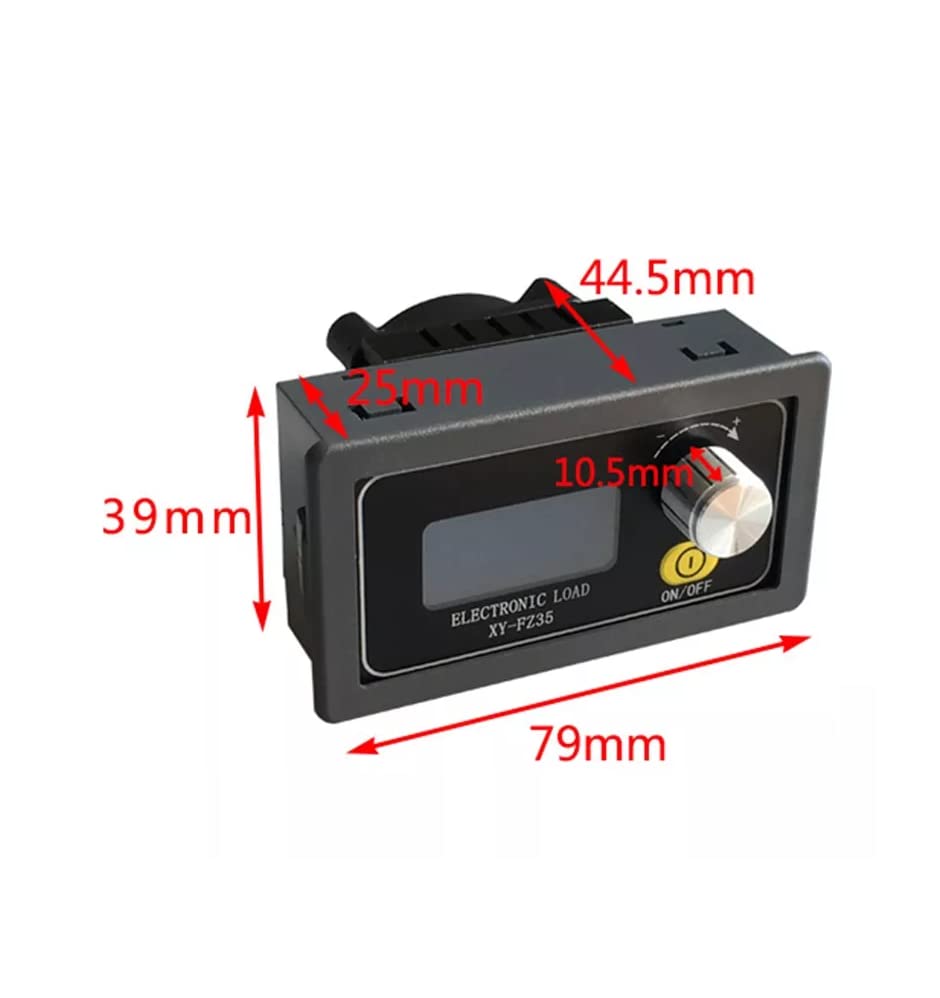

• Size: 79*43*55mm

PartNumber: BC078-FZ35-5A-35W

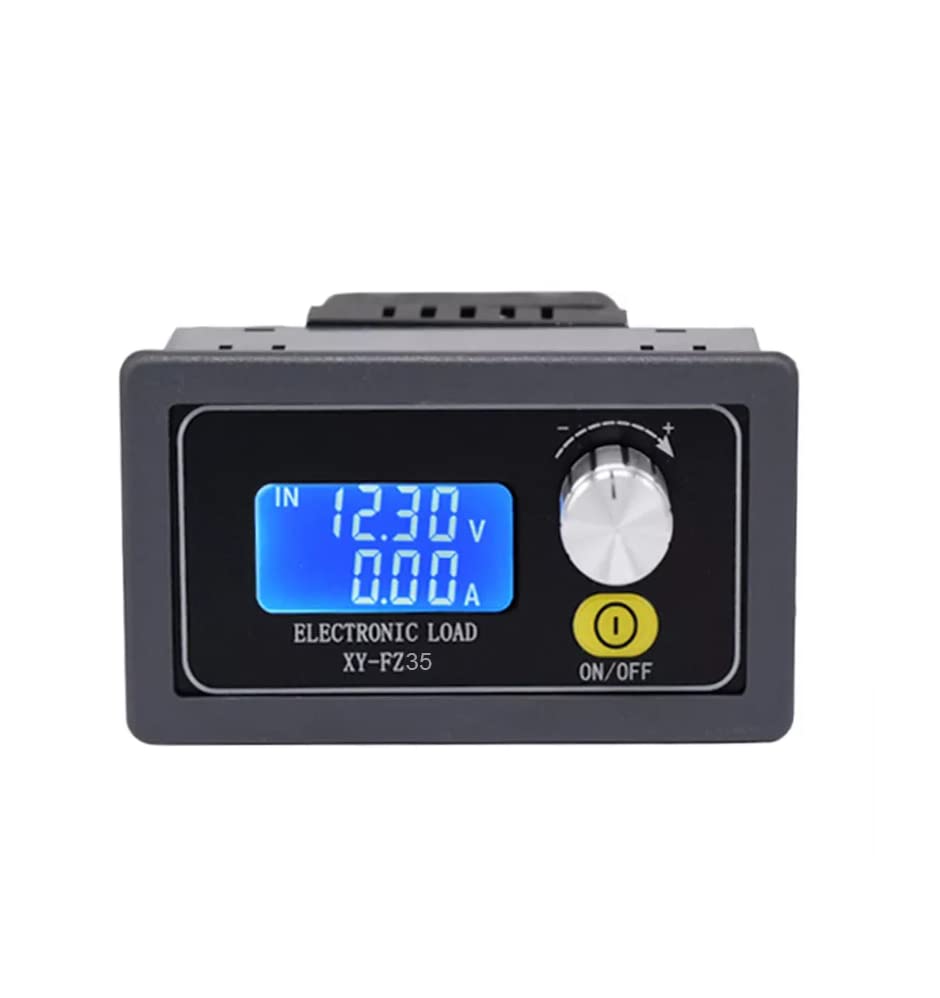

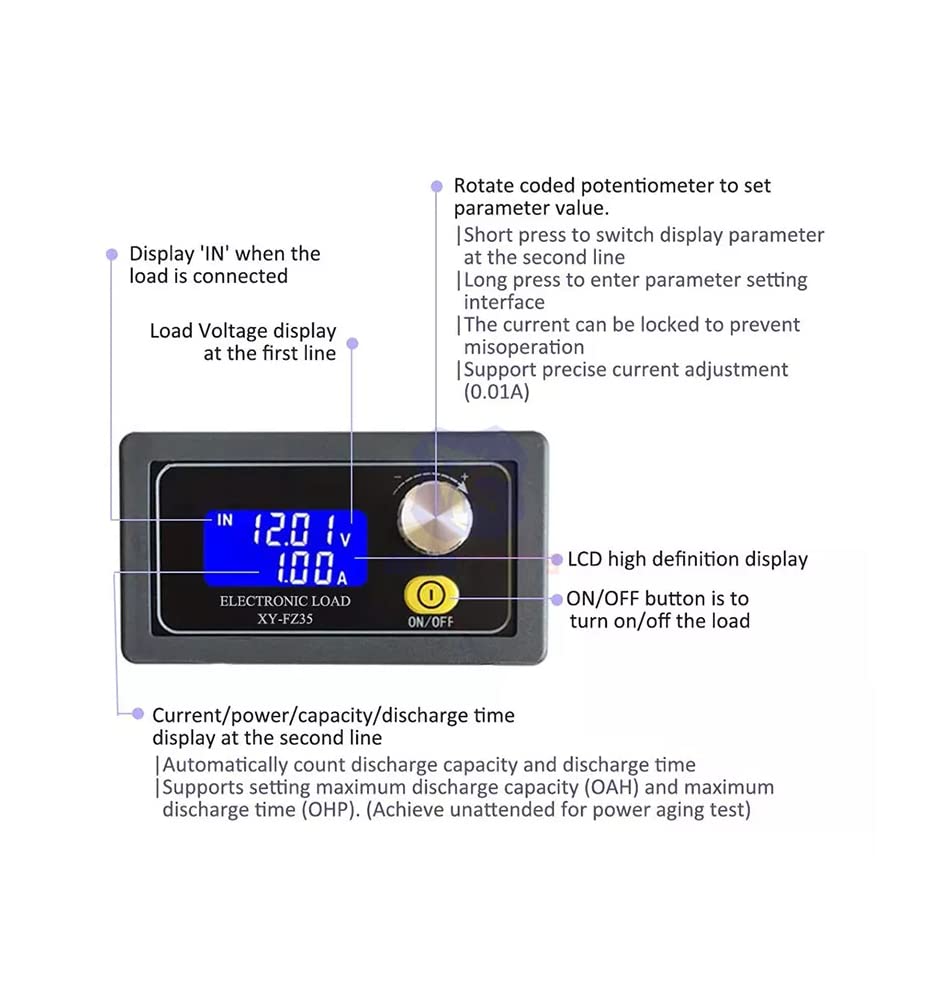

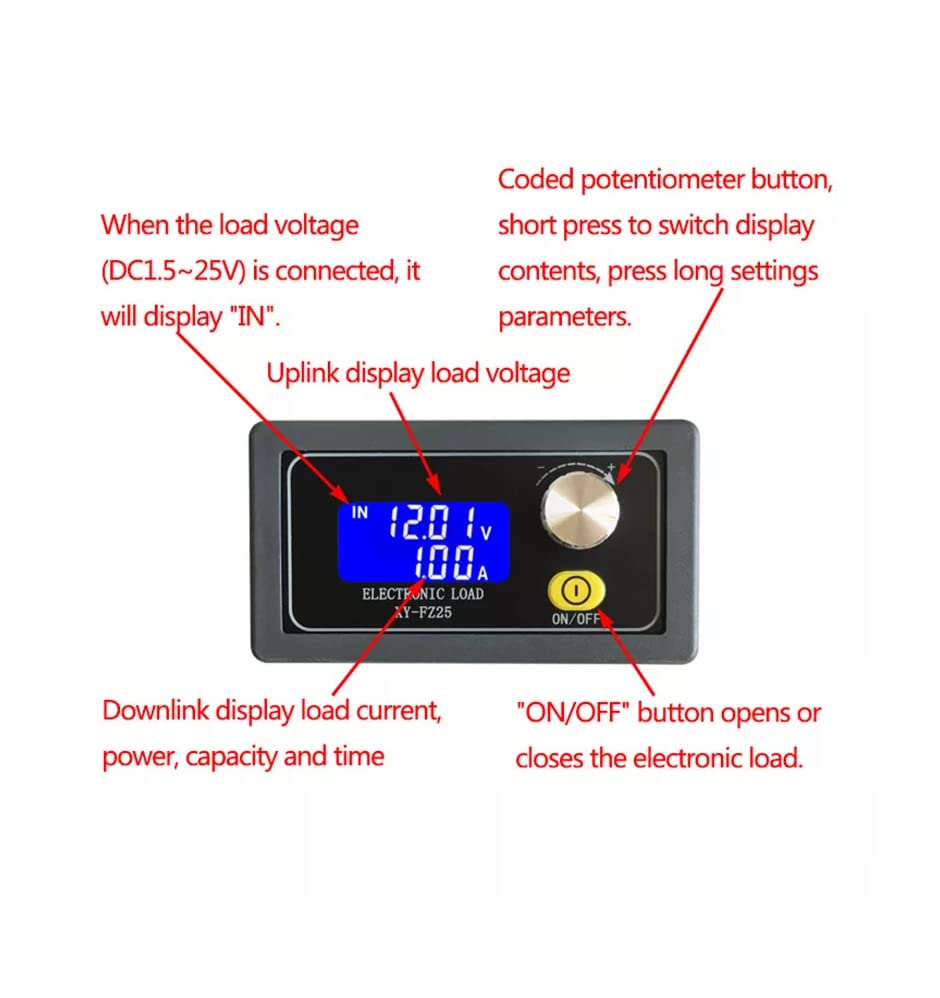

Details: Description: The industrial-grade long-life electronic load tester adopts long-life ball fan which has fast rotating speed and strong wind. It supports continuous discharging for non-stop work and suitable for long-period discharge or the factory do aging test for products. It is suitable for testing the charger's output current capability, charger batch aging test, measuring battery load capacity, etc. Feature: 1. Can display current A voltage V power W capacity Ah and discharge time; 2. Has a complete protection mechanism; 3. Automatic statistics of discharge capacity and discharge time; 4. Set discharge capacity (OAH) and discharge time (OHP); (Realize unattended power aging test) 5. Intelligent temperature control fan, the fan will start automatically when the power is greater than 10W or the temperature is greater than 40℃; 6. Using rotary encoder potentiometer, the current can be adjusted to 0.01A, the current can be locked to prevent misoperation; 7. Data group function: you can choose whether to add the capacity value and running time of one stage; 8. With powerful serial communication function.

Model: FZ35

Item Condition: New
