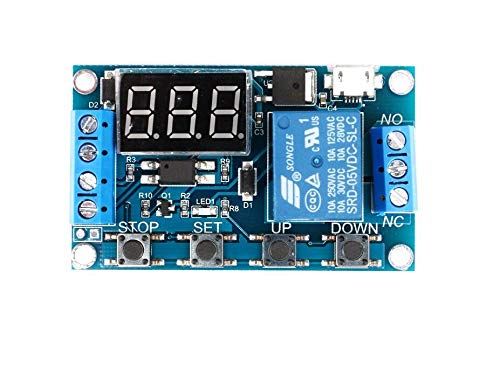

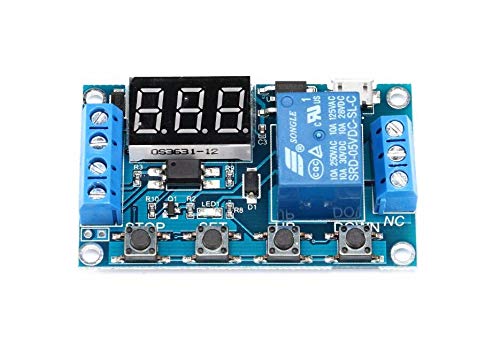

CentIoT - DC6-30V 5V micro USB Relay based Time Delay switch - timing Cycle Timer Control Switch Voltage Protection Module with LED Display

Brand: CentIoT

Color: black

Features:

• Operating voltage: 6--30V support micro USB 5.0V power supply; With optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.
• The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
• Output capability: You can control the DC or AC within 30v 5A within 220v5A;
• Quiescent Current: 20mA Operating Current: 50mA; Working temperature: -40-85 Celsius ;
• Timing range: 0.1 seconds -999 minutes continuously adjustable; vailability: more than 10 million times;

PartNumber: SWD003-T-DLY-RELAY-DISP

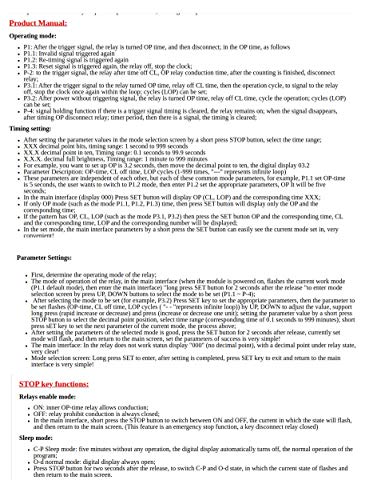

Details: Description Features: Wide voltage power supply (6 ~ 30V) supports micro USB 5.0V power supply, easy to use; The interface is clear and simple, powerful, easy to understand, meet almost all your needs; There is a key stop function (STOP key), with reverse polarity protection, reverse polarity does not burn; Increase the sleep mode, it enables, without any operation within 5 minutes, turn off the monitor automatically; any key to wake up; You can set a different OP, CL, LOP parameters, which are independent of each other, were saved; All setup parameters are saved automatically power down. Operating mode: P1: After the trigger signal, the relay is turned OP time, and then disconnect; in the OP time, as follows P1.1: Invalid signal triggered again P1.2: Re-timing signal is triggered again P1.3: Reset signal is triggered again, the relay off, stop the clock; P-2: to the trigger signal, the relay after time off CL, OP relay conduction time, after the counting is finished, disconnect relay; P3.1: After the trigger signal to the relay turned OP time, relay off CL time, then the operation cycle, to signal to the relay off, stop the clock once again within the loop; cycles (LOP) can be set; P3.2: After power without triggering signal, the relay is turned OP time, relay off CL time, cycle the operation; cycles (LOP) can be set; P-4: signal holding function if there is a trigger signal timing is cleared, the relay remains on; when the signal disappears, after timing OP disconnect relay; timer period, then there is a signal, the timing is cleared;

UPC: 679043313981

EAN: 0679043313981

Model: SWD003-T-DLY-RELAY-DISP

Item Condition: New
