Description
Brand: CentIoT
Features:

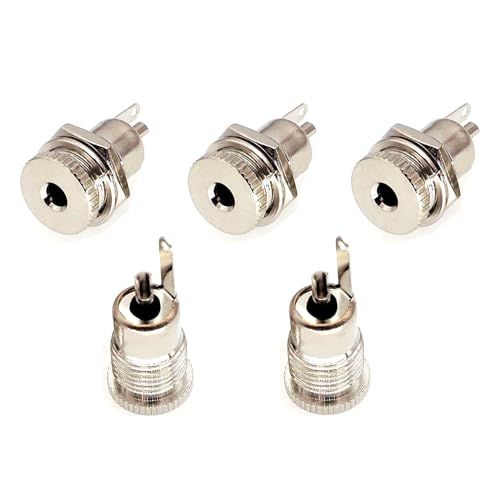

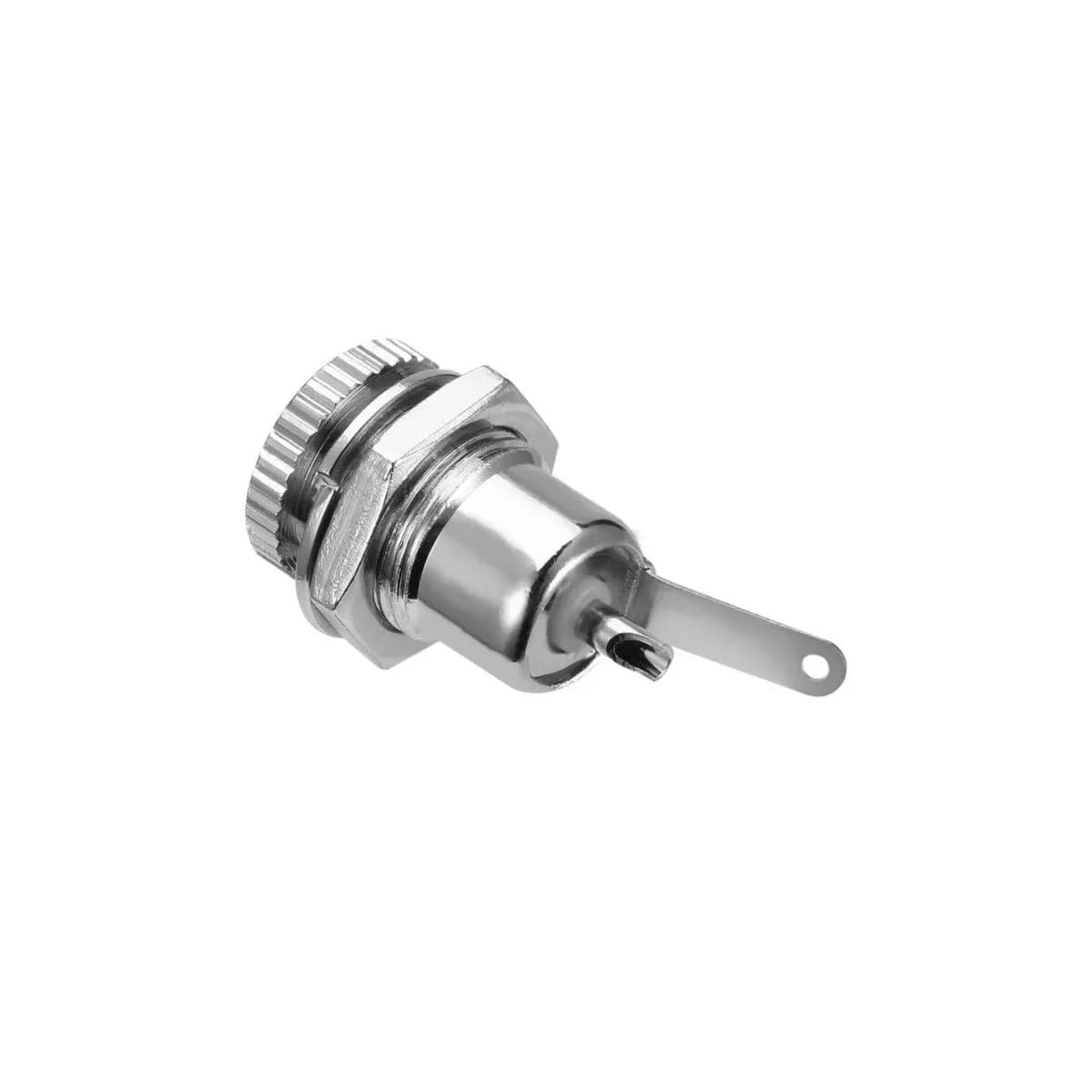

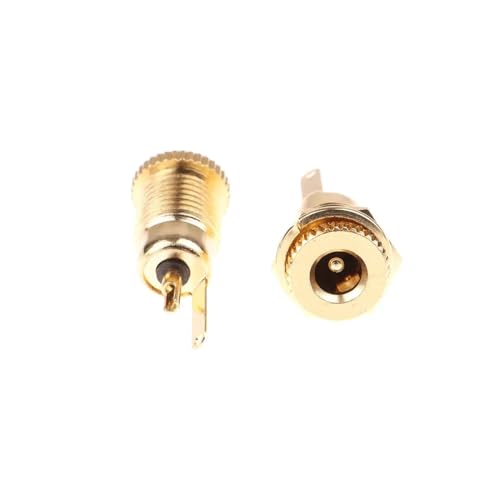

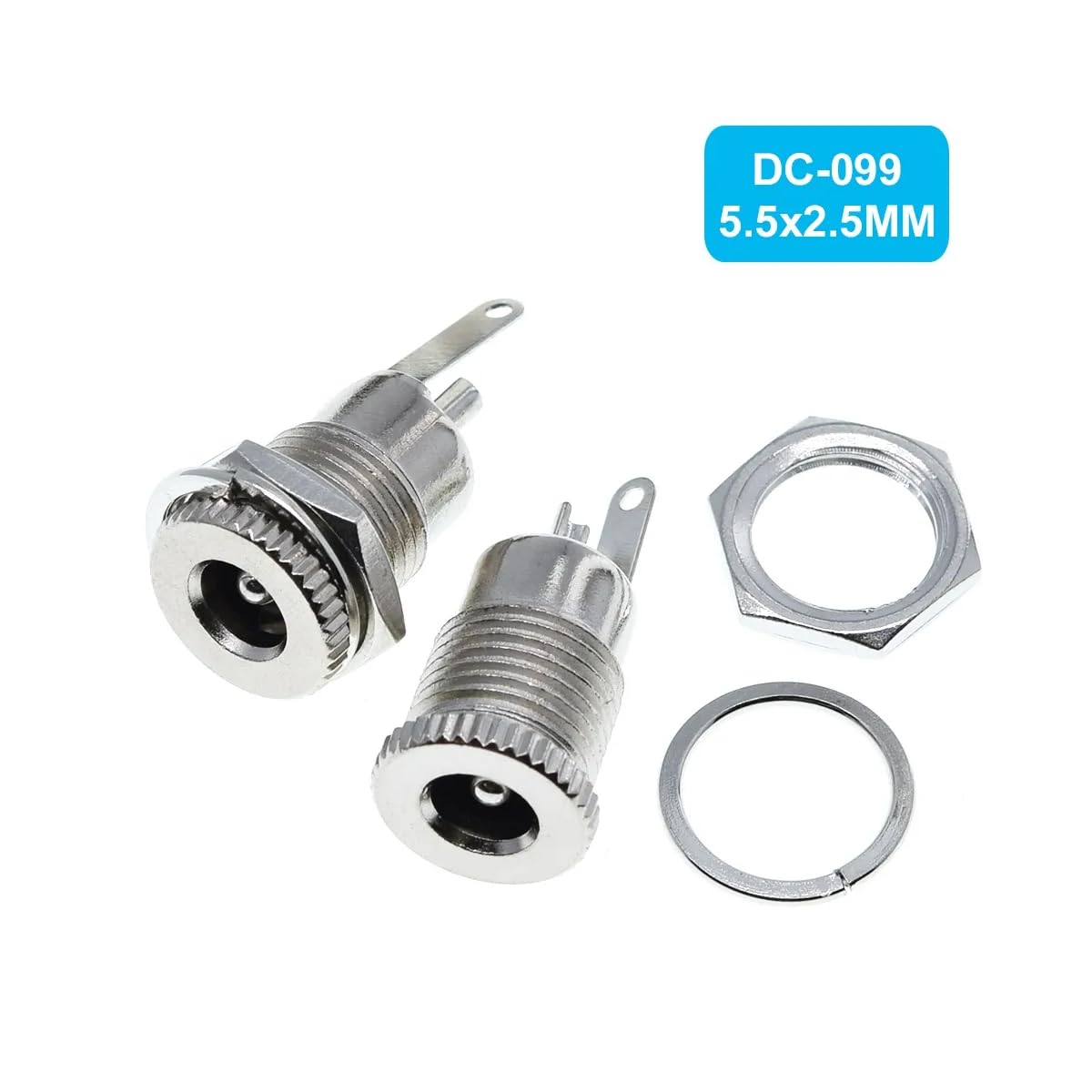

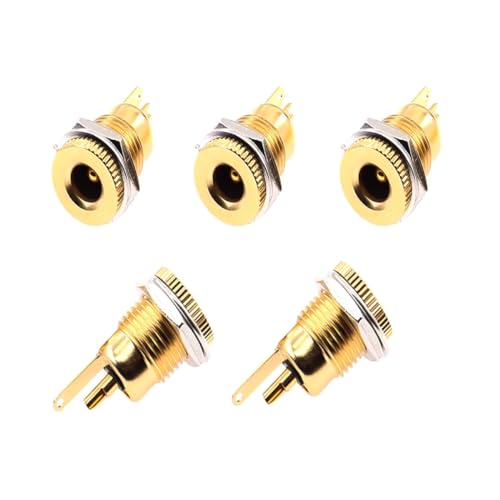

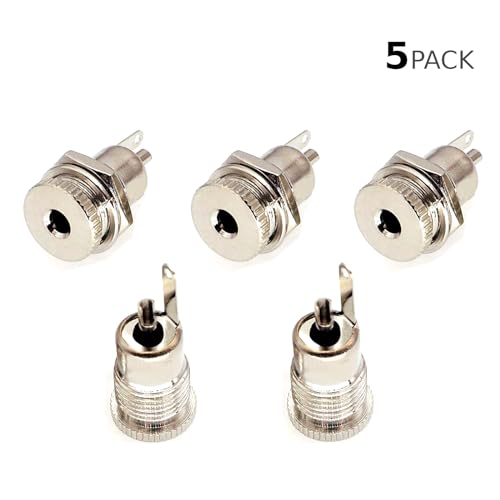

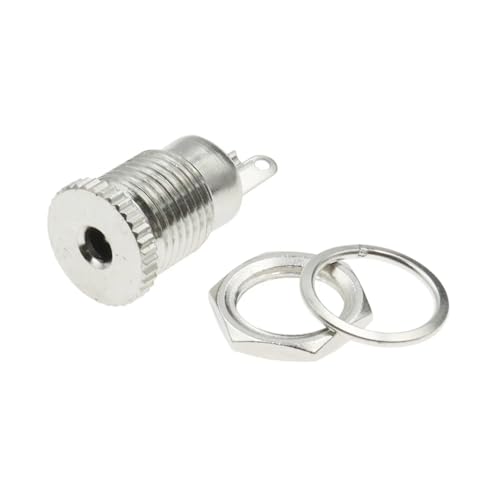

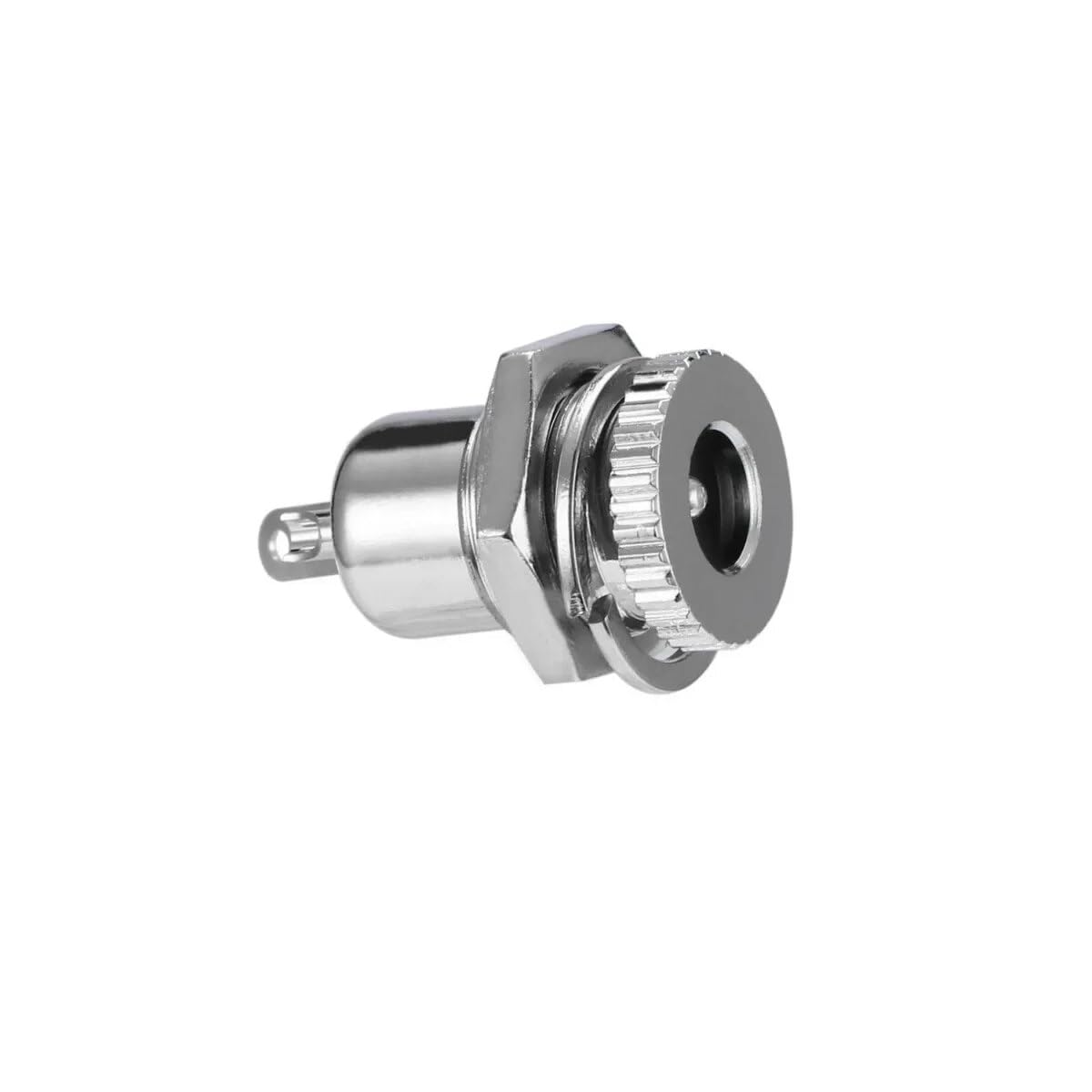

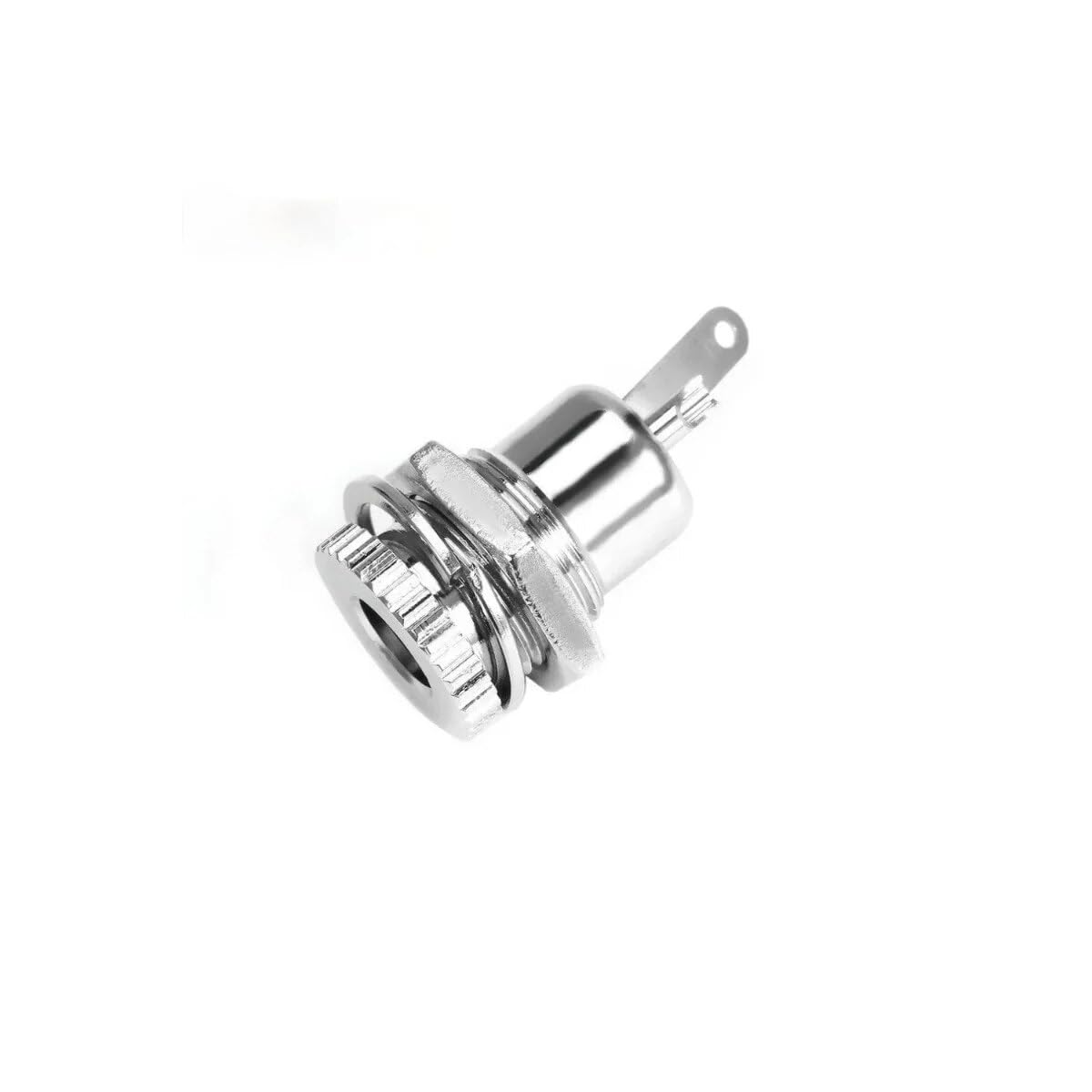

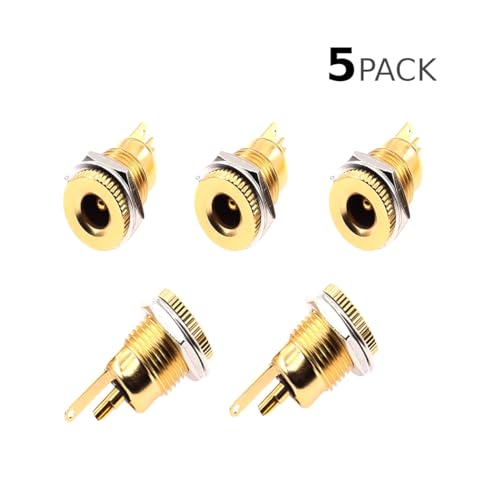

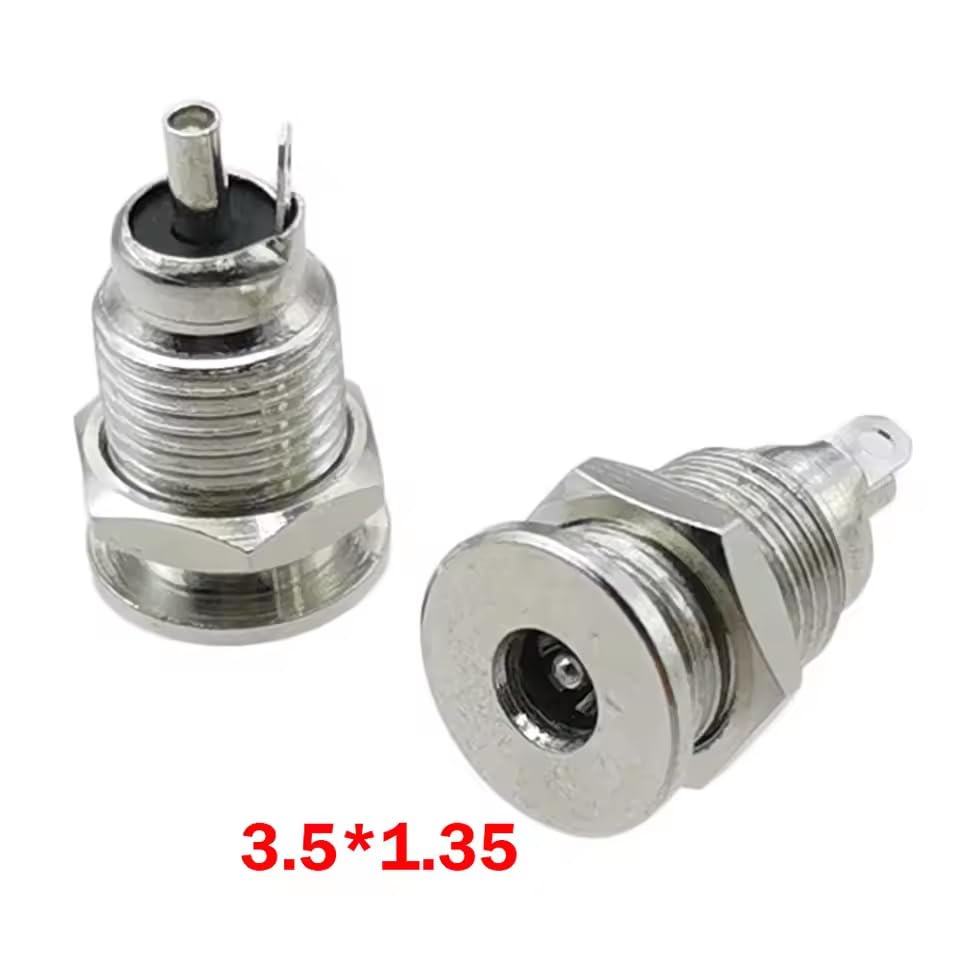

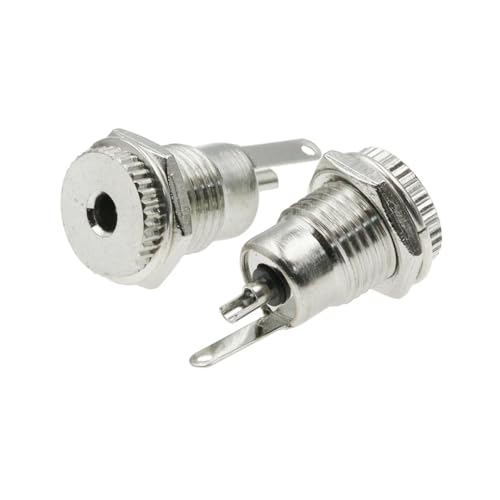

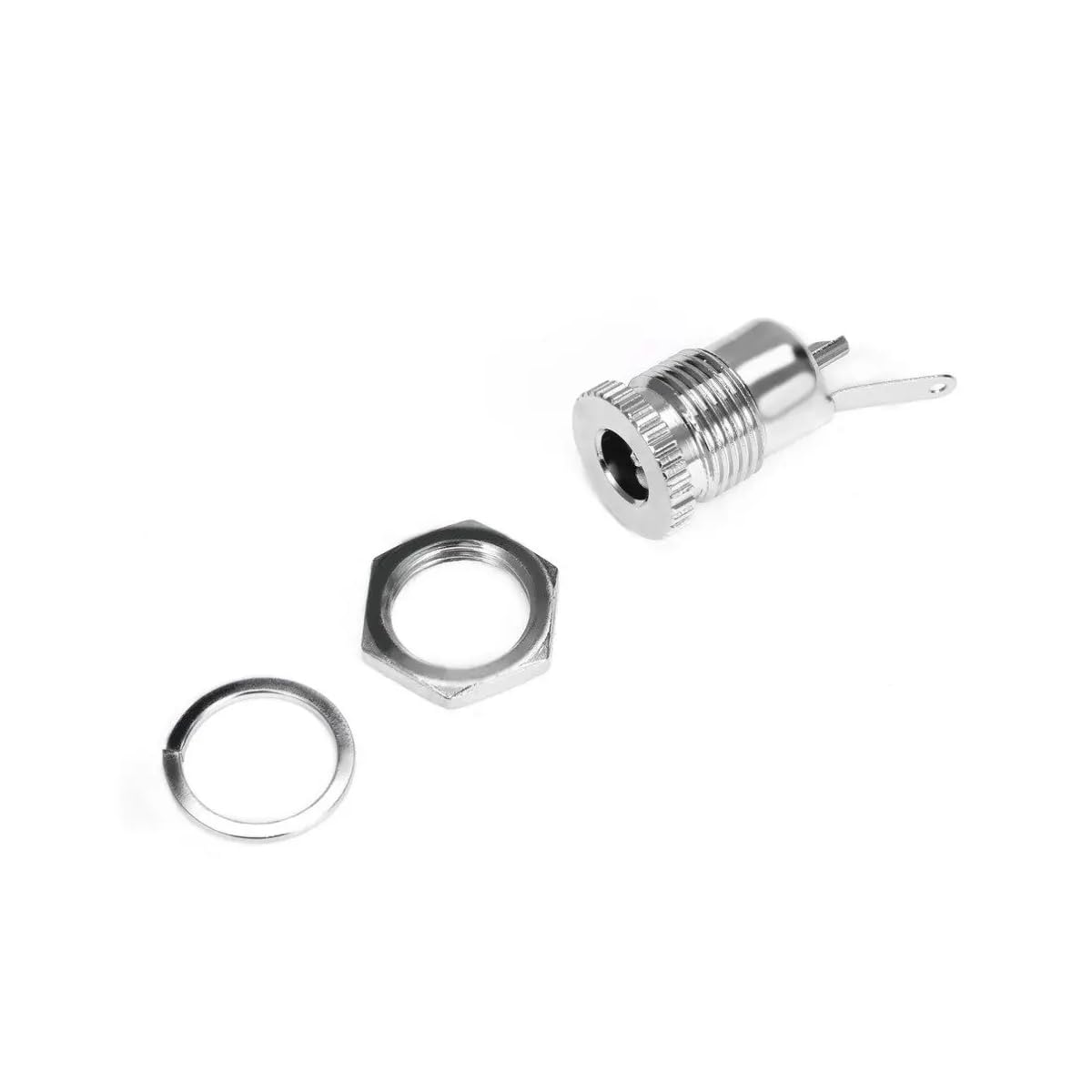

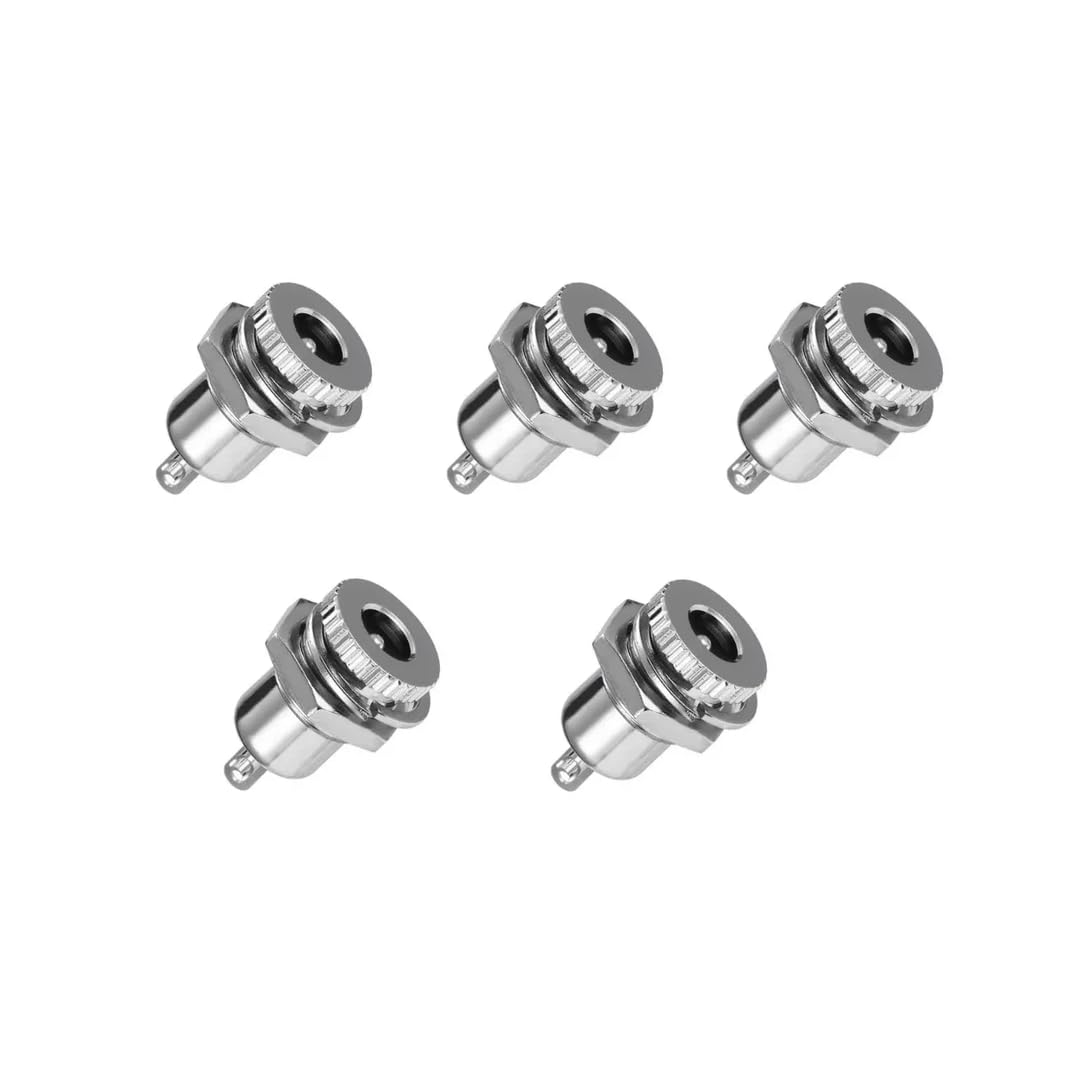

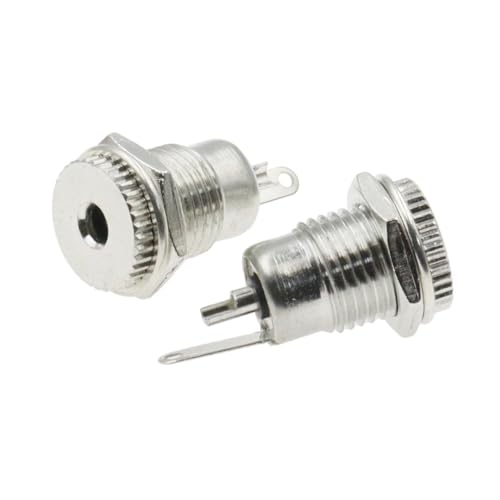

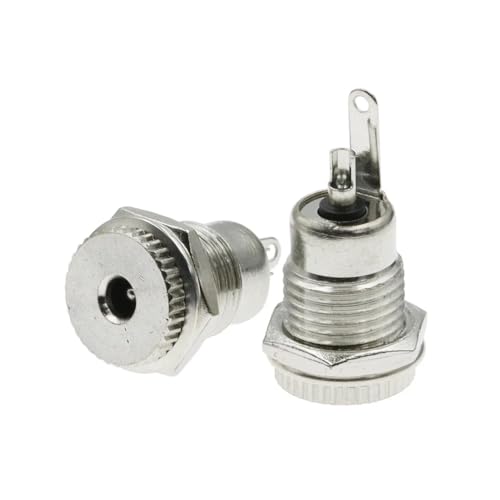

- DC Power Jakc Male Connector Full Metal - Soldering type Panel or screw mount
- Materials: Tube & Pin both copper alloy; Plastic is PBT (Black); Plating: Nickel Plated
- Rating: 8A to 10A Contact Rating: 12A@5V; 10A@12VDC; 8A@48VDC
- Salt Spray Test Time: 12 hours to 72 hours; WITHSTAND VOLTAGE:AC 500V(50HZ)min;

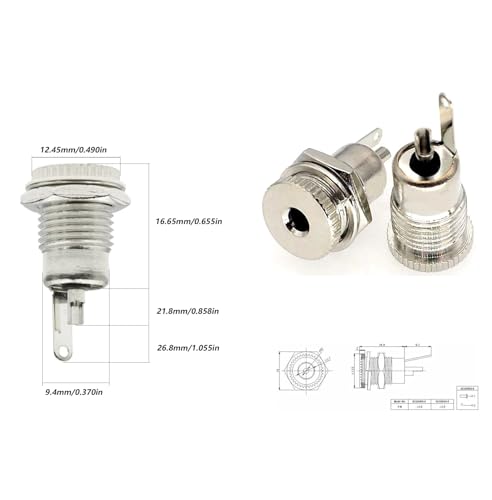

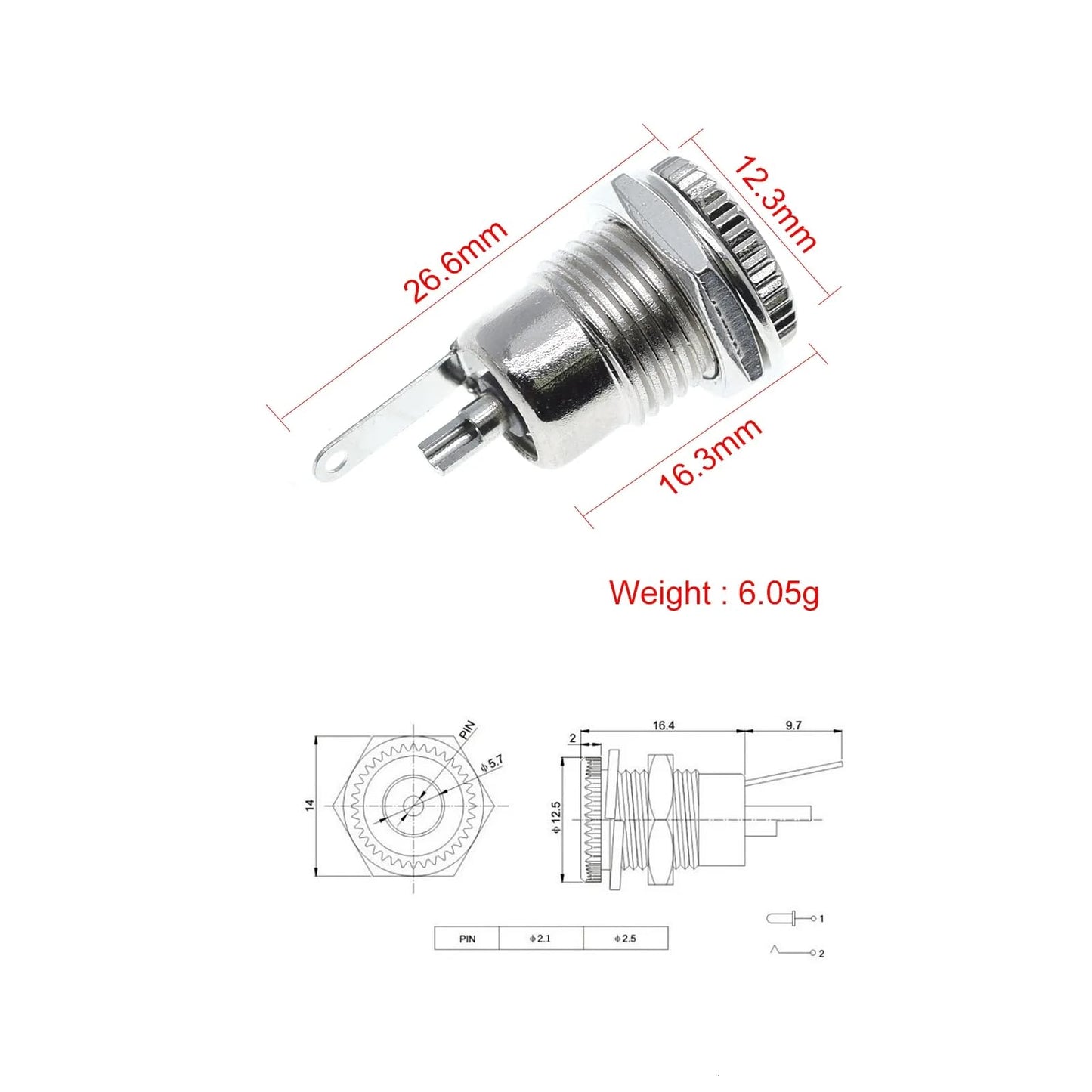

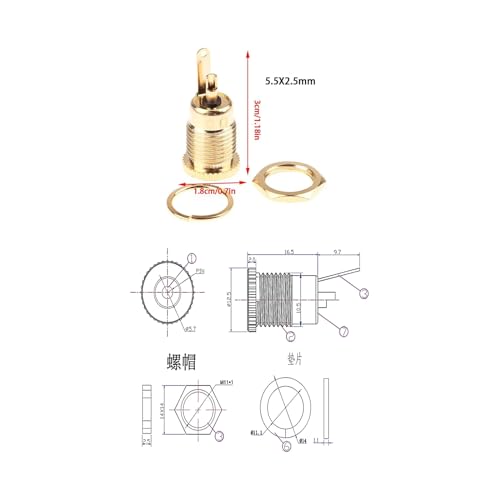

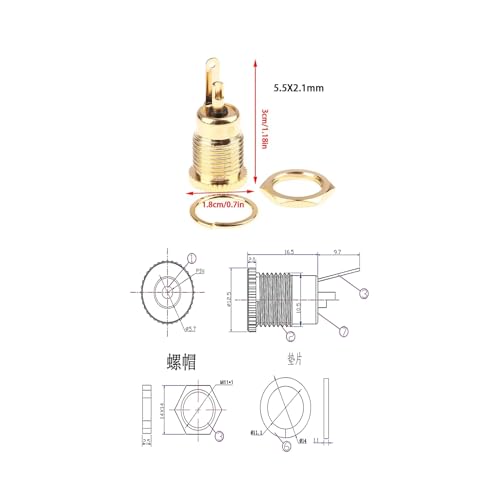

- Overall Length: 30mm; Outer Diameter: 5.5mm; Pin Diameter:2.1mm; Case length needed: 35mm
- INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥100MΩ
