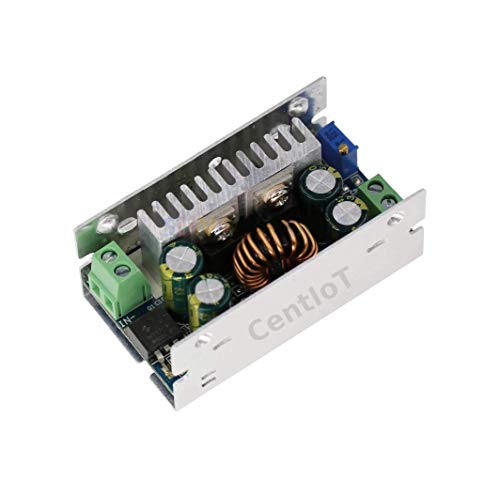

CentIoT - DC DC 15A 200W 48V 60V Adjustable Step Down Buck Converter Stabilized Synchronous Rectification

Brand: CentIoT

Features:

• Input voltage: 8 to 60V; Input Current: 15A MAX, Over 8A replace existing heatsink with bigger heatsink and fan to enhance heat dissipation, 2. Related to the input and output voltage difference, the greater voltage difference is, the higher output current will be
• Output voltage 1-36V continuously adjustable;
• Output current: 15A MAX, Over 8A replace existing heatsink with bigger heatsink and fan to enhance heat dissipation
• Input power: 150W, peak 200W, Input voltage * load current (less 5% loss due to efficiency)
• Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, currently exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current.);Short circuit protection:Yes, recommended adding 20A fuse to increase protection.; Input reverse polarity protection: Reverse Input Protection: Yes (150A power MOS reverse protection); Input Low Voltage Protection: Yes (10V-50V adjustable, self-recovery);

PartNumber: DC067-200W-15A-60V-BUCK

Details: Adopt highly customized radiator, rational design Integrated design of radiator and step-down panel, easy to use and install. Using 27mm Kool inductor toroid ring, 1mm double wire wound inductors, high-quality filter capacitor. Widely used in adjustable output vehicle power supply DIY, universal car laptop power supply, power supply for electronic devices, etc. 200W DC-DC high voltage power synchronous buck module 8-60V wide voltage input 1-36V stepless adjustable output The maximum peak output current 15A Perfect ultra-efficient circuit design up to 94% Low Ripple Type: Non-isolated step-down module (BUCK) Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12" Input voltage: 8-55V (limit 60V, please leave allowance) Output voltage: 1-36V continuously adjustable (the default output 12V) Output Current: Normal 10A , MAX15A Output power: natural cooling ventilated long-term power 100W Enhance heat dissipation to reach power up to 200W Operating temperature: -10 to +85 degrees Operating frequency: 180KHz Conversion efficiency: up to 94% Overcurrent protection: Yes (the output current exceeds (15A) current maximum short duration protection only) Reverse polarity protection: (reverse does not burn)

UPC: 369639161064

EAN: 0369639161064

Model: DC067-200W-15A-60V-BUCK

Item Condition: New
