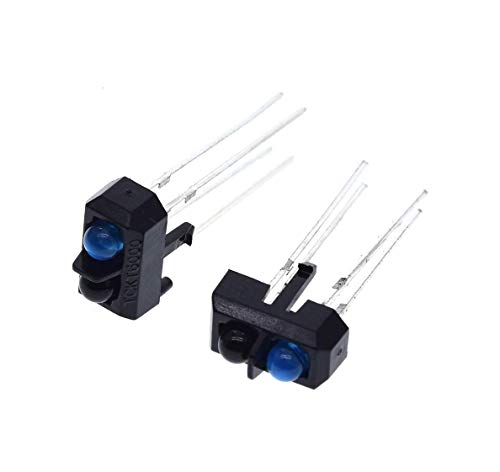

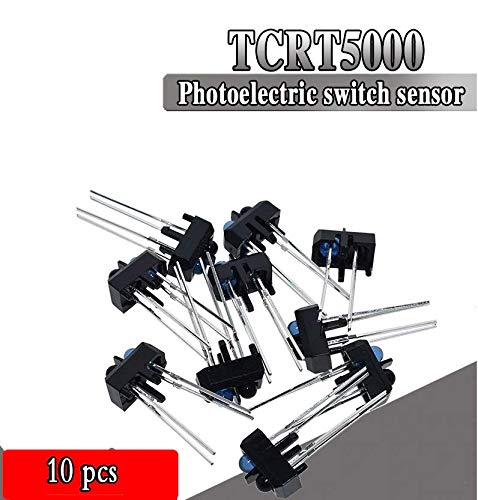

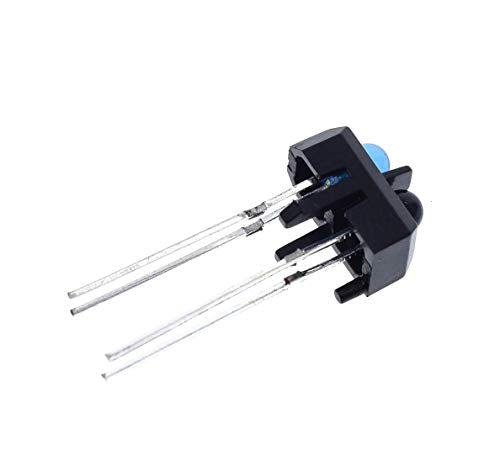

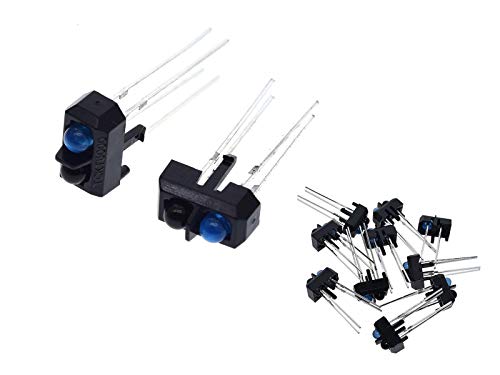

CentIoT - 10PCS TCRT5000 TCRT5000L IR LED Infra red Reflective Optical Sensor with Transistor Output

Brand: CentIoT

Color: Infra Red

Features:

• Package type: leaded; Detector type: phototransistor Peak operating distance: 2.5 mm Operating range within > 20 % relative collector current: 0.2 mm to 15 mm
• Typical output current under test: IC = 1 mA Daylight blocking filter Emitter wavelength: 950 nm Lead (Pb)-free soldering released
• INPUT (EMITTER): Reverse voltage VR 5 V; Forward current IF 60 mA; Forward surge current tp ≤ 10 µs IFSM 3 A; Power dissipation Tamb ≤ 25 °C PV 100 mW; Junction temperature Tj 100 °C
• OUTPUT (DETECTOR): Collector emitter voltage VCEO 70 V; Emitter collector voltage VECO 5 V; Collector current IC 100 mA; Power dissipation Tamb ≤ 55 °C PV 100 mW; Junction temperature Tj 100 °C
• SENSOR: Total power dissipation Tamb ≤ 25 °C Ptot 200 mW; Ambient temperature range Tamb - 25 to + 85 °C; Storage temperature range Tstg - 25 to + 100 °C; Soldering temperature 2 mm from case, t ≤ 10 s Tsd 260 °C

PartNumber: TCRT5000L

Details: The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version. APPLICATIONS Position sensor for shaft encoder Detection of reflective material such as paper, IBM cards, magnetic tapes etc. Limit switch for mechanical motions in VCR General purpose - wherever the space is limited Automatic Hand Sanitizer COVID sanitzation products

UPC: 679043312212

EAN: 0679043312212

Model: TCRT5000L

Item Condition: New
