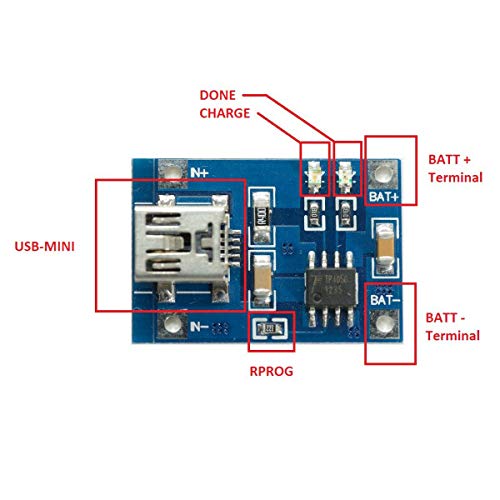

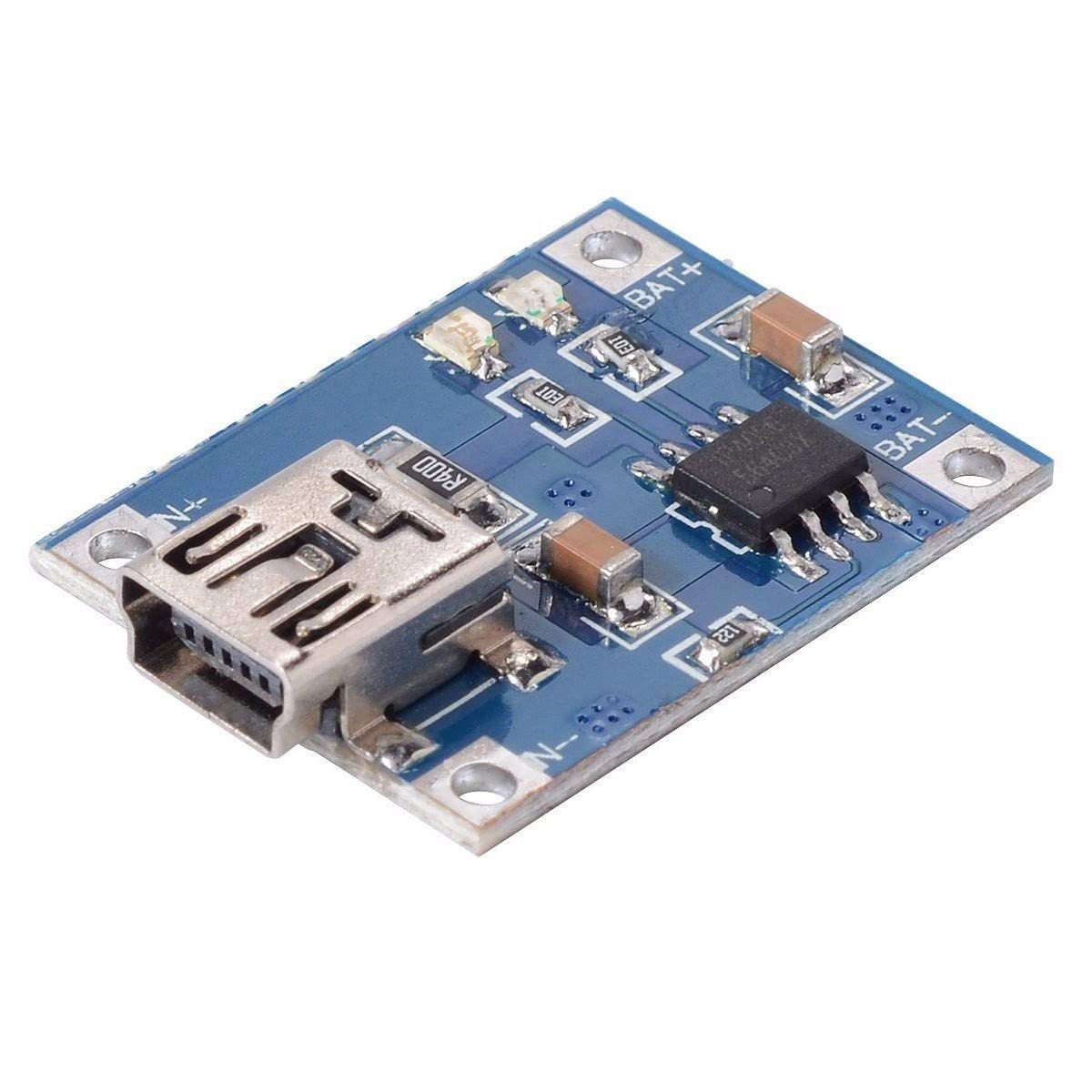

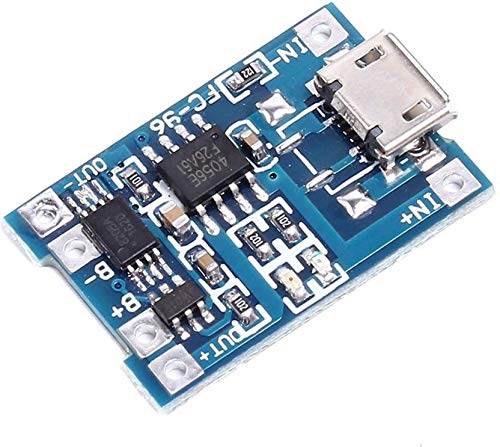

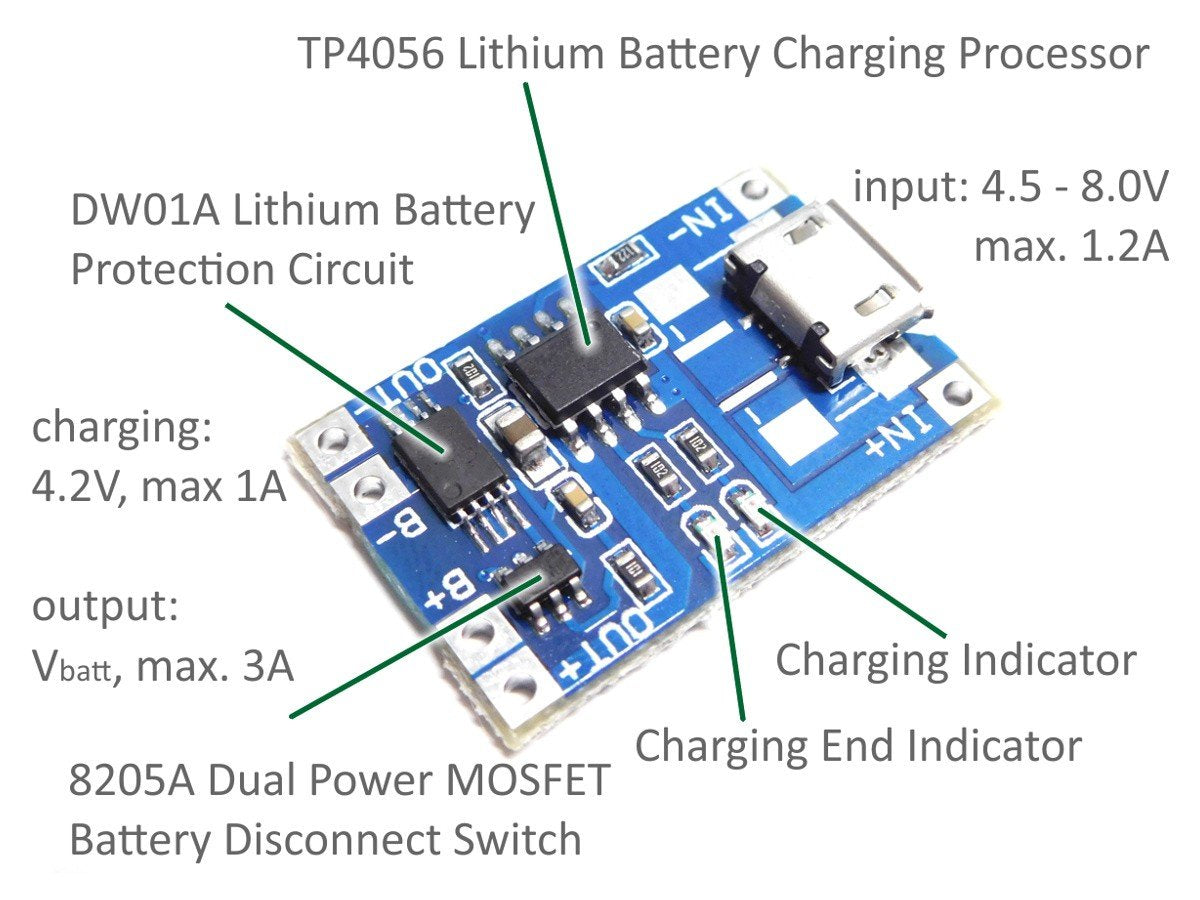

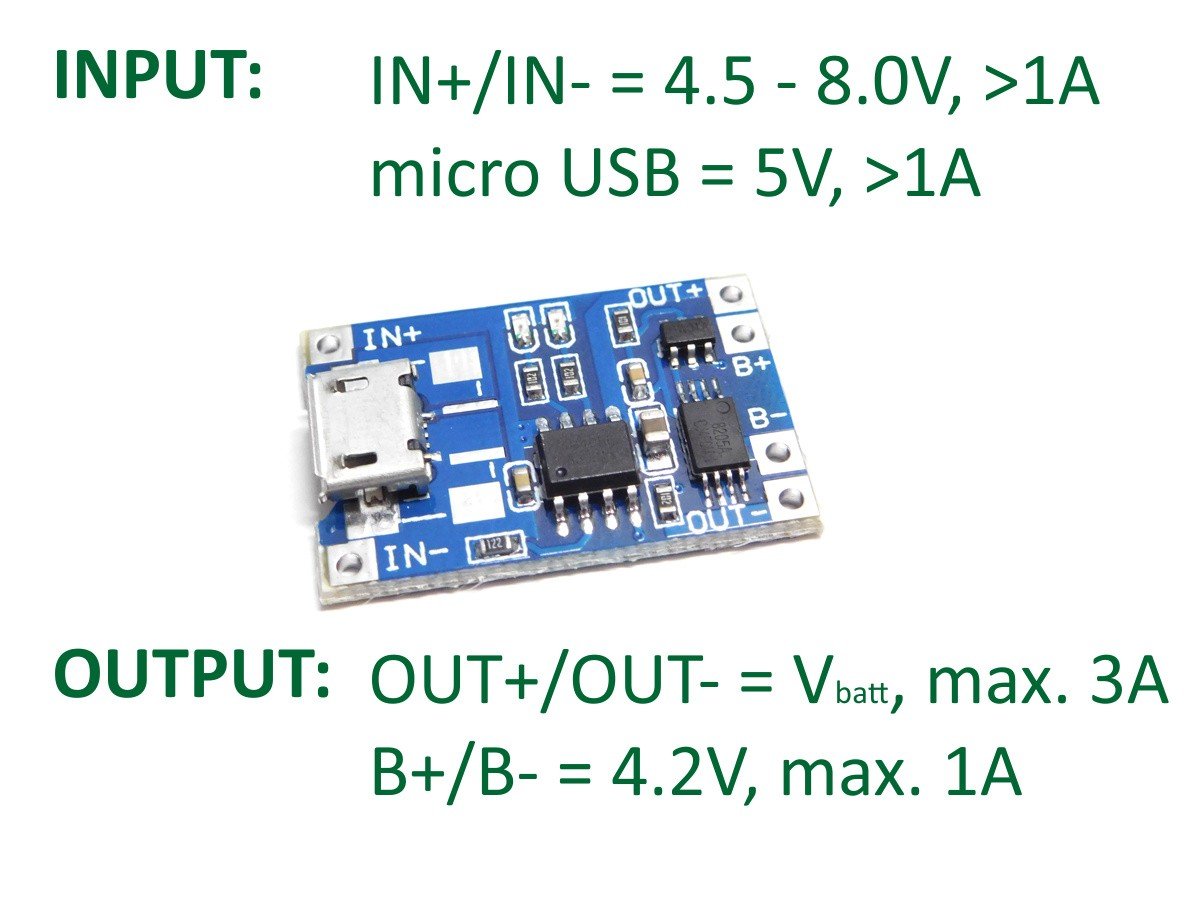

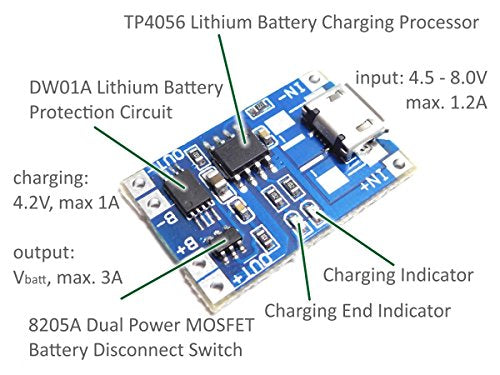

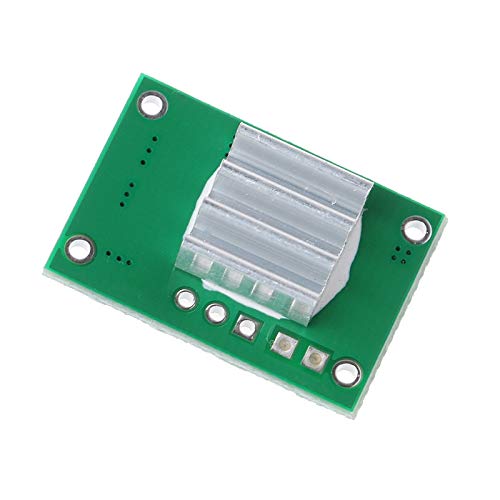

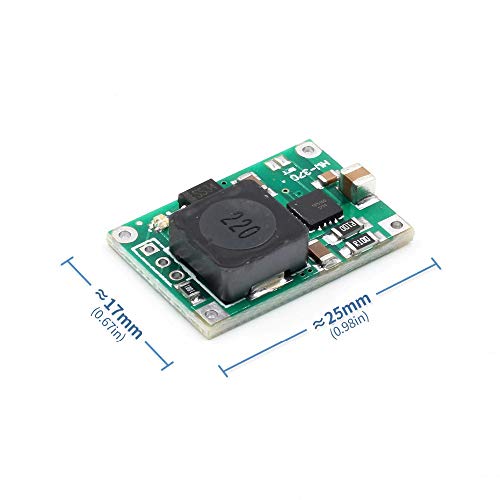

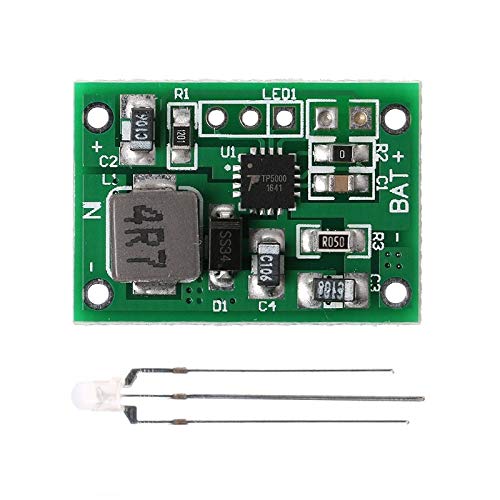

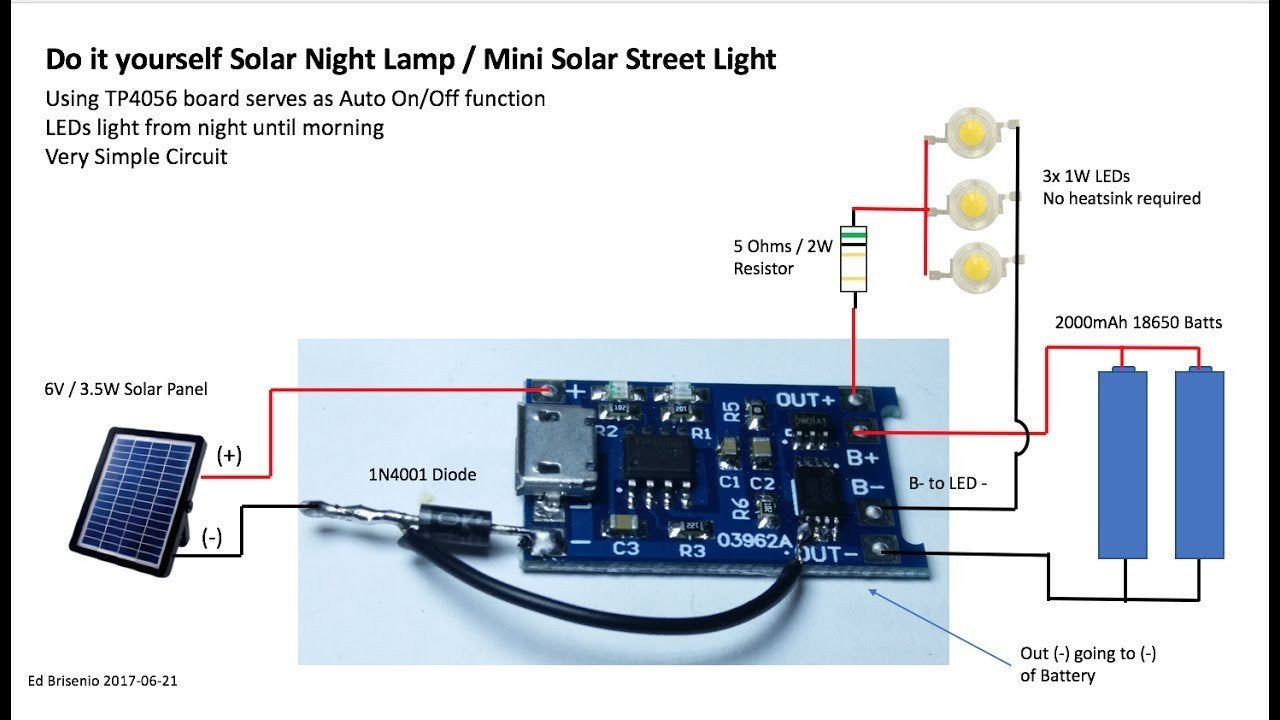

CentIoT® - TP4056 Li-ion Lithium Battery Charging Module Charging Board Charger TP 4056

Brand: CentIoT

Features:

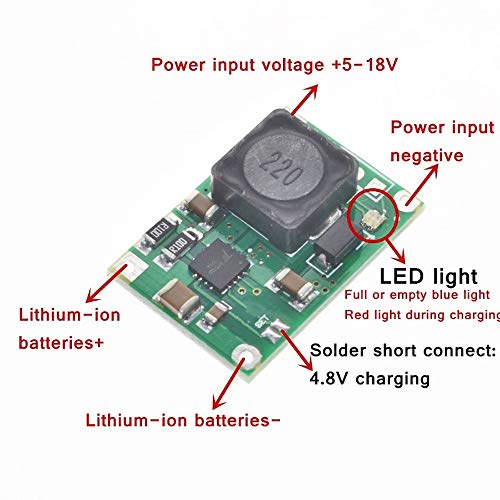

• Charge module: Double 8.4v / single 4.2v lithium rechargeable single (Two batteries in Series or Single battery the module support both)
• Charge current. 0. 1A - 2A; Input voltage: 5-18V DC power supply , maximum reach I8V - Red and green LED charge status indicator
• Chip temperature protection, overcurrent protection, undervoltage protection - Battery temperature protection, reverse battery shutdown, short circuit protection
• Maximum charge current: 2000mA; Chip Select SET Terminal: Short the terminal for 8.4V 2 Cell Setting, Default: Open Terminal 4.2V Charge Cut-off (Single Cell)
• Switching frequency 400Khz, usable inductance 20uH and more - PWR_ON Power battery for switching control

PartNumber: TP4056

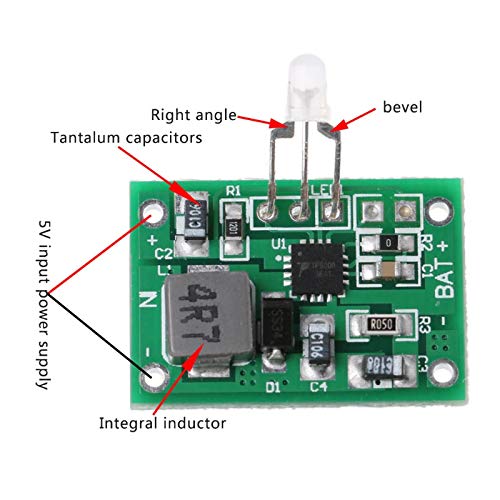

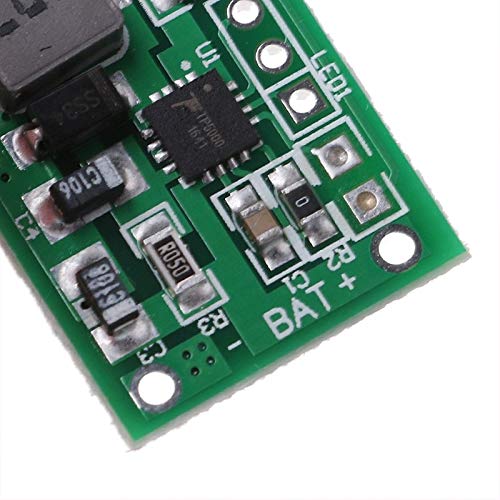

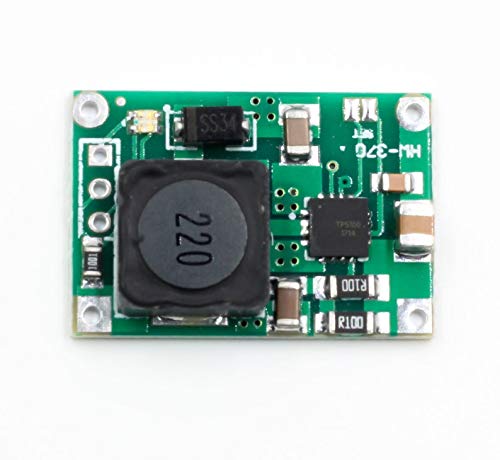

Details: Description TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection. TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat. Specification: 1. TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode. 2. Maximum Ratings: Static input supply voltage (VlN): 20V (5 to 18V recommended) 3. BAI: -8.4V-20V 4. BAT Short-Circuit Duration: Continuous 5. Operating environment Temperature range: -40 ℃ -85 ℃ 6. Storage temperature range: -65 ℃ - 125 ℃ 7. Default shipping settings: 4.2V 2A 8. Short the set terminals to enable 8.4V mode 9. The board has on-board LED, and reserve position for external LED's

Model: TP4056
